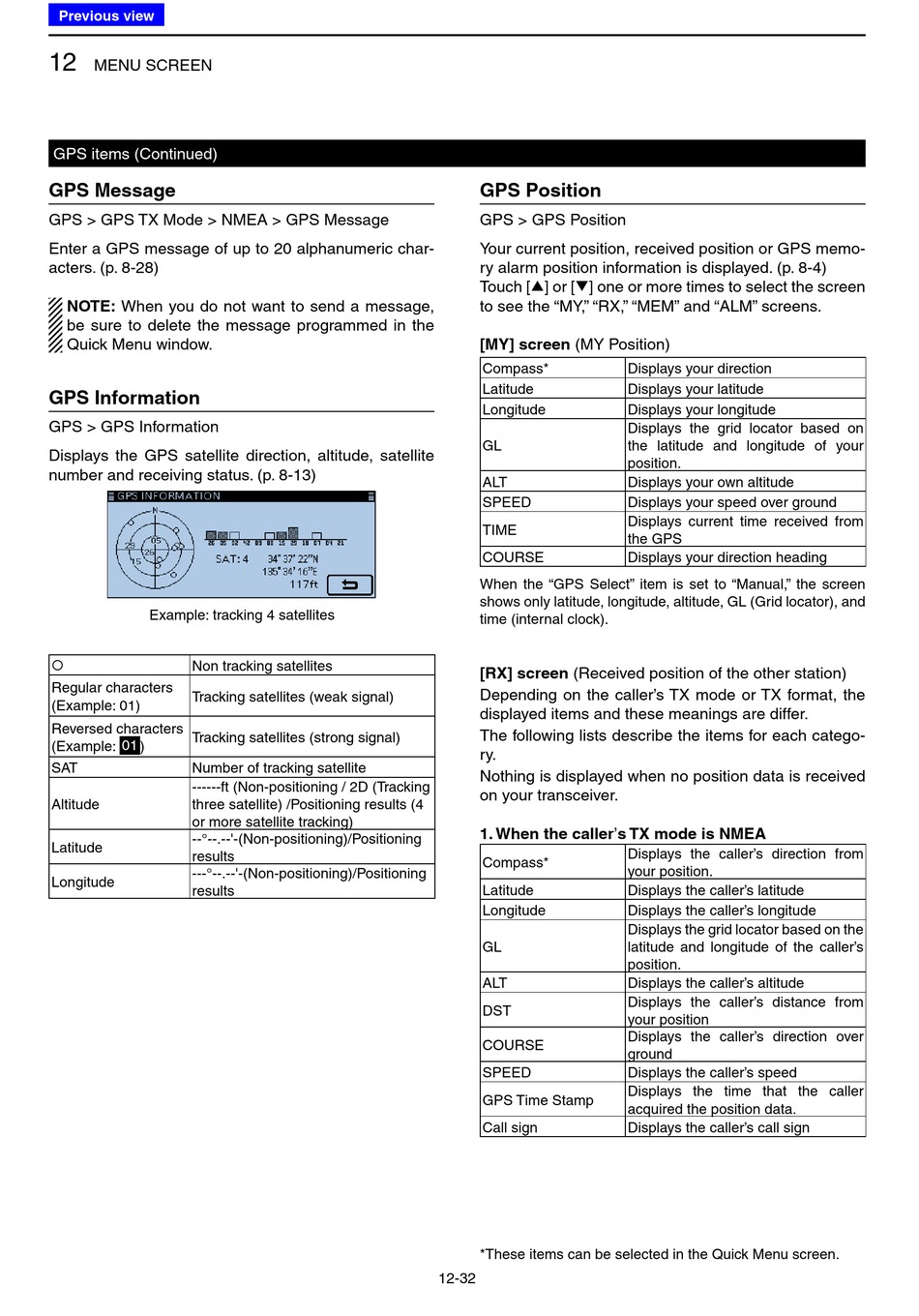

MENU SCREEN
GPS items (Continued)

GPS Message

GPS > GPS TX Mode > NMEA > GPS Message
Enter a GPS message of up to 20 alphanumeric char-
acters. (p. 8-28)
NOTE: When you do not want to send a message,
be sure to delete the message programmed in the
Quick Menu window.

GPS Information

GPS > GPS Information
Displays the GPS satellite direction, altitude, satellite
number and receiving status. (p. 8-13)
Example: tracking 4 satellites
Non tracking satellites

Regular characters
Tracking satellites (weak signal)
(Example: 01)
Reversed characters
Tracking satellites (strong signal)
01
(Example: )
SAT Number of tracking satellite
------ft (Non-positioning / 2D (Tracking
Altitude three satellite) /Positioning results (4
or more satellite tracking)
--°--.--'-(Non-positioning)/Positioning
Latitude
results
---°--.--'-(Non-positioning)/Positioning
Longitude
results

GPS Position

GPS > GPS Position
Your current position, received position or GPS memo-
ry alarm position information is displayed. (p. 8-4)
Touch [∫] or [√] one or more times to select the screen
to see the "MY," "RX," "MEM" and "ALM" screens.
[MY] screen (MY Position)
Compass*
Latitude
Longitude
GL
ALT
SPEED
TIME
COURSE
When the "GPS Select" item is set to "Manual," the screen
shows only latitude, longitude, altitude, GL (Grid locator), and
time (internal clock).
[RX] screen (Received position of the other station)
Depending on the caller's TX mode or TX format, the
displayed items and these meanings are differ.
The following lists describe the items for each catego-
ry.
Nothing is displayed when no position data is received
on your transceiver.
1. When the caller's TX mode is NMEA
Compass*
Latitude
Longitude
GL
ALT
DST
COURSE
SPEED
GPS Time Stamp
Call sign
*These items can be selected in the Quick Menu screen.
12-32
Displays your direction
Displays your latitude
Displays your longitude
Displays the grid locator based on
the latitude and longitude of your
position.
Displays your own altitude
Displays your speed over ground
Displays current time received from
the GPS
Displays your direction heading
Displays the caller's direction from
your position.
Displays the caller's latitude
Displays the caller's longitude
Displays the grid locator based on the
latitude and longitude of the caller's
position.
Displays the caller's altitude
Displays the caller's distance from
your position
Displays the caller's direction over
ground
Displays the caller's speed
Displays the time that the caller
acquired the position data.
Displays the caller's call sign
