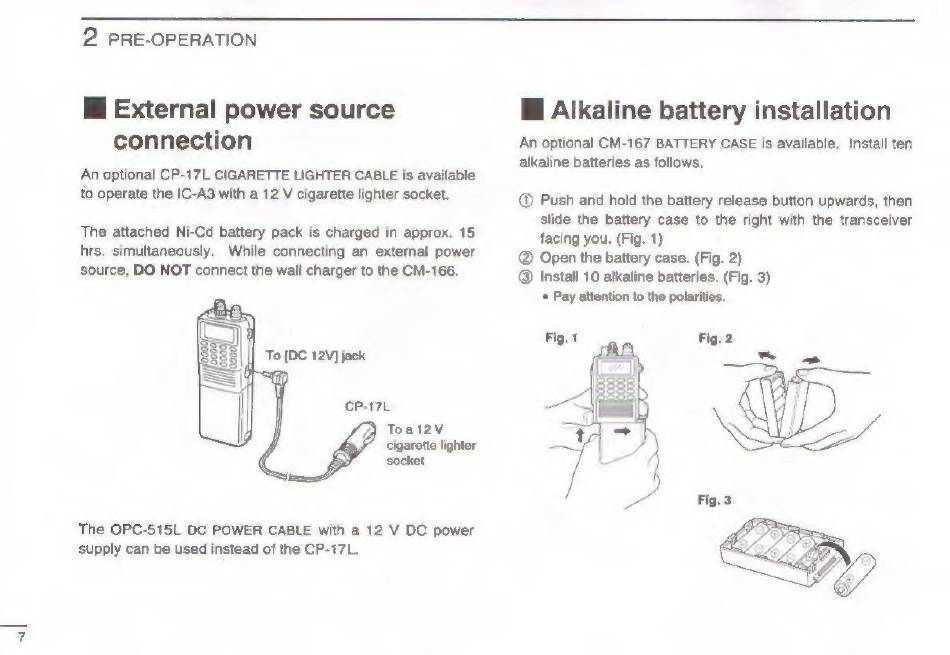

2 PRE-OPERATION
i External power source
connection
An optional CP-17L CIGARETTE LIGHTER CABLE is available
to operate the IC-A3 with a 12 V cigarette lighter socket.
The attached Ni-Cd battery pack is charged in approx. 15
hrs. simultaneously. While connecting an external power
source, DO NOT connect the wall charger to the CM-166.
To [DC 12V] jack
CP-17L
Toai2V
cigarette lighter
socket
The OPC-515L DC POWER CABLE with a 12 V DC power
supply can be used instead of the CP-17L.
Wi Alkaline battery installation
An optional CM-167 BATTERY CASE is available. Install ten
alkaline batteries as follows.
@ Push and hold the battery release button upwards, then
slide the battery case to the right with the transceiver
facing you. (Fig. 1)
@® Open the battery case. (Fig. 2)
@ Install 10 alkaline batteries. (Fig. 3)
* Pay attention to the polarities.
Fig. 2
