9
USING AN SD CARD

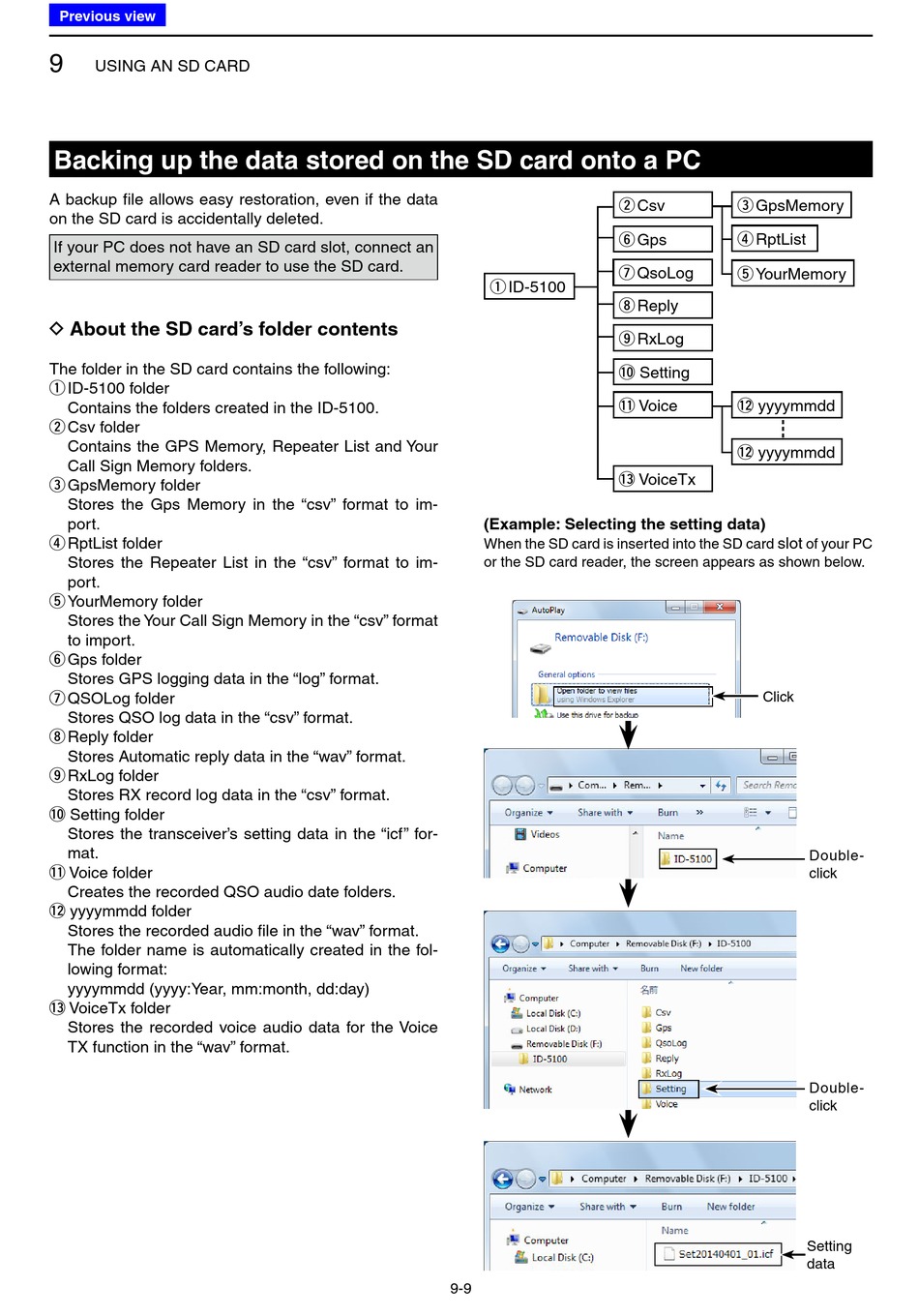

Backing up the data stored on the SD card onto a PC

A backup file allows easy restoration, even if the data
on the SD card is accidentally deleted.
If your PC does not have an SD card slot, connect an
external memory card reader to use the SD card.

D About the SD card's folder contents

The folder in the SD card contains the following:
ID-5100 folder
q
Contains the folders created in the ID-5100.
Csv folder
w
Contains the GPS Memory, Repeater List and Your
Call Sign Memory folders.
GpsMemory folder
e
Stores the Gps Memory in the "csv" format to im-
port.
RptList folder
r
Stores the Repeater List in the "csv" format to im-
port.
YourMemory folder
t
Stores the Your Call Sign Memory in the "csv" format
to import.
Gps folder
y
Stores GPS logging data in the "log" format.
QSOLog folder
u
Stores QSO log data in the "csv" format.
Reply folder
i
Stores Automatic reply data in the "wav" format.
RxLog folder
o
Stores RX record log data in the "csv" format.
!0 Setting folder
Stores the transceiver's setting data in the "icf" for-
mat.
!1 Voice folder
Creates the recorded QSO audio date folders.
!2 yyyymmdd folder
Stores the recorded audio file in the "wav" format.
The folder name is automatically created in the fol-
lowing format:
yyyymmdd (yyyy:Year, mm:month, dd:day)
!3 VoiceTx folder
Stores the recorded voice audio data for the Voice
TX function in the "wav" format.
w
y
u
ID-5100
q
i
o
!0 Setting
!1 Voice
!3 VoiceTx
(Example: Selecting the setting data)
When the SD card is inserted into the SD card
or the SD card reader, the screen appears as shown below.
9-9
GpsMemory
Csv
e
RptList
Gps r
QsoLog
YourMemory
t
Reply
RxLog
!2 yyyymmdd
!2 yyyymmdd
slot
of your PC
Click
Double-
click
Double-
click
Setting
data
