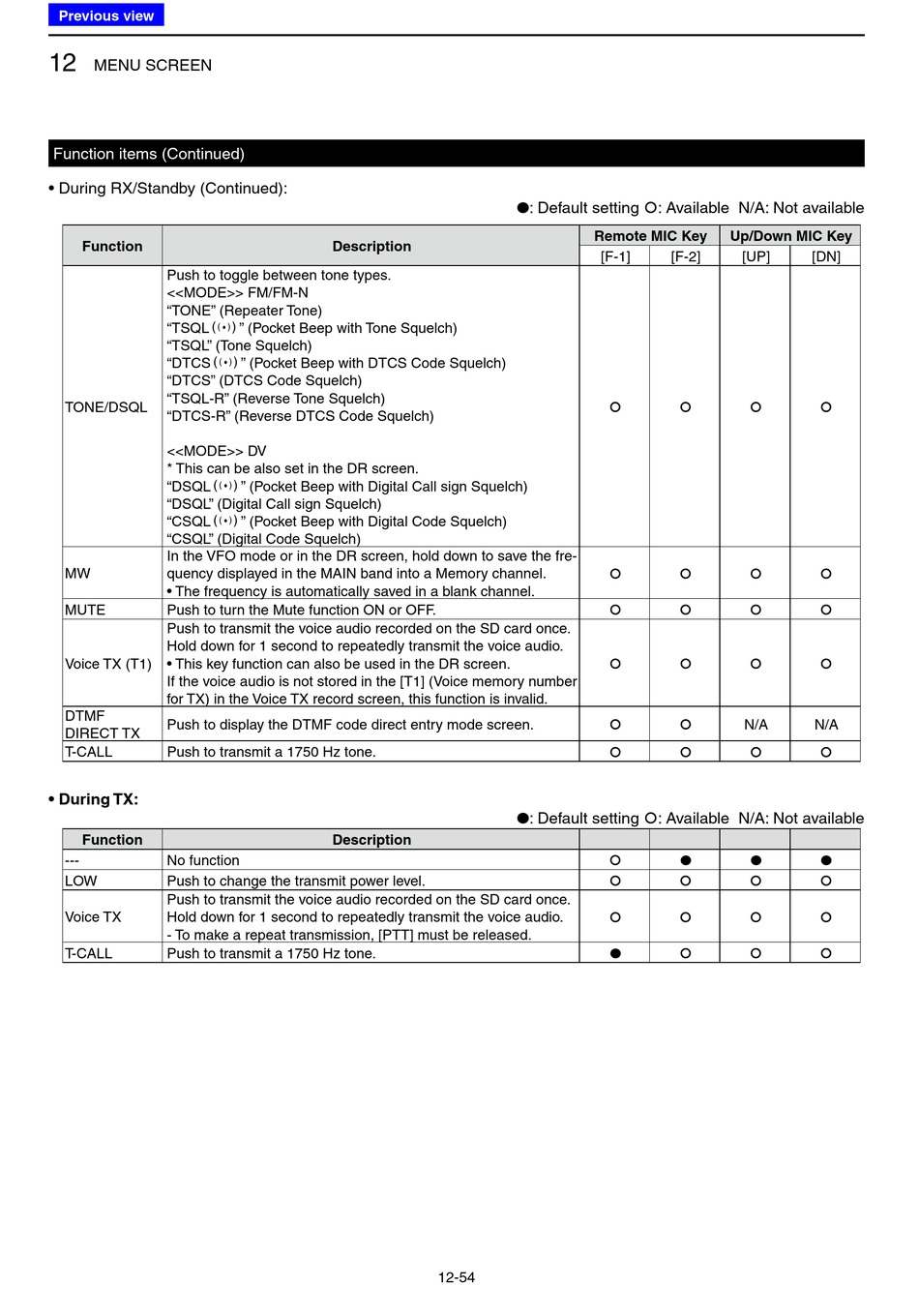

12
MENU SCREEN
Function items (Continued)
• During RX/Standby (Continued):
Function
Push to toggle between tone types.
<<MODE>> FM/FM-N
"TONE" (Repeater Tone)
"TSQLS" (Pocket Beep with Tone Squelch)
"TSQL" (Tone Squelch)
"DTCSS" (Pocket Beep with DTCS Code Squelch)
"DTCS" (DTCS Code Squelch)
"TSQL-R" (Reverse Tone Squelch)
TONE/DSQL
"DTCS-R" (Reverse DTCS Code Squelch)
<<MODE>> DV
* This can be also set in the DR screen.
"DSQLS" (Pocket Beep with Digital Call sign Squelch)
"DSQL" (Digital Call sign Squelch)
"CSQLS" (Pocket Beep with Digital Code Squelch)
"CSQL" (Digital Code Squelch)
In the VFO mode or in the DR screen, hold down to save the fre-
MW quency displayed in the MAIN band into a Memory channel.
• The frequency is automatically saved in a blank channel.
MUTE Push to turn the Mute function ON or OFF.
Push to transmit the voice audio recorded on the SD card once.
Hold down for 1 second to repeatedly transmit the voice audio.
Voice TX (T1) • This key function can also be used in the DR screen.
If the voice audio is not stored in the [T1] (Voice memory number
for TX) in the Voice TX record screen, this function is invalid.
DTMF
Push to display the DTMF code direct entry mode screen.
DIRECT TX
T-CALL Push to transmit a 1750 Hz tone.
• During TX:
Function
--- No function
LOW Push to change the transmit power level.
Push to transmit the voice audio recorded on the SD card once.
Voice TX Hold down for 1 second to repeatedly transmit the voice audio.
- To make a repeat transmission, [PTT] must be released.
T-CALL Push to transmit a 1750 Hz tone.
Description
Description
12-54
●: Default setting : Available N/A: Not available
Remote MIC Key
[F-1] [F-2]
 
 
 
 
 
 
●: Default setting : Available N/A: Not available

●
 
 

●
Up/Down MIC Key
[UP] [DN]
 
 
 
 
N/A N/A
 
● ●
 
 
 
