7
D-STAR OPERATION <ADVANCED>

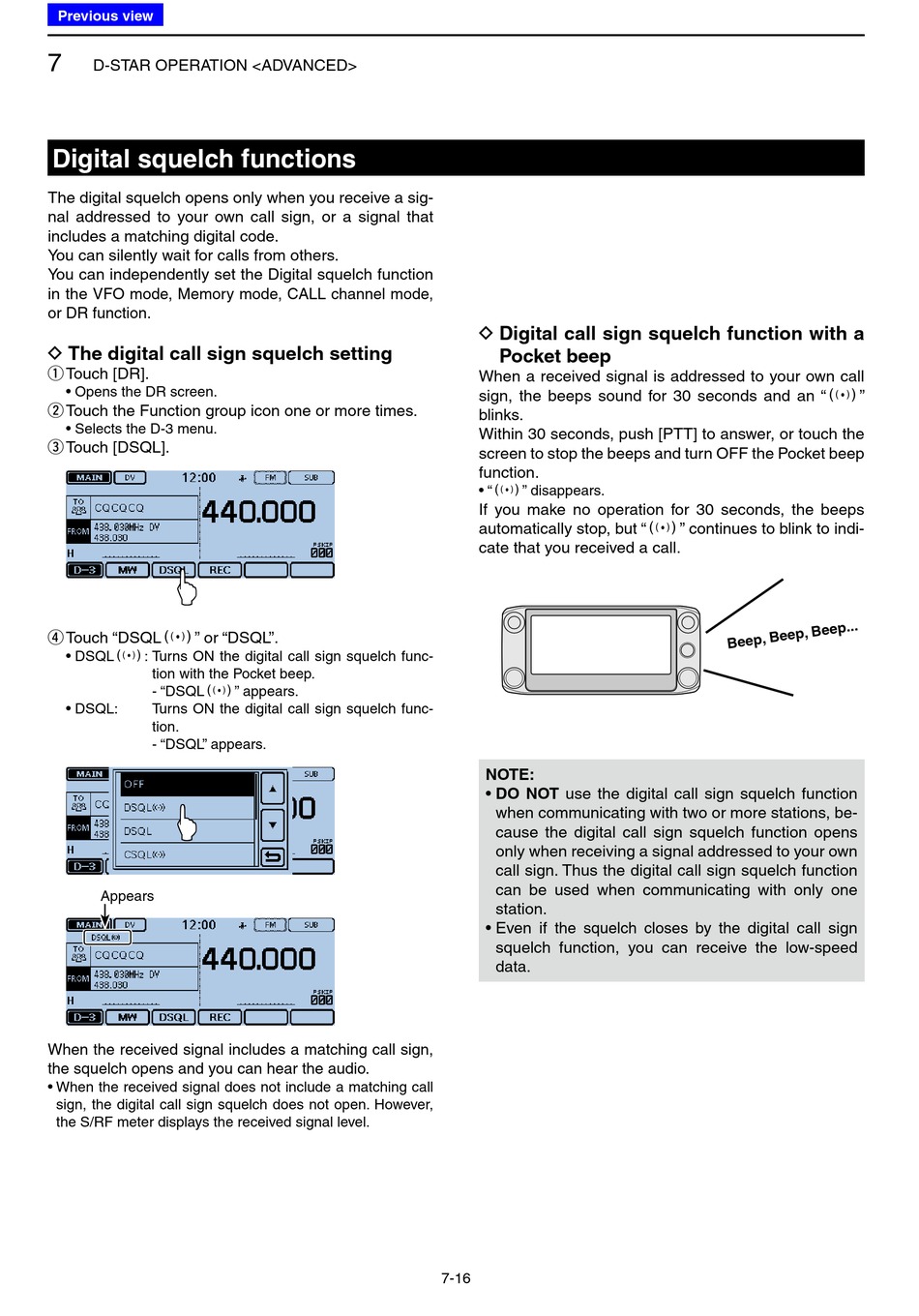

Digital squelch functions

The digital squelch opens only when you receive a sig-
nal addressed to your own call sign, or a signal that
includes a matching digital code.
You can silently wait for calls from others.
You can independently set the Digital squelch function
in the VFO mode, Memory mode, CALL channel mode,
or DR function.

D The digital call sign squelch setting

Touch [DR].
q
• Opens the DR screen.
Touch the Function group icon one or more times.
w
• Selects the D-3 menu.
Touch [DSQL].
e
Touch "DSQL S" or "DSQL".
r
• DSQLS: Turns ON the digital call sign squelch func-
tion with the Pocket beep.
- "DSQLS" appears.
• DSQL: Turns ON the digital call sign squelch func-
tion.
- "DSQL" appears.
Appears
When the received signal includes a matching call sign,
the squelch opens and you can hear the audio.
• When the received signal does not include a matching call
sign, the digital call sign squelch does not open. However,
the S/RF meter displays the received signal level.
D Digital call sign squelch function with a
Pocket beep
When a received signal is addressed to your own call
sign, the beeps sound for 30 seconds and an "S"
blinks.
Within 30 seconds, push [PTT] to answer, or touch the
screen to stop the beeps and turn OFF the Pocket beep
function.
• "S" disappears.
If you make no operation for 30 seconds, the beeps
automatically stop, but "S" continues to blink to indi-
cate that you received a call.
NOTE:
• DO NOT use the digital call sign squelch function
when communicating with two or more stations, be-
cause the digital call sign squelch function opens
only when receiving a signal addressed to your own
call sign. Thus the digital call sign squelch function
can be used when communicating with only one
station.
• Even if the squelch closes by the digital call sign
squelch function, you can receive the low-speed
data.
7-16
