INTRODUCTION
ABOUT THE TOUCH SCREEN
D Touch screen precautions
Briefly touching the controller's touch operates the
function.
• The touch screen may not properly work when LCD
protection film or sheet is attached.
• Touching the screen with finger nails, sharp topped
object and so on, or touching the screen hard may
damage the screen.
• Tablet PC's operations such as flick input, pinch in and
pinch out cannot be performed with this touch screen
(based on the resistance film type).
D Touch screen maintenance
• If the touch screen becomes dusty or dirty, wipe it
clean with a soft, dry cloth.
• When you wipe the touch screen, be careful not to
push it too hard or scratch it with finger nails. Other-
wise you may damage the touch screen.
D About the Touch area

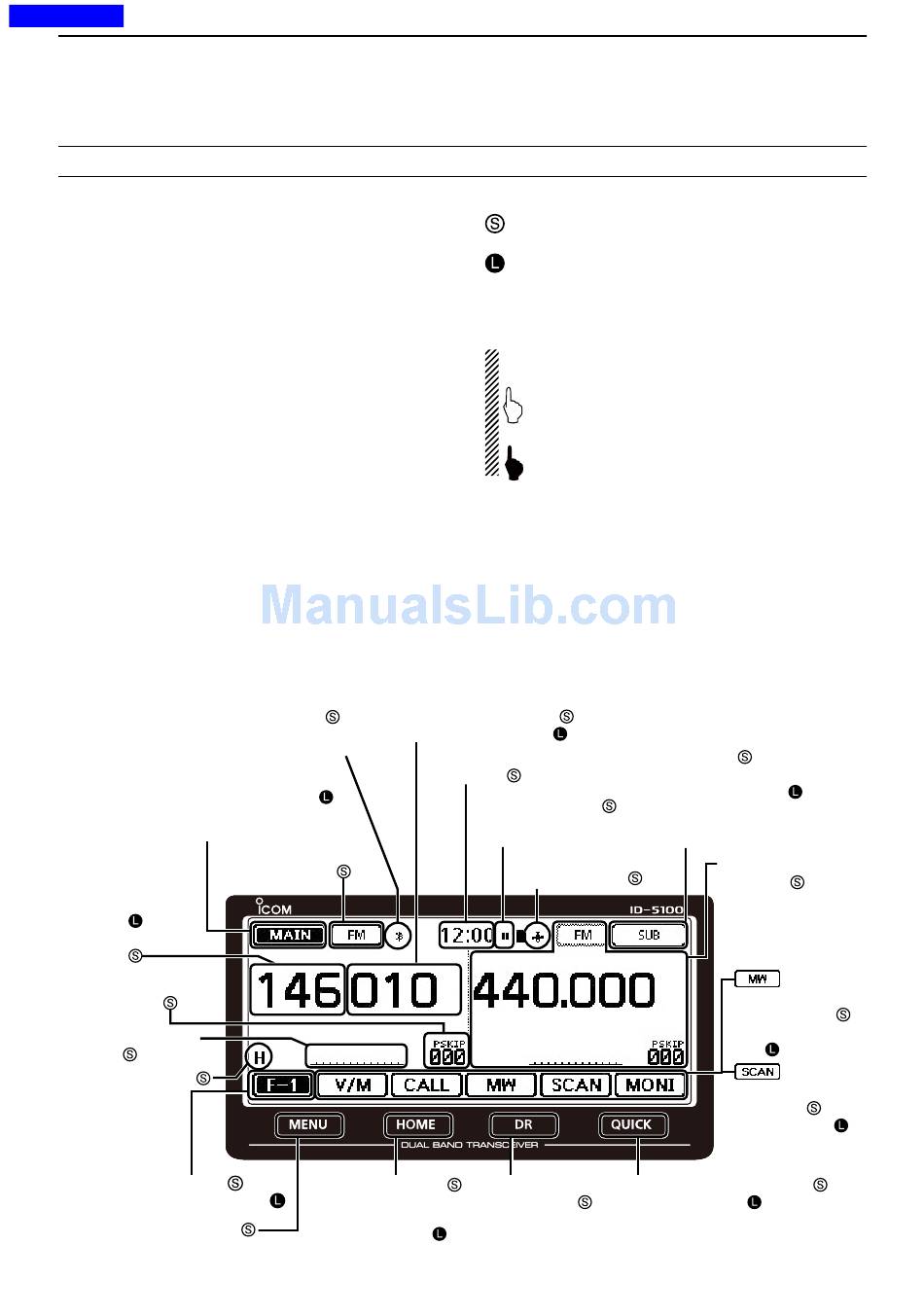

Areas you can touch for various operations are shown below.
• This page describes the main operations of the touch screen. See the appropriate pages for other operations.
Displays the connected Bluetooth
• This icon appears only when the optional UT-133
is installed, and connects to the Blu-
Blurtooth ®
unit
etooth ® device.
Dual or Single band display selection:
• MAIN band: Used for TX or radio's settings
• SUB band: Used for the Dualwatch operation
"MHz" tuning
selection:
Operating band
selection:
Sets the Mode:
Displays the Monitor
function:
TX power selection:
Function menu selection:
Displays the Function menu list:
Displays the Menu screen:
® device: "kHz" tuning selection:
Tuning step selection:
Displays the date
and time:
Operating mode
selection:
Home CH selection:
• Selects the Home CH that you
set in the QUICK Menu.
Home CH setting:
D Touch operation
(Short touch): If the display is touched briefly, one
short beep sounds.
(Long touch): If the display is touched for 1 sec-
ond, one short and one long beep
sound.
• After the beep, the operation is enabled.
In the instruction manual, the touch operation is de-
scribed as shown below.
If the display is touched briefly, one short beep
sounds.
If the display is touched for 1 second, one short
and one long beep sound.
Stops recording:
• This icon appears while
recording.
Displays the GPS
menu window:
Displays the
DR screen:
• D-STAR settings can
easily be made.
iii
Sets MAIN band to the
right side:
Dual or Single band
display selection:
• In the Single band, touch
[B] to set the B band as
the MAIN band.
Sets MAIN band to the
right side:
Function menu
ID-5100
operations
• The following operations
are examples.
Displays the Memory
Write window:
Writes to a blank
CH:
Scan type
selection:
Starts a scan:
• The last used scan
starts.
Displays the QUICK Menu:
Mutes the audio:
• Releases mute when rotating [DIAL],
[VOL] or [SQL], or operating a key,
touch screen or microphone.
