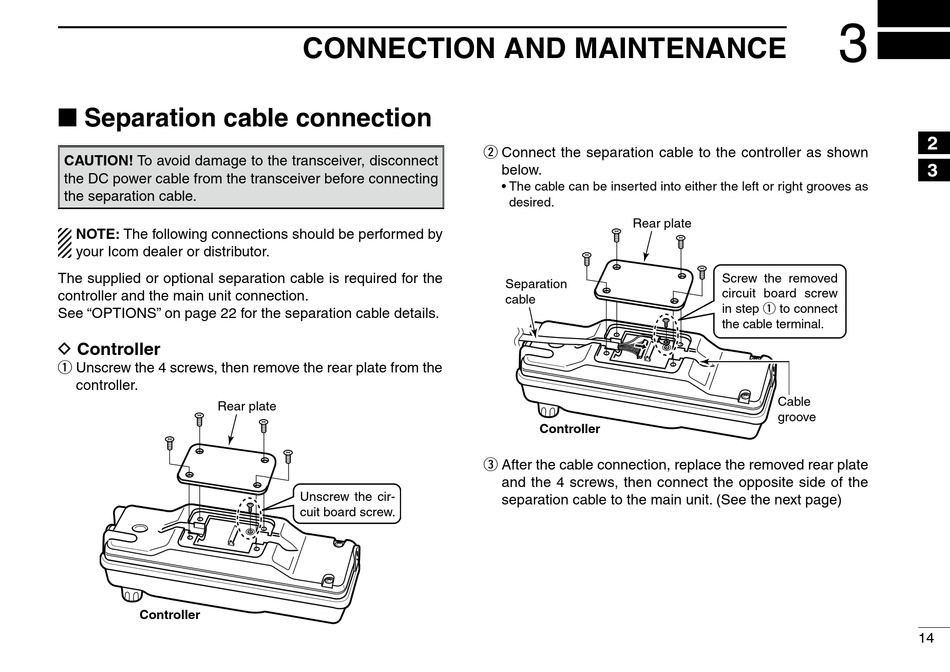

n Separation cable connection
CAUTION! To avoid damage to the transceiver, disconnect
the DC power cable from the transceiver before connecting
the separation cable.
NOTE: The following connections should be performed by
your Icom dealer or distributor.
The supplied or optional separation cable is required for the
controller and the main unit connection.
See "OPTIONS" on page 22 for the separation cable details.
D Controller
q Unscrew the 4 screws, then remove the rear plate from the
controller.
Rear plate
Controller

CONNECTION AND MAINTENANCE

Unscrew the cir-
cuit board screw.
w Connect the separation cable to the controller as shown
below.
• The cable can be inserted into either the left or right grooves as
desired.
Rear plate
Separation
cable
Controller
e After the cable connection, replace the removed rear plate
and the 4 screws, then connect the opposite side of the
separation cable to the main unit. (See the next page)
3
Screw the removed
circuit board screw
in step q to connect
the cable terminal.
Cable
groove
