Bluetooth ® OPERATION

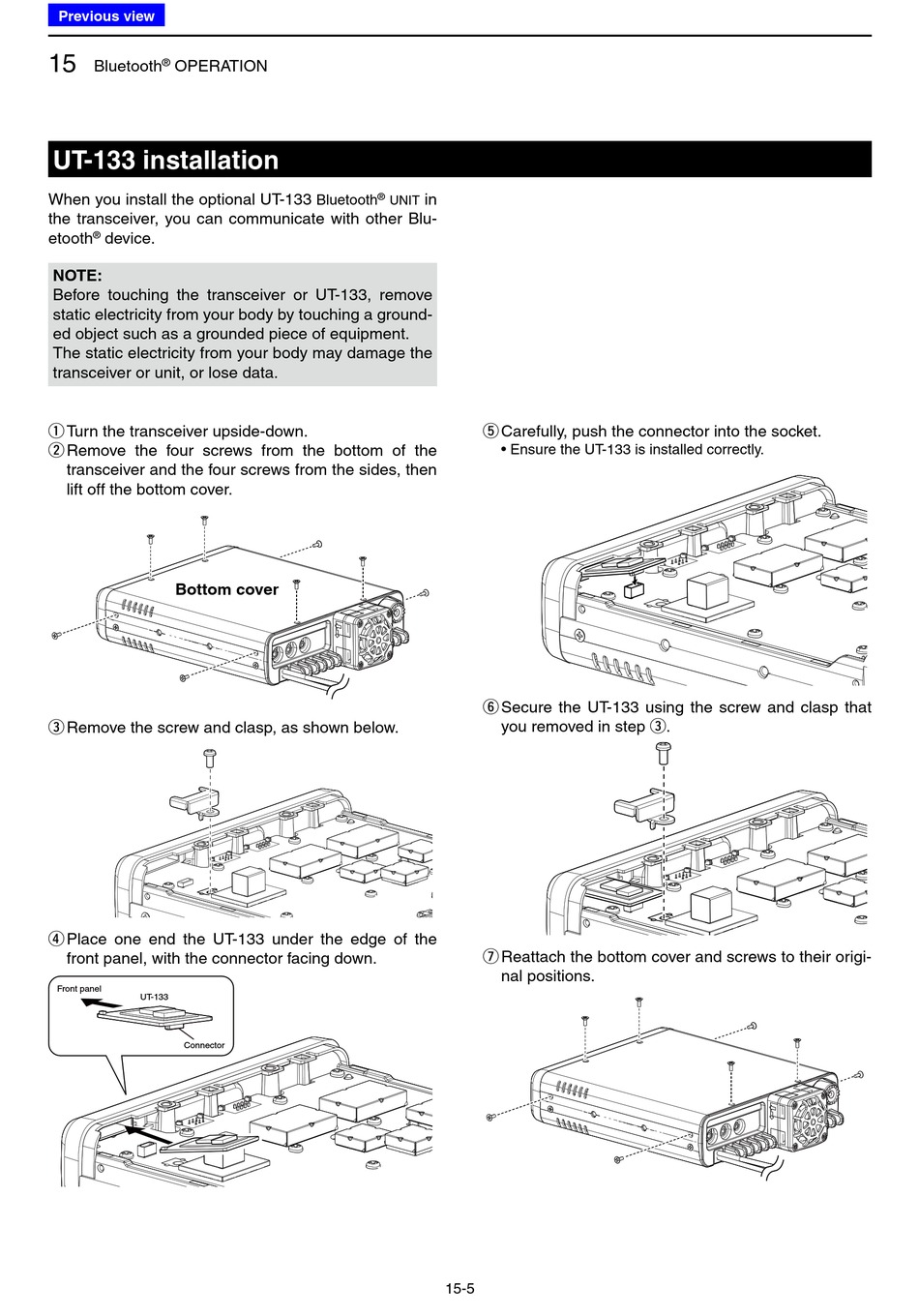

UT-133 installation

When you install the optional UT-133
the transceiver, you can communicate with other Blu-
etooth device.
®
NOTE:
Before touching the transceiver or UT-133, remove
static electricity from your body by touching a ground-
ed object such as a grounded piece of equipment.
The static electricity from your body may damage the
transceiver or unit, or lose data.
Turn the transceiver upside-down.
q
Remove the four screws from the bottom of the
w
transceiver and the four screws from the sides, then
lift off the bottom cover.
Bottom cover
Remove the screw and clasp, as shown below.
e
Place one end the UT-133 under the edge of the
r
front panel, with the connector facing down.
Front panel
UT-133
Connector
in
®
Bluetooth
unit
t
y
u
15-5
Carefully, push the connector into the socket.
• Ensure the UT-133 is installed correctly.
Secure the UT-133 using the screw and clasp that
you removed in step e.
Reattach the bottom cover and screws to their origi-
nal positions.
