3
CONNECTION AND MAINTENANCE

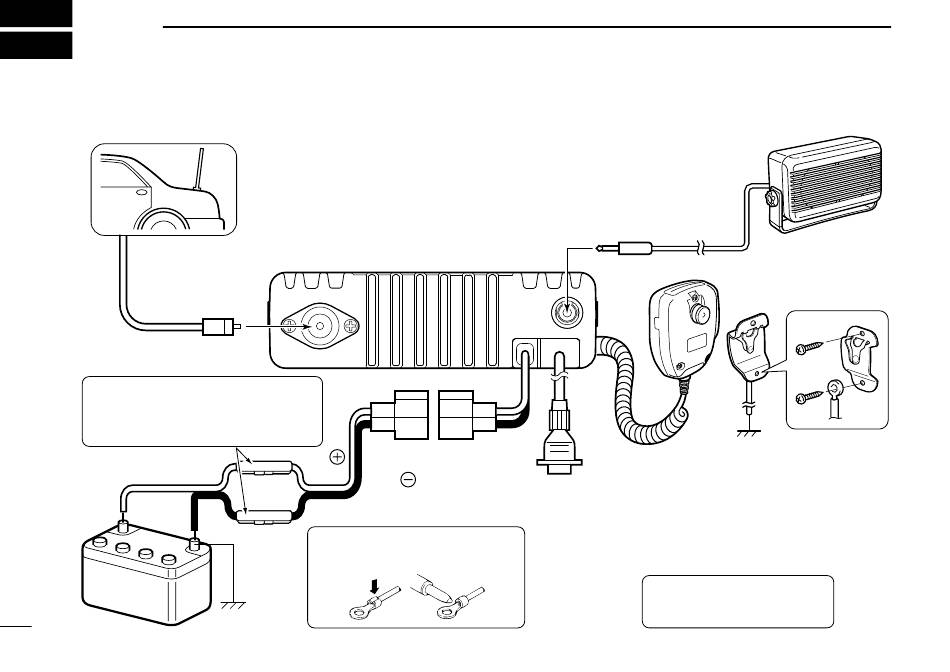

■ Rear panel connection
Antenna
R WARNING! NEVER remove the fuse-
holders from the DC power cable.
(Depending on version, the fuse holder
may not be attached to the black cable.)
12V
Battery
14
q ANTENNA CONNECTOR
Connects to an antenna. Contact
your dealer about antenna selec-
tion and placement.
w EXTERNAL S.EAKER JACK
Connect a 4–8 ø external speaker.
q
t
Red
Black
NOTE: Use the terminals as shown
below for the cable connections.
Crimp
Solder
e MICRO.HONE HANGER
Connect the supplied micro-
phone hanger to the vehicle's
ground for microphone on/off
hook functions. (See p. 1)
w
r
r O.TIONAL CABLE (O.C-1939, O.C-2078)
Connect an external modem,
dimmer control, etc.
t DC .OWER RECE.TACLE
Connects to a 12 V DC battery.
Pay attention to polarities.
R WARNING! NEVER connect
to a 24 V battery. This could
damage the transceiver.
Optional speaker
e
