INTRODUCTION
About these Advanced Instructions (PDF format)

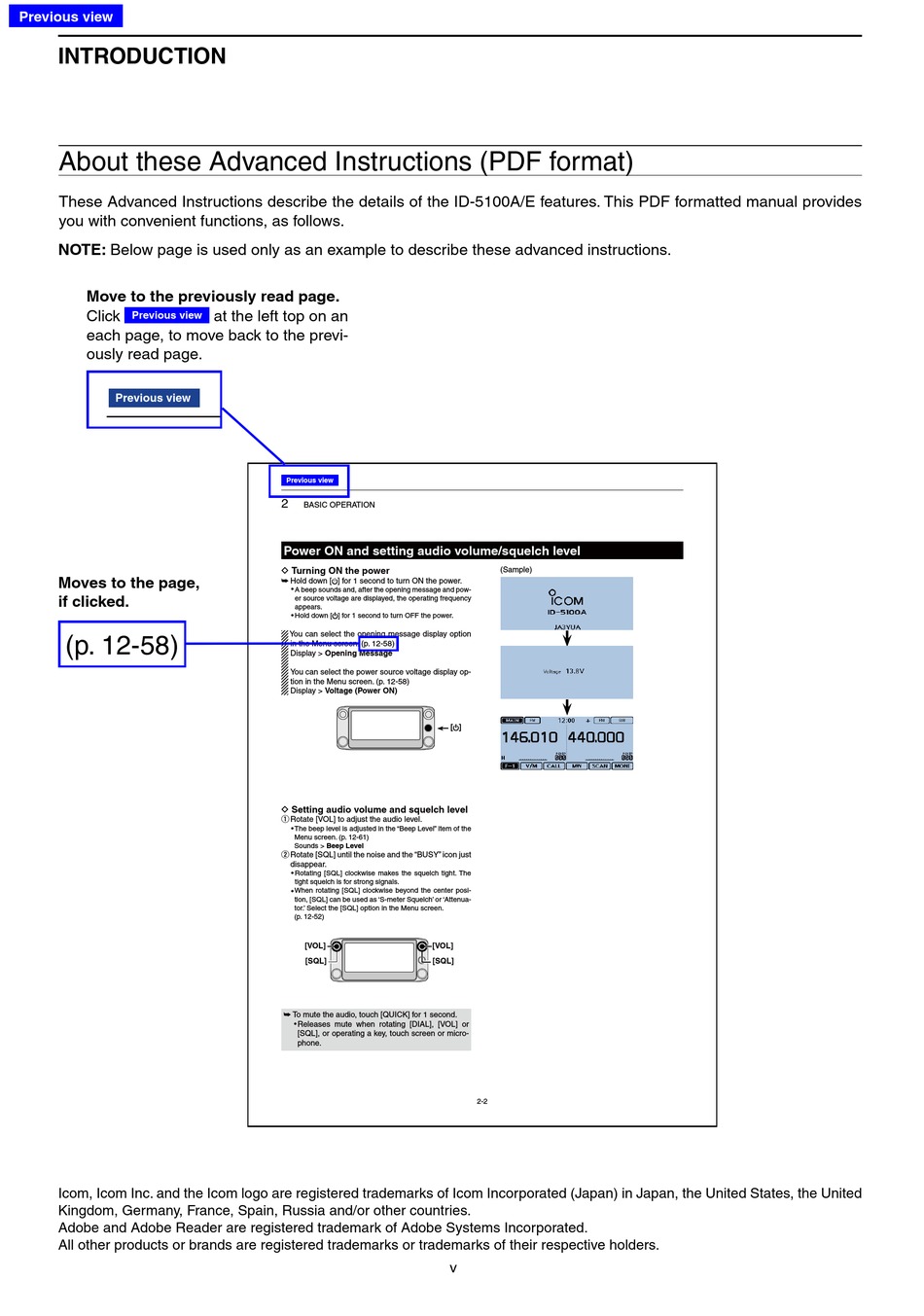

These Advanced Instructions describe the details of the ID-5100A/E features. This PDF formatted manual provides
you with convenient functions, as follows.
NOTE: Below page is used only as an example to describe these advanced instructions.
Move to the previously read page.
Click
Previous view
each page, to move back to the previ-
ously read page.
Previous view
Moves to the page,
if clicked.
(p. 12-58)
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United
Kingdom, Germany, France, Spain, Russia and/or other countries.
Adobe and Adobe Reader are registered trademark of Adobe Systems Incorporated.
All other products or brands are registered trademarks or trademarks of their respective holders.
at the left top on an
Previous view
2
BASIC OPERATION
Power ON and setting audio volume/squelch level
D
Turning ON the power
Hold down [ ] for 1 second to turn ON the power.
�
• A beep sounds and, after the opening message and pow-
er source voltage are displayed, the operating frequency
appears.
• Hold down [ ] for 1 second to turn OFF the power.
You can select the opening message display option
in the Menu screen. (p. 12-58)
Display > Opening Message
You can select the power source voltage display op-
tion in the Menu screen. (p. 12-58)
Display > Voltage (Power ON)
D
Setting audio volume and squelch level
Rotate [VOL] to adjust the audio level.
q
• The beep level is adjusted in the "Beep Level" item of the
Menu screen. (p. 12-61)
Sounds > Beep Level
Rotate [SQL] until the noise and the "BUSY" icon just
w
disappear.
• Rotating [SQL] clockwise makes the squelch tight. The
tight squelch is for strong signals.
When rotating [SQL] clockwise beyond the center posi-
•
tion, [SQL] can be used as 'S-meter Squelch' or 'Attenua-
tor.' Select the [SQL] option in the Menu screen.
(p. 12-52)
[VOL]
[SQL]
To mute the audio, touch [QUICK] for 1 second.
�
• Releases mute when rotating [DIAL], [VOL] or
[SQL], or operating a key, touch screen or micro-
phone.
(Sample)
[ ]
[VOL]
[SQL]
2-2
