9

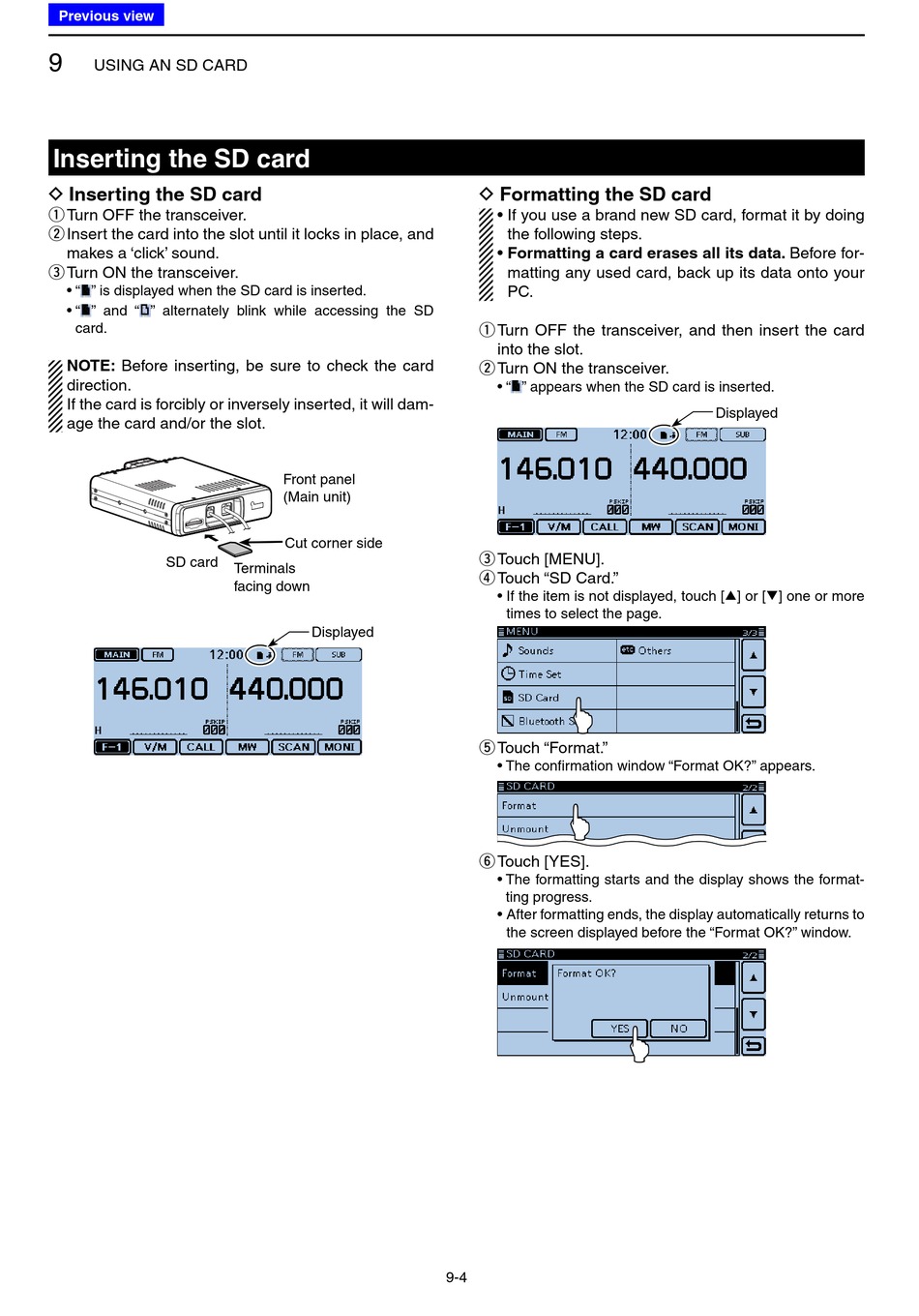

USING AN SD CARD

Inserting the SD card

D Inserting the SD card
Turn OFF the transceiver.
q
Insert the card into the slot until it locks in place, and
w
makes a 'click' sound.
Turn ON the transceiver.
e
• " " is displayed when the SD card is inserted.
• " " and " " alternately blink while accessing the SD
card.
NOTE: Before inserting, be sure to check the card
direction.
If the card is forcibly or inversely inserted, it will dam-
age the card and/or the slot.
SD card
Front panel
(Main unit)
Cut corner side
Terminals
facing down
Displayed

D Formatting the SD card

• If you use a brand new SD card, format it by doing
the following steps.
• Formatting a card erases all its data. Before for-
matting any used card, back up its data onto your
PC.
Turn OFF the transceiver, and then insert the card
q
into the slot.
Turn ON the transceiver.
w
• " " appears when the SD card is inserted.
Touch [MENU].
e
Touch "SD Card."
r
• If the item is not displayed, touch [∫] or [√] one or more
times to select the page.
Touch "Format."
t
• The confirmation window "Format OK?" appears.
Touch [YES].
y
• The formatting starts and the display shows the format-
ting progress.
• After formatting ends, the display automatically returns to
the screen displayed before the "Format OK?" window.
9-4
Displayed
