1
PANEL DESCRIPTION

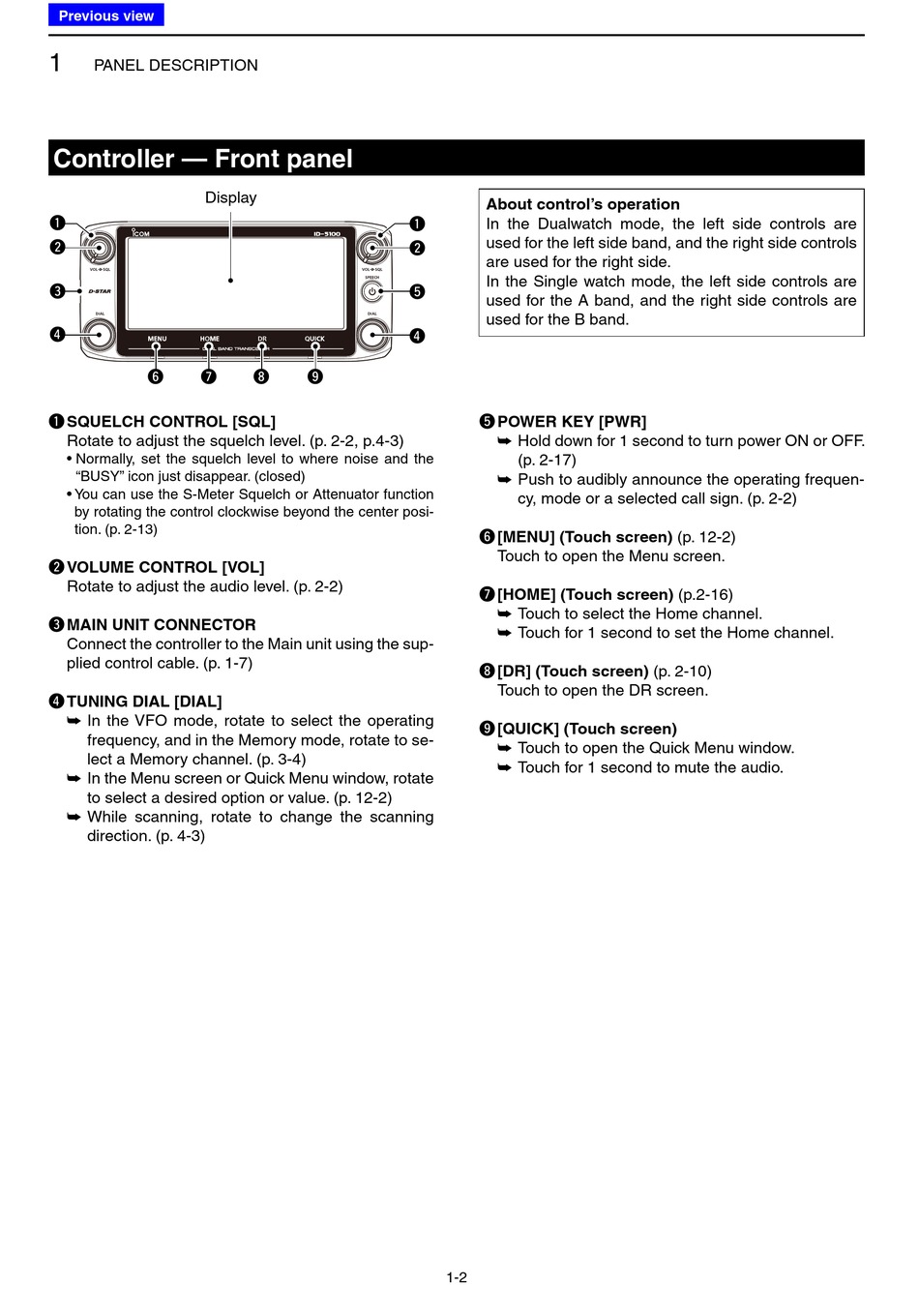

Controller — Front panel
Display
q
w
e
r
y u
q SQUELCH CONTROL [SQL]
Rotate to adjust the squelch level. (p. 2-2, p.4-3)
• Normally, set the squelch level to where noise and the
"BUSY" icon just disappear. (closed)
• You can use the S-Meter Squelch or Attenuator function
by rotating the control clockwise beyond the center posi-
tion. (p. 2-13)
w VOLUME CONTROL [VOL]
Rotate to adjust the audio level. (p. 2-2)
e MAIN UNIT CONNECTOR
Connect the controller to the Main unit using the sup-
plied control cable. (p. 1-7)
r TUNING DIAL [DIAL]
In the VFO mode, rotate to select the operating
➥
frequency, and in the Memory mode, rotate to se-
lect a Memory channel. (p. 3-4)
In the Menu screen or Quick Menu window, rotate
➥
to select a desired option or value. (p. 12-2)
While scanning, rotate to change the scanning
➥
direction. (p. 4-3)
q
ID-5100
w
t
r
i o
About control's operation
In the Dualwatch mode, the left side controls are
used for the left side band, and the right side controls
are used for the right side.
In the Single watch mode, the left side controls are
used for the A band, and the right side controls are
used for the B band.
t POWER KEY [PWR]
Hold down for 1 second to turn power ON or OFF.
➥
(p. 2-17)
Push to audibly announce the operating frequen-
➥
cy, mode or a selected call sign. (p. 2-2)
y [MENU] (Touch screen) (p. 12-2)
Touch to open the Menu screen.
u [HOME] (Touch screen) (p.2-16)
Touch to select the Home channel.
➥
Touch for 1 second to set the Home channel.
➥
i [DR] (Touch screen) (p. 2-10)
Touch to open the DR screen.
o [QUICK] (Touch screen)
Touch to open the Quick Menu window.
➥
Touch for 1 second to mute the audio.
➥
1-2
