2
BASIC OPERATION

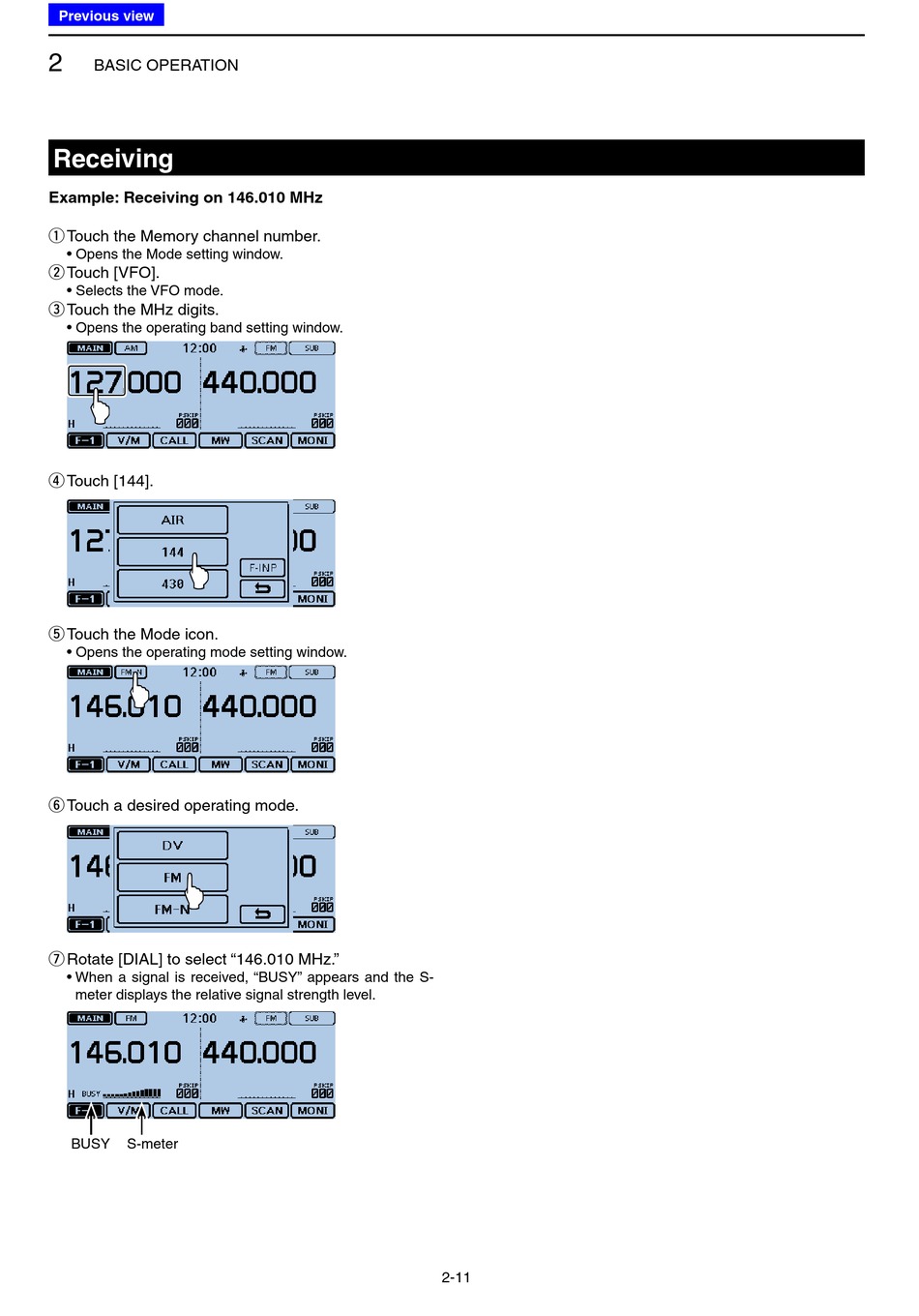

Receiving
Example: Receiving on 146.010 MHz
Touch the Memory channel number.
q
• Opens the Mode setting window.
Touch [VFO].
w
• Selects the VFO mode.
Touch the MHz digits.
e
• Opens the operating band setting window.
Touch [144].
r
Touch the Mode icon.
t
• Opens the operating mode setting window.
Touch a desired operating mode.
y
Rotate [DIAL] to select "146.010 MHz."
u
• When a signal is received, "BUSY" appears and the S-
meter displays the relative signal strength level.
BUSY
S-meter
2-11
