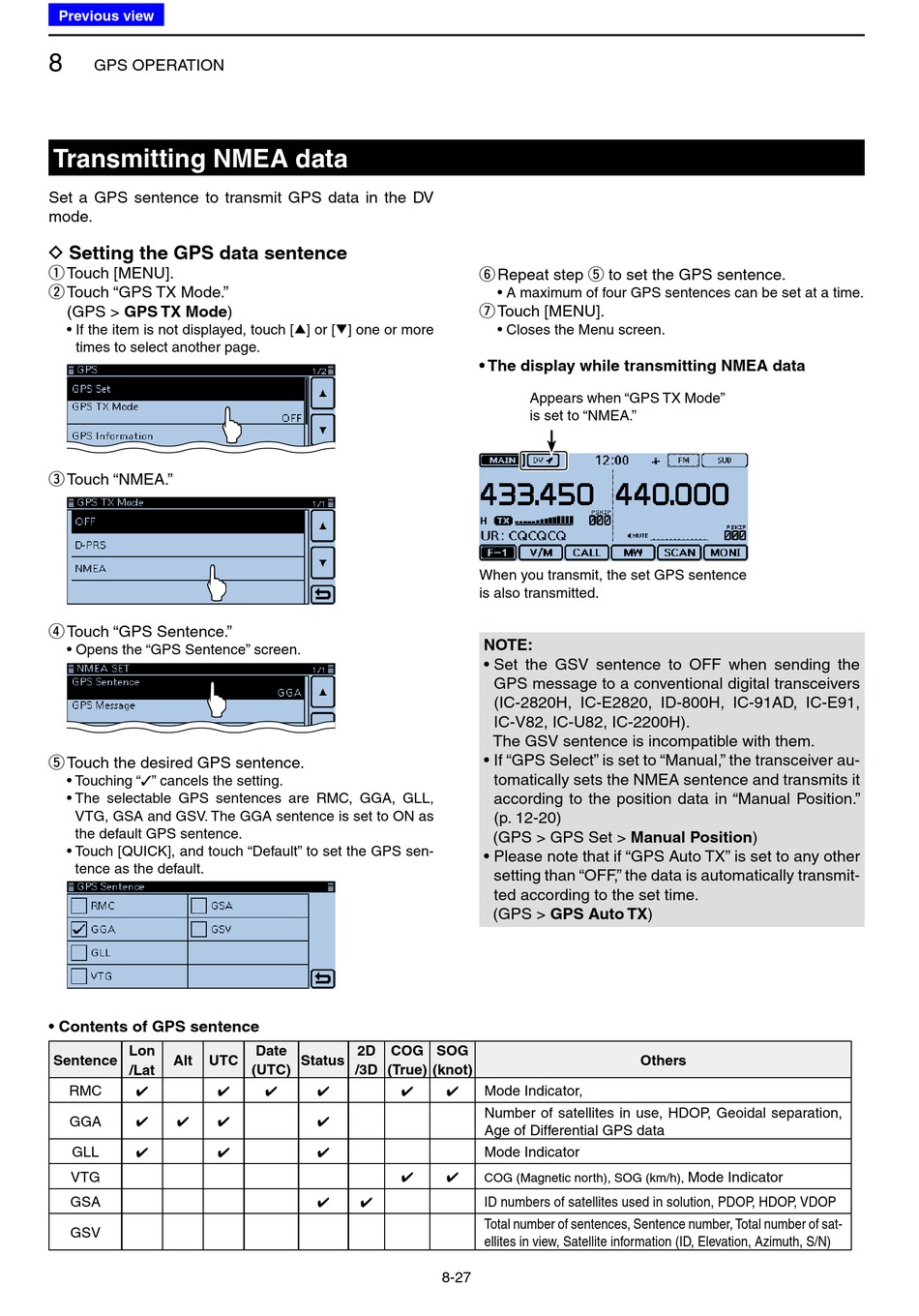

GPS OPERATION

Transmitting NMEA data

Set a GPS sentence to transmit GPS data in the DV
mode.

D Setting the GPS data sentence

Touch [MENU].
q
Touch "GPS TX Mode."
w
(GPS > GPS TX Mode)
• If the item is not displayed, touch [∫] or [√] one or more
times to select another page.
Touch "NMEA."
e
Touch "GPS Sentence."
r
• Opens the "GPS Sentence" screen.
Touch the desired GPS sentence.
t
• Touching "✓" cancels the setting.
• The selectable GPS sentences are RMC, GGA, GLL,
VTG, GSA and GSV. The GGA sentence is set to ON as
the default GPS sentence.
• Touch [QUICK], and touch "Default" to set the GPS sen-
tence as the default.
• Contents of GPS sentence
Lon
Sentence Alt UTC
/Lat
RMC
✔ ✔
GGA
✔ ✔ ✔
GLL
✔ ✔
VTG
GSA
GSV
Date 2D COG
Status
(UTC) /3D (True)
✔ ✔ ✔
✔
✔
✔
✔ ✔
Repeat step t to set the GPS sentence.
y
• A maximum of four GPS sentences can be set at a time.
Touch [MENU].
u
• Closes the Menu screen.
• The display while transmitting NMEA data
Appears when "GPS TX Mode"
is set to "NMEA."
When you transmit, the set GPS sentence
is also transmitted.
NOTE:
• Set the GSV sentence to OFF when sending the
GPS message to a conventional digital transceivers
(IC-2820H, IC-E2820, ID-800H, IC-91AD, IC-E91,
IC-V82, IC-U82, IC-2200H).
The GSV sentence is incompatible with them.
• If "GPS Select" is set to "Manual," the transceiver au-
tomatically sets the NMEA sentence and transmits it
according to the position data in "Manual Position."
(p. 12-20)
(GPS > GPS Set > Manual Position)
• Please note that if "GPS Auto TX" is set to any other
setting than "OFF," the data is automatically transmit-
ted according to the set time.
(GPS > GPS Auto TX)
SOG
(knot)
Mode Indicator,
✔
Number of satellites in use, HDOP, Geoidal separation,
Age of Differential GPS data
Mode Indicator
✔ COG (Magnetic north), SOG (km/h),
ID numbers of satellites used in solution, PDOP, HDOP, VDOP
Total number of sentences, Sentence number, Total number of sat-
ellites in view, Satellite information (ID, Elevation, Azimuth, S/N)
8-27
Others
Mode Indicator
