8
GPS OPERATION

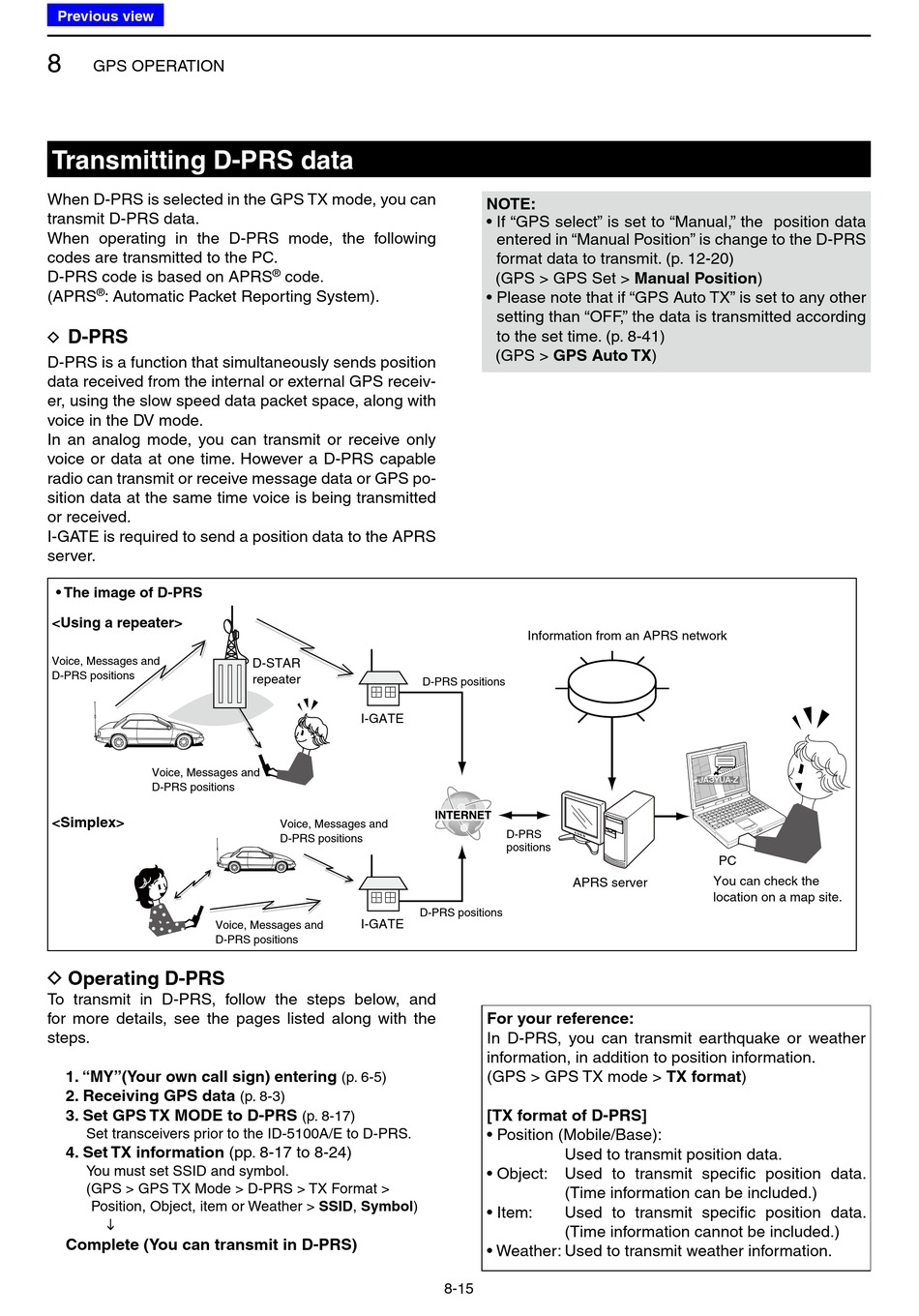

Transmitting D-PRS data

When D-PRS is selected in the GPS TX mode, you can
transmit D-PRS data.
When operating in the D-PRS mode, the following
codes are transmitted to the PC.
D-PRS code is based on APRS
®
(APRS : Automatic Packet Reporting System).
D-PRS
D
D-PRS is a function that simultaneously sends position
data received from the internal or external GPS receiv-
er, using the slow speed data packet space, along with
voice in the DV mode.
In an analog mode, you can transmit or receive only
voice or data at one time. However a D-PRS capable
radio can transmit or receive message data or GPS po-
sition data at the same time voice is being transmitted
or received.
I-GATE is required to send a position data to the APRS
server.
• The image of D-PRS
<Using a repeater>
Voice, Messages and
D-PRS positions
Voice, Messages and
D-PRS positions
<Simplex>
Voice, Messages and
D-PRS positions

D Operating D-PRS

To transmit in D-PRS, follow the steps below, and
for more details, see the pages listed along with the
steps.
1. "MY"(Your own call sign) entering
2. Receiving GPS data
3. Set GPS TX MODE to D-PRS
Set transceivers prior to the ID-5100A/E to D-PRS.
4. Set TX information (pp. 8-17 to 8-24)
You must set SSID and symbol.
( GPS > GPS TX Mode > D-PRS > TX Format >
Position, Object, item or Weather > SSID, Symbol)

Complete (You can transmit in D-PRS)
®
code.
D-STAR
repeater
I-GATE
Voice, Messages and
D-PRS positions
I-GATE
(p. 6-5)
(p. 8-3)
(p. 8-17)
NOTE:
• If "GPS select" is set to "Manual," the position data
entered in "Manual Position" is change to the D-PRS
format data to transmit. (p. 12-20)
(GPS > GPS Set > Manual Position)
• Please note that if "GPS Auto TX" is set to any other
setting than "OFF," the data is transmitted according
to the set time. (p. 8-41)
(GPS > GPS Auto TX)
Information from an APRS network
D-PRS positions
D-PRS
positions
APRS server
D-PRS positions
For your reference:
In D-PRS, you can transmit earthquake or weather
information, in addition to position information.
(GPS > GPS TX mode > TX format)
[TX format of D-PRS]
• Position (Mobile/Base):
Used to transmit position data.
• Object: Used to transmit specific position data.
(Time information can be included.)
• Item: Used to transmit specific position data.
(Time information cannot be included.)
• Weather: Used to transmit weather information.
8-15
PC
You can check the
location on a map site.
