8
GPS OPERATION
Transmitting D-PRS data (Continued)

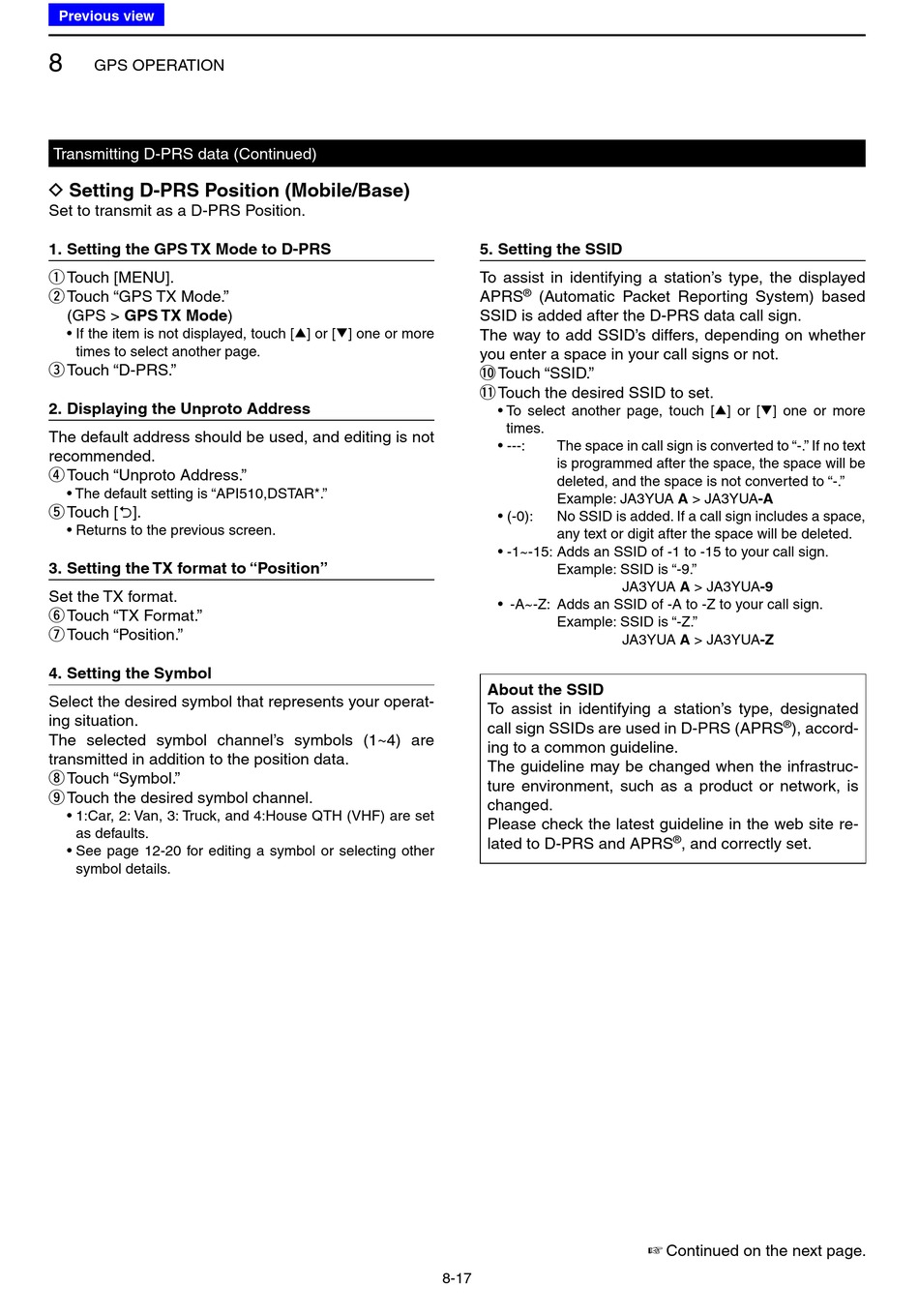

D Setting D-PRS Position (Mobile/Base)

Set to transmit as a D-PRS Position.
1. Setting the GPS TX Mode to D-PRS
Touch [MENU].
q
Touch "GPS TX Mode."
w
(GPS > GPS TX Mode)
• If the item is not displayed, touch [∫] or [√] one or more
times to select another page.
Touch "D-PRS."
e
2. Displaying the Unproto Address
The default address should be used, and editing is not
recommended.
Touch "Unproto Address."
r
• The default setting is "API510,DSTAR*."
Touch [ ].
t
• Returns to the previous screen.
3. Setting the TX format to "Position"
Set the TX format.
Touch "TX Format."
y
Touch "Position."
u
4. Setting the Symbol
Select the desired symbol that represents your operat-
ing situation.
The selected symbol channel's symbols (1~4) are
transmitted in addition to the position data.
Touch "Symbol."
i
Touch the desired symbol channel.
o
• 1:Car, 2: Van, 3: Truck, and 4:House QTH (VHF) are set
as defaults.
• See page 12-20 for editing a symbol or selecting other
symbol details.
5. Setting the SSID
To assist in identifying a station's type, the displayed
®
APRS (Automatic Packet Reporting System) based
SSID is added after the D-PRS data call sign.
The way to add SSID's differs, depending on whether
you enter a space in your call signs or not.
!0 Touch "SSID."
!1 Touch the desired SSID to set.
• To select another page, touch [∫] or [√] one or more
times.
• ---: The space in call sign is converted to "-." If no text
is programmed after the space, the space will be
deleted, and the space is not converted to "-."
Example: JA3YUA A > JA3YUA-A
• (-0): No SSID is added. If a call sign includes a space,
any text or digit after the space will be deleted.
• -1~-15: Adds an SSID of -1 to -15 to your call sign.
Example: SSID is "-9."
• -A~-Z: Adds an SSID of -A to -Z to your call sign.
Example: SSID is "-Z."
About the SSID
To assist in identifying a station's type, designated
call sign SSIDs are used in D-PRS (APRS
ing to a common guideline.
The guideline may be changed when the infrastruc-
ture environment, such as a product or network, is
changed.
Please check the latest guideline in the web site re-
lated to D-PRS and APRS
8-17
JA3YUA A > JA3YUA-9
JA3YUA A > JA3YUA-Z
®
), accord-
®
, and correctly set.
Continued on the next page.
☞
