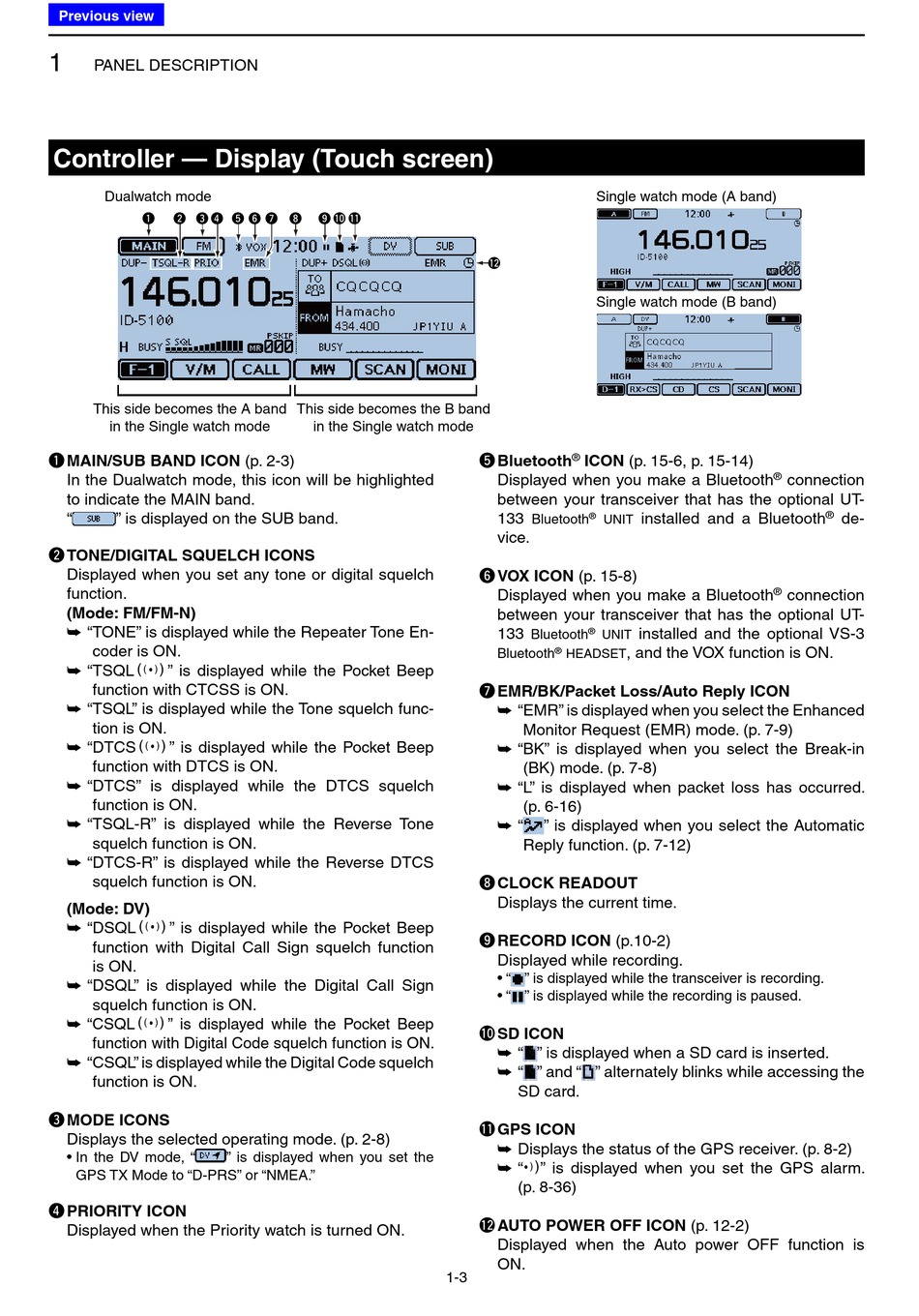

PANEL DESCRIPTION
Controller — Display (Touch screen)
Dualwatch mode
q w e r t y u i
This side becomes the A band
in the Single watch mode
q MAIN/SUB BAND ICON (p. 2-3)
In the Dualwatch mode, this icon will be highlighted
to indicate the MAIN band.
" " is displayed on the SUB band.
w TONE/DIGITAL SQUELCH ICONS
Displayed when you set any tone or digital squelch
function.
(Mode: FM/FM-N)
" TONE" is displayed while the Repeater Tone En-
➥
coder is ON.
S" is displayed while the Pocket Beep
" TSQL
➥
function with CTCSS is ON.
" TSQL" is displayed while the Tone squelch func-
➥
tion is ON.
" DTCS S" is displayed while the Pocket Beep
➥
function with DTCS is ON.
" DTCS" is displayed while the DTCS squelch
➥
function is ON.
" TSQL-R" is displayed while the Reverse Tone
➥
squelch function is ON.
" DTCS-R" is displayed while the Reverse DTCS
➥
squelch function is ON.
(Mode: DV)
" DSQL S" is displayed while the Pocket Beep
➥
function with Digital Call Sign squelch function
is ON.
" DSQL" is displayed while the Digital Call Sign
➥
squelch function is ON.
S" is displayed while the Pocket Beep
" CSQL
➥
function with Digital Code squelch function is ON.
" CSQL" is displayed while the Digital Code squelch
➥
function is ON.
e MODE ICONS
Displays the selected operating mode. (p. 2-8)
• In the DV mode, "
GPS TX Mode to "D-PRS" or "NMEA."
r PRIORITY ICON
Displayed when the Priority watch is turned ON.
o !0 !1
This side becomes the B band
in the Single watch mode
" is displayed when you set the
Single watch mode (A band)
!2
Single watch mode (B band)
t Bluetooth ® ICON (p. 15-6, p. 15-14)
Displayed when you make a Bluetooth
between your transceiver that has the optional UT-
133
Bluetooth ®
unit
vice.
y VOX ICON (p. 15-8)
Displayed when you make a Bluetooth
between your transceiver that has the optional UT-
133
®
Bluetooth unit
®
Bluetooth headset
u EMR/BK/Packet Loss/Auto Reply ICON
" EMR" is displayed when you select the Enhanced
➥
Monitor Request (EMR) mode. (p. 7-9)
" BK" is displayed when you select the Break-in
➥
(BK) mode. (p. 7-8)
" L" is displayed when packet loss has occurred.
➥
(p. 6-16)
" " is displayed when you select the Automatic
➥
Reply function. (p. 7-12)
i CLOCK READOUT
Displays the current time.
o RECORD ICON (p.10-2)
Displayed while recording.
• " " is displayed while the transceiver is recording.
• " " is displayed while the recording is paused.
!0 SD ICON
" " is displayed when a SD card is inserted.
➥
" " and " " alternately blinks while accessing the
➥
SD card.
!1 GPS ICON
Displays the status of the GPS receiver. (p. 8-2)
➥
➥ ì" is displayed when you set the GPS alarm.
"
(p. 8-36)
!2 AUTO POWER OFF ICON (p. 12-2)
Displayed when the Auto power OFF function is
ON.
1-3
®
