2
BASIC OPERATION

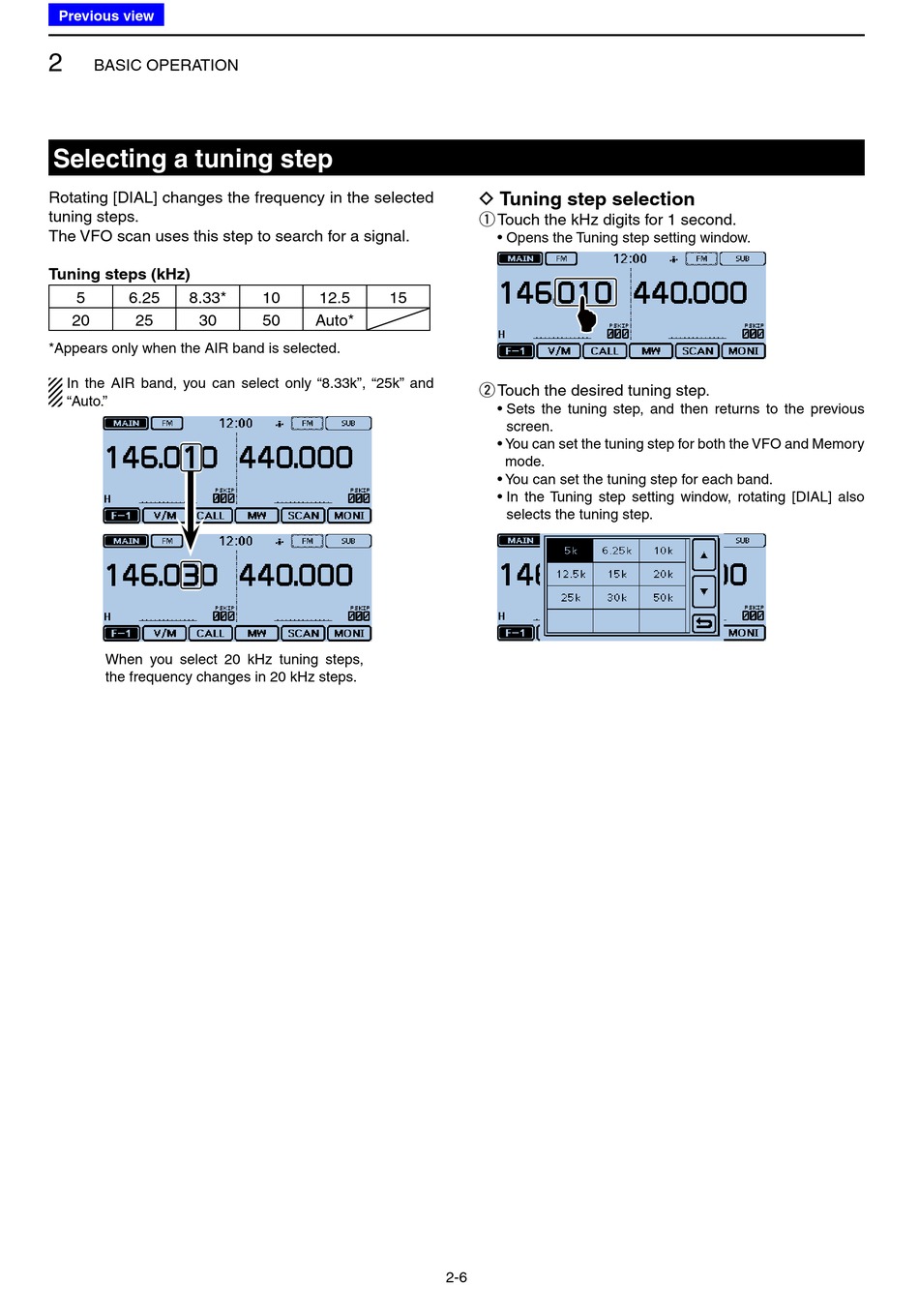

Selecting a tuning step
Rotating [DIAL] changes the frequency in the selected
tuning steps.
The VFO scan uses this step to search for a signal.
Tuning steps (kHz)
5
6.25
8.33*
20
25
30
*Appears only when the AIR band is selected.
In the AIR band, you can select only "8.33k", "25k" and
"Auto."
When you select 20 kHz tuning steps,
the frequency changes in 20 kHz steps.
10
12.5
15
50
Auto*
D
Tuning step selection
Touch the kHz digits for 1 second.
q
• Opens the Tuning step setting window.
Touch the desired tuning step.
w
• Sets the tuning step, and then returns to the previous
screen.
• You can set the tuning step for both the VFO and Memory
mode.
• You can set the tuning step for each band.
• In the Tuning step setting window, rotating [DIAL] also
selects the tuning step.
2-6
