6

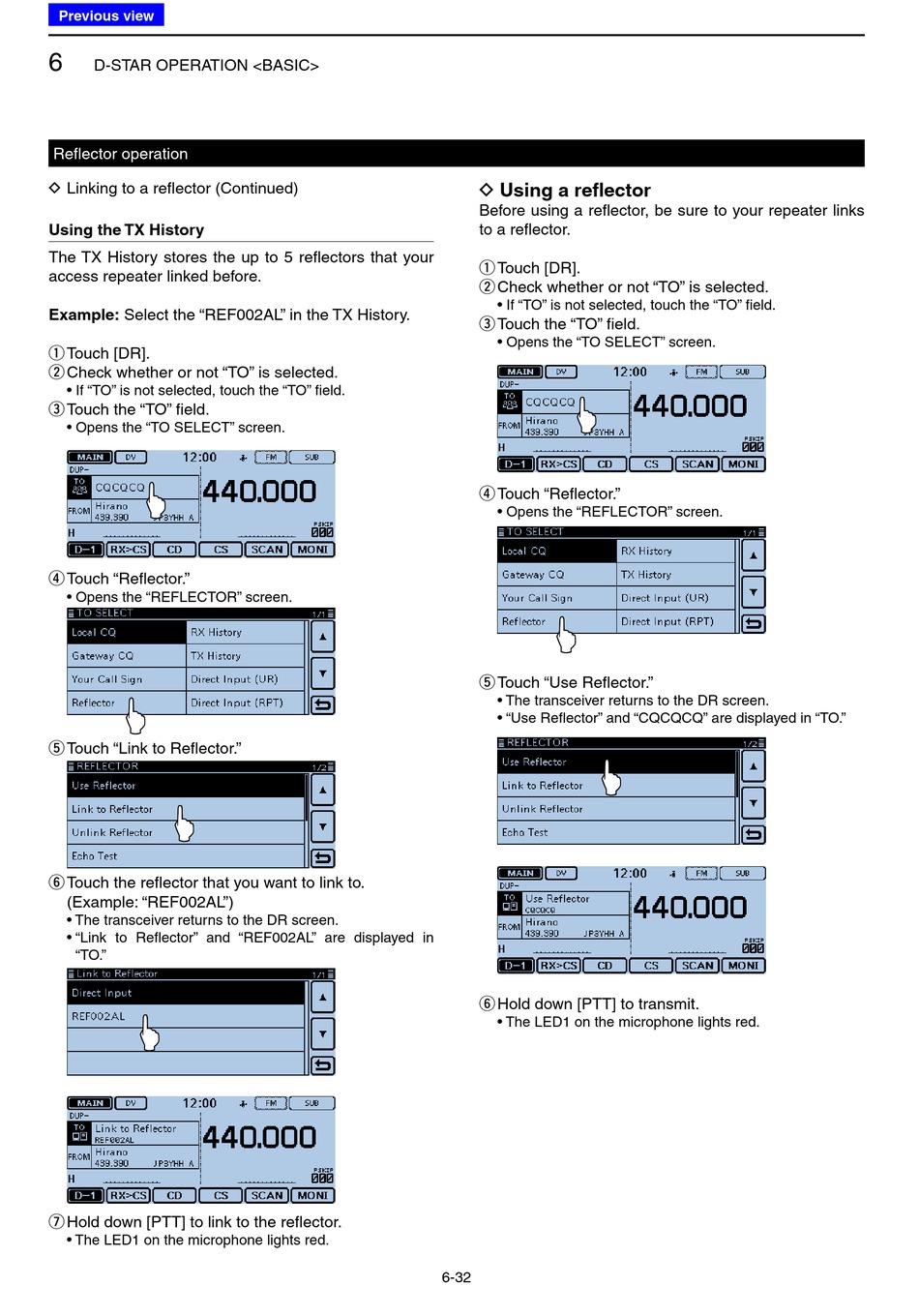

D-STAR OPERATION <BASIC>
Reflector operation
D
Linking to a reflector (Continued)
Using the TX History
The TX History stores the up to 5 reflectors that your
access repeater linked before.
Example: Select the "REF002AL" in the TX History.
Touch [DR].
q
Check whether or not "TO" is selected.
w
• If "TO" is not selected, touch the "TO" field.
Touch the "TO" field.
e
• Opens the "TO SELECT" screen.
Touch "Reflector."
r
• Opens the "REFLECTOR" screen.
Touch "Link to Reflector."
t
Touch the reflector that you want to link to.
y
(Example: "REF002AL")
• The transceiver returns to the DR screen.
• "Link to Reflector" and "REF002AL" are displayed in
"TO."
Hold down [PTT] to link to the reflector.
u
• The LED1 on the microphone lights red.
D Using a reflector
Before using a reflector, be sure to your repeater links
to a reflector.
Touch [DR].
q
Check whether or not "TO" is selected.
w
• If "TO" is not selected, touch the "TO" field.
Touch the "TO" field.
e
• Opens the "TO SELECT" screen.
Touch "Reflector."
r
• Opens the "REFLECTOR" screen.
Touch "Use Reflector."
t
• The transceiver returns to the DR screen.
• "Use Reflector" and "CQCQCQ" are displayed in "TO."
Hold down [PTT] to transmit.
y
• The LED1 on the microphone lights red.
6-32
