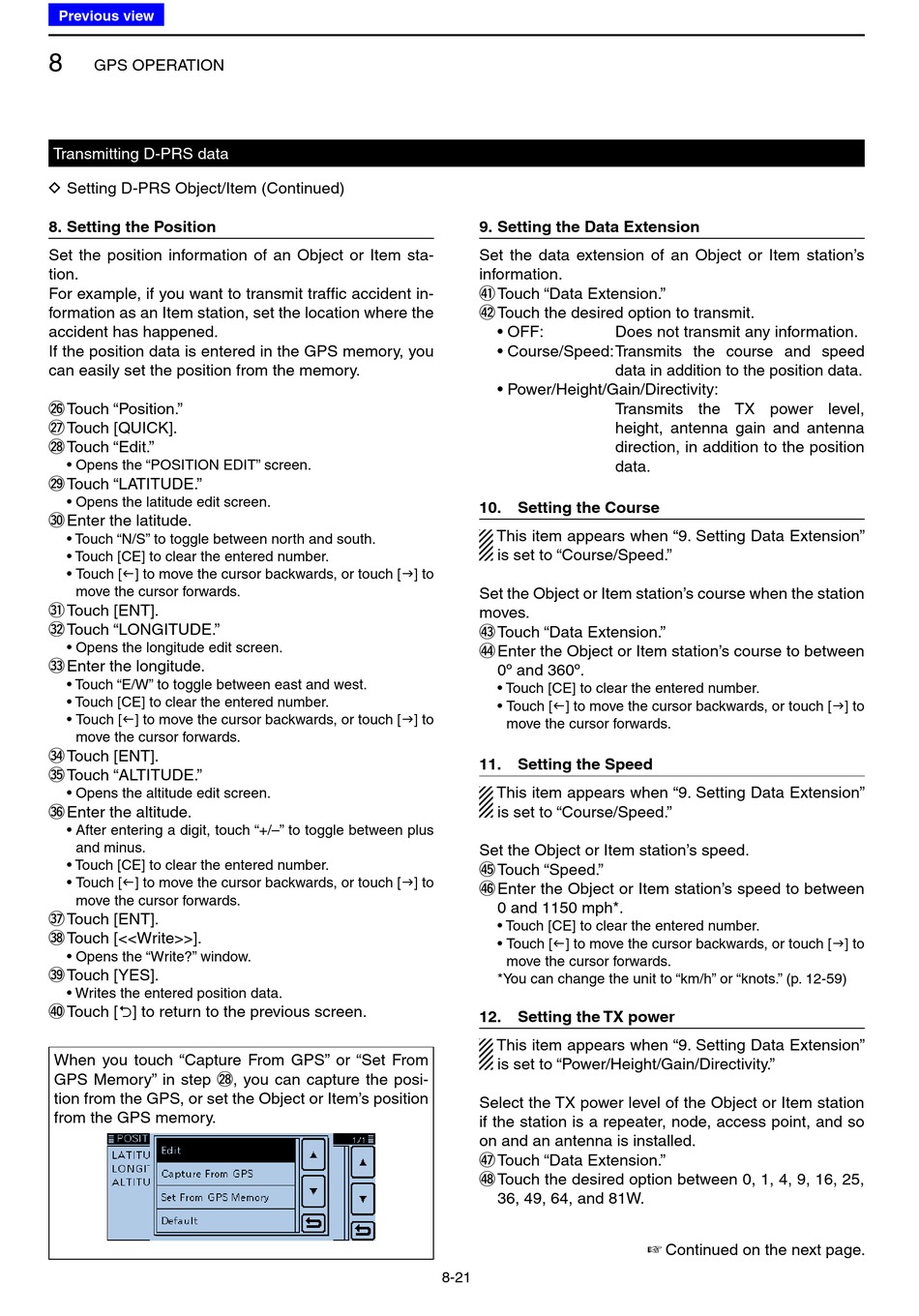

8
GPS OPERATION
Transmitting D-PRS data
D
Setting D-PRS Object/Item (Continued)
8. Setting the Position
Set the position information of an Object or Item sta-
tion.
For example, if you want to transmit traffic accident in-
formation as an Item station, set the location where the
accident has happened.
If the position data is entered in the GPS memory, you
can easily set the position from the memory.
@6 Touch "Position."
@7 Touch [QUICK].
@8 Touch "Edit."
• Opens the "POSITION EDIT" screen.
@9 Touch "LATITUDE."
• Opens the latitude edit screen.
#0 Enter the latitude.
• Touch "N/S" to toggle between north and south.
• Touch [CE] to clear the entered number.
• Touch [] to move the cursor backwards, or touch [] to
move the cursor forwards.
#1 Touch [ENT].
#2 Touch "LONGITUDE."
• Opens the longitude edit screen.
#3 Enter the longitude.
• Touch "E/W" to toggle between east and west.
• Touch [CE] to clear the entered number.
• Touch [] to move the cursor backwards, or touch [] to
move the cursor forwards.
#4 Touch [ENT].
#5 Touch "ALTITUDE."
• Opens the altitude edit screen.
#6 Enter the altitude.
• After entering a digit, touch "+/–" to toggle between plus
and minus.
• Touch [CE] to clear the entered number.
• Touch [] to move the cursor backwards, or touch [] to
move the cursor forwards.
#7 Touch [ENT].
#8 Touch [<<Write>>].
• Opens the "Write?" window.
#9 Touch [YES].
• Writes the entered position data.
$0 0 Touch [] to return to the previous screen.
When you touch "Capture From GPS" or "Set From
GPS Memory" in step @8 , you can capture the posi-
tion from the GPS, or set the Object or Item's position
from the GPS memory.
9. Setting the Data Extension
Set the data extension of an Object or Item station's
information.
$1 Touch "Data Extension."
$2 Touch the desired option to transmit.
• OFF:
• Course/Speed:Transmits the course and speed
• Power/Height/Gain/Directivity:
10. Setting the Course
This item appears when "9. Setting Data Extension"
is set to "Course/Speed."
Set the Object or Item station's course when the station
moves.
$3 Touch "Data Extension."
$4 Enter the Object or Item station's course to between
0º and 360º.
• Touch [CE] to clear the entered number.
• Touch [] to move the cursor backwards, or touch [] to
move the cursor forwards.
11. Setting the Speed
This item appears when "9. Setting Data Extension"
is set to "Course/Speed."
Set the Object or Item station's speed.
$5 Touch "Speed."
$6 Enter the Object or Item station's speed to between
0 and 1150 mph*.
• Touch [CE] to clear the entered number.
• Touch [] to move the cursor backwards, or touch [] to
move the cursor forwards.
* You can change the unit to "km/h" or "knots." (p. 12-59)
12. Setting the TX power
This item appears when "9. Setting Data Extension"
is set to "Power/Height/Gain/Directivity."
Select the TX power level of the Object or Item station
if the station is a repeater, node, access point, and so
on and an antenna is installed.
$7 Touch "Data Extension."
$8 Touch the desired option between 0, 1, 4, 9, 16, 25,
36, 49, 64, and 81W.
8-21
Does not transmit any information.
data in addition to the position data.
Transmits the TX power level,
height, antenna gain and antenna
direction, in addition to the position
data.
Continued on the next page.
☞
