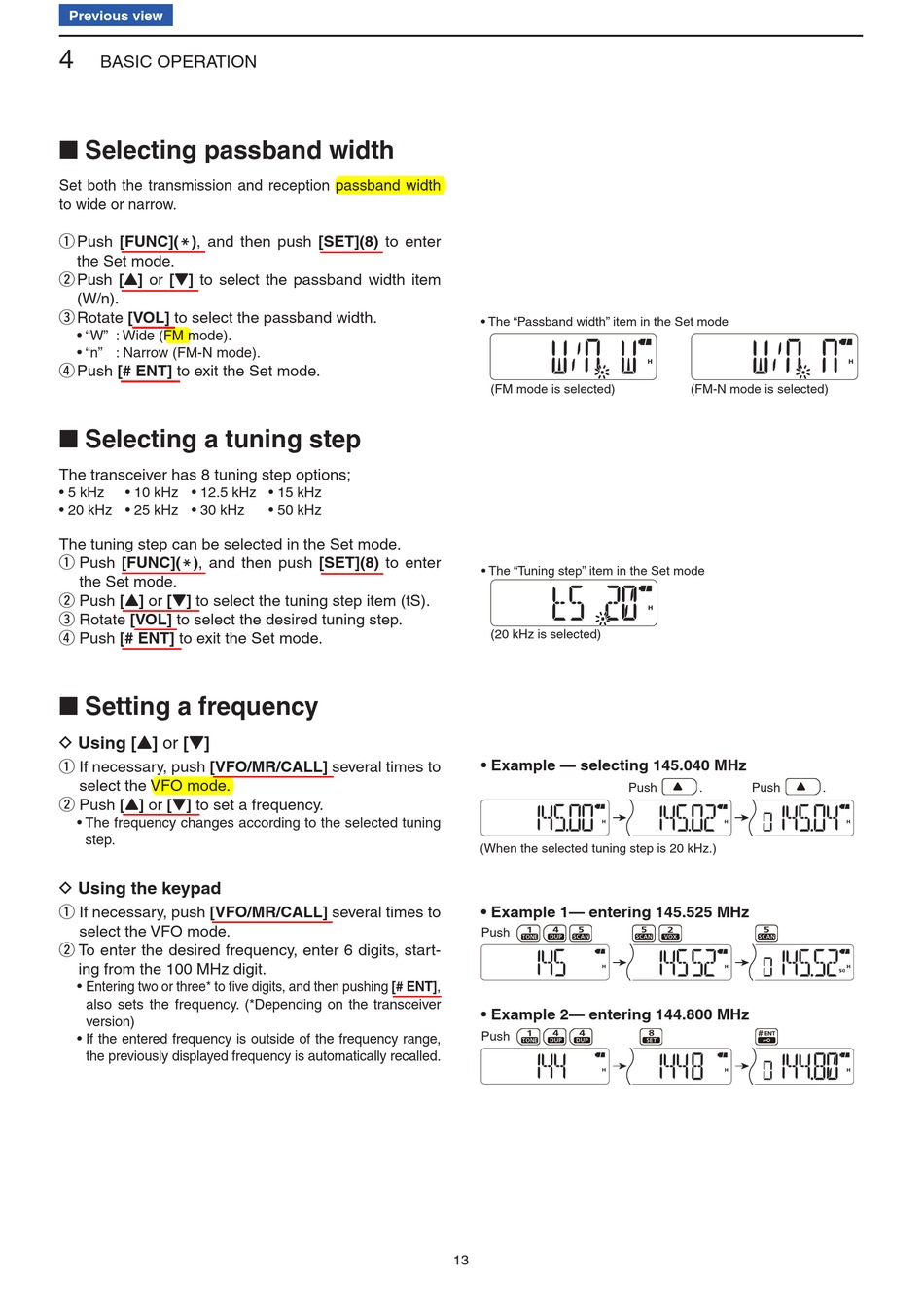

BASIC OPERATION

■ Selecting passband width

Set both the transmission and reception passband width
to wide or narrow.
q Push [FUNC](M), and then push [SET](8) to enter
the Set mode.
w Push [Y] or [Z] to select the passband width item
(W/n).
e Rotate [VOL] to select the passband width.
• "W" : Wide (FM mode).
• "n" : Narrow (FM-N mode).
r Push [# ENT] to exit the Set mode.

■ Selecting a tuning step

The transceiver has 8 tuning step options;
• 5 kHz • 10 kHz • 12.5 kHz • 15 kHz
• 20 kHz • 25 kHz • 30 kHz
The tuning step can be selected in the Set mode.
q Push [FUNC](M), and then push [SET](8) to enter
the Set mode.
w Push [Y] or [Z] to select the tuning step item (tS).
e Rotate [VOL] to select the desired tuning step.
r Push [# ENT] to exit the Set mode.

■ Setting a frequency

D Using [Y] or [Z]
q If necessary, push [VFO/MR/CALL] several times to
select the VFO mode.
w Push [Y] or [Z] to set a frequency.
• The frequency changes according to the selected tuning
step.
D Using the keypad
q If necessary, push [VFO/MR/CALL] several times to
select the VFO mode.
w To enter the desired frequency, enter 6 digits, start-
ing from the 100 MHz digit.
• Entering two or three* to fi ve digits, and then pushing [# ENT],
also sets the frequency. (*Depending on the transceiver
version)
• If the entered frequency is outside of the frequency range,
the previously displayed frequency is automatically recalled.
• 50 kHz
• The "Passband width" item in the Set mode
(FM mode is selected)
• The "Tuning step" item in the Set mode
(20 kHz is selected)
• Example — selecting 145.040 MHz
(When the selected tuning step is 20 kHz.)
• Example 1— entering 145.525 MHz
Push
• Example 2— entering 144.800 MHz
Push
13
(FM-N mode is selected)
Push . Push .
