9D-9 Wipers / Washers:
2) Connect coupler to rear wiper motor
3) Install rear end door trim referring to "Rear End Door
Lock Assembly Removal and Installation: in Section
9F".

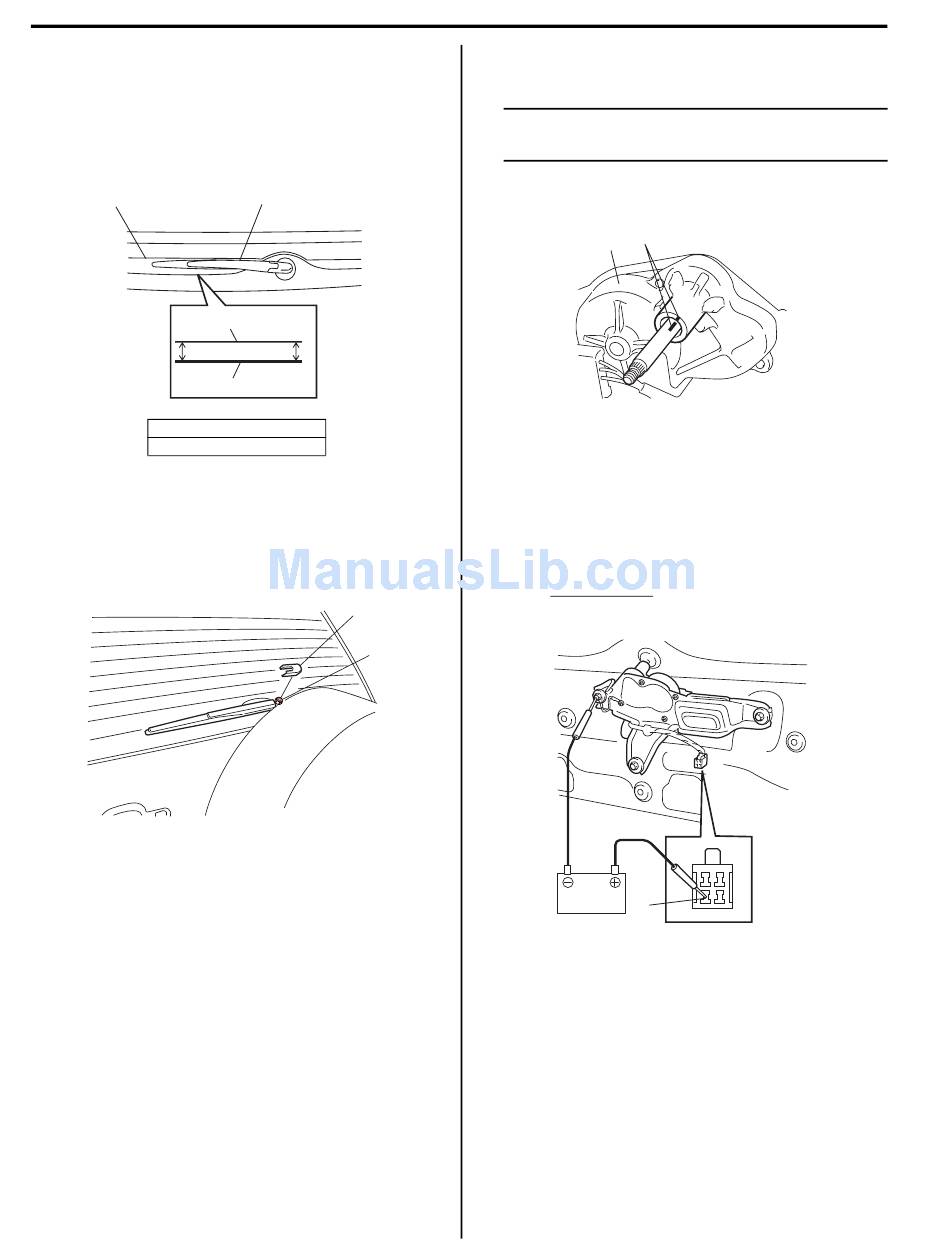

4) Install rear wiper arm with blade assembly (1) to
specified position as shown in figure.
3
a
2. Rear wiper blade
3. Defogger wire
5) Tighten rear wiper arm nut to specified torque, and
then install arm cover (1).
Tightening torque
Rear wiper arm nut (a): 8 N·m (0.8 kgf-m, 6.0 lb-
ft)
6) Connect negative (–) cable to battery.
1
3
b
2
a = b
I5JB0A940015-01
1
(a)
I5JB0A940016-01

Rear Wiper Motor Inspection (If Equipped)

NOTE
Make sure that battery voltage is 12 V or
more.
1) Make a mark (1) on rear wiper motor (2) stop
position as shown.
1
2
2) Check rear wiper motor for operation as follows.
• For motor operation
a. Connect battery positive terminal to terminal
"1" and its negative terminal to body ground.
b. Check motor revolution speed as
specification. If check result is not as
specified, replace motor.
Specification
33 – 43 r/min (rpm)
1
S5JB0A9406007
I5JB0A940017-01
I5JB0A940018-01
