9K-13 Body Structure:

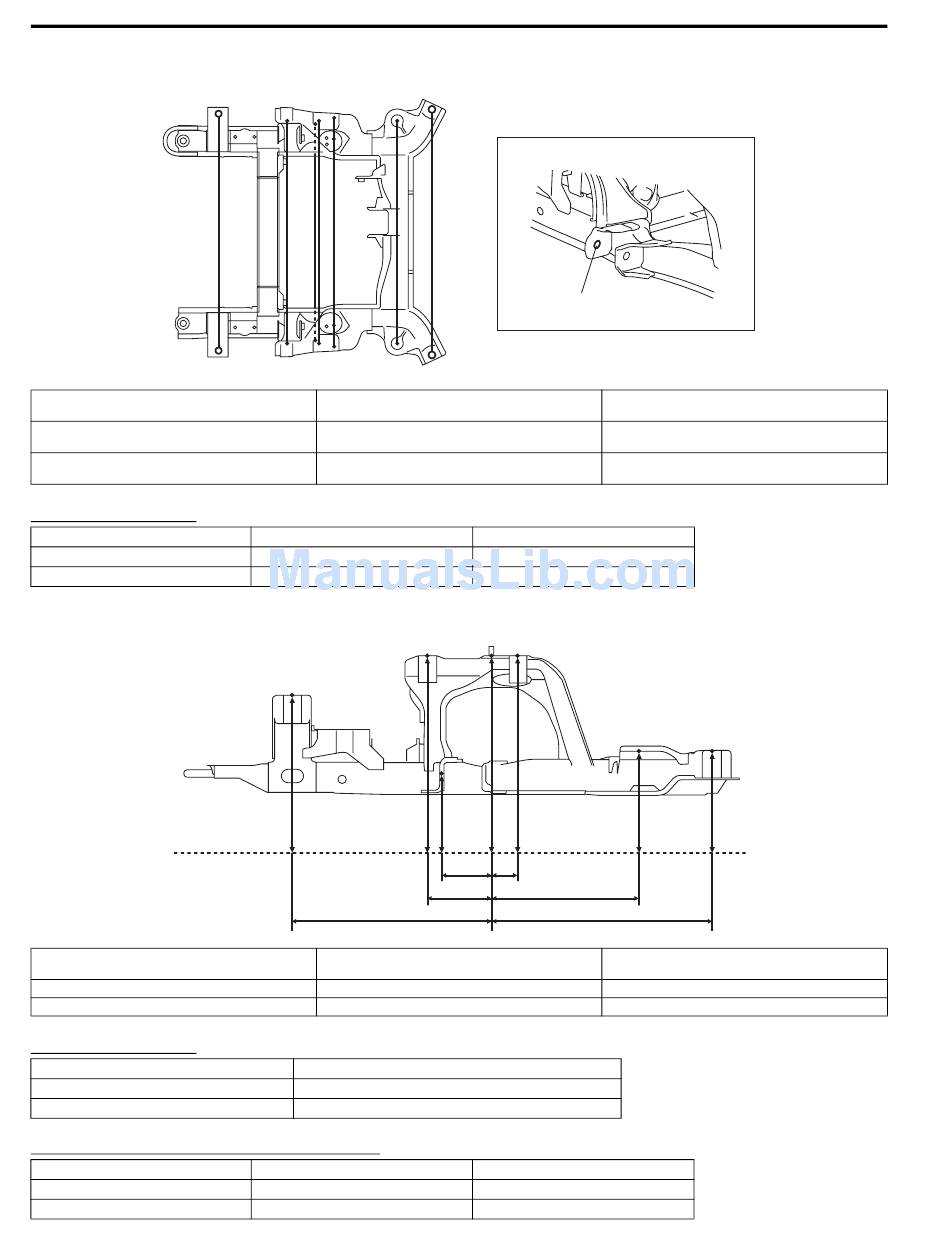

Front Suspension Frame
a (a'). Front suspension frame installation front
side bolt hole
b (b'). Front suspension frame installation bolt
hole
c (c'). Front suspension arm installation front side
hole
Hole to hole distance
a-a': 830 mm (32.68 in.)
b-b': 840 mm (33.07 in.)
c-c': 780 mm (30.71 in.)
"A"
a. Front suspension frame installation front side
bolt hole
b. Front suspension frame installation bolt hole
c. Front suspension arm installation front side hole
Hole to hole distance
a-d: 349 mm (13.74 in.)
b-d: 110 mm (4.33 in.)
c-d: 80 mm (3.15 in.)
Projection dimension from standard line "A"
a: 193 mm (7.60 in.)
b: 263 mm (10.35 in.)
c: 49 mm (1.93 in.)
a b
f
d e
c
c'
d' e'
b'
a'
d (d'). Front suspension frame stud
e (e'). Front suspension frame installation bolt
hole
f (f'). Front suspension arm installation rear side
hole
d-d': 790 mm (31.10 in.)
e-e': 794 mm (31.26 in.)
f-f': 780 mm (30.71 in.)
a
d. Front suspension frame stud
e. Front suspension frame installation bolt hole
f. Front suspension arm installation rear side hole
d-e: 51 mm (2.01 in.)
d-f: 275 mm (10.83 in.)
d-g: 395 mm (15.55 in.)
d: 263 mm (10.35 in.)
e: 263 mm (10.35 in.)
f: 96 mm (3.78 in.)
g
f'
g'
g-g': 860 mm (33.86 in.)
d
b e
c
g: 95 mm (3.74 in.)
c'
g (g'). Front suspension frame installation rear
side bolt hole
f
g
g. Front suspension frame installation rear side
bolt hole
I5JB0A9B0013-01
I5JB0A9B0014-01
