9J-5 Hood / Fenders / Doors:

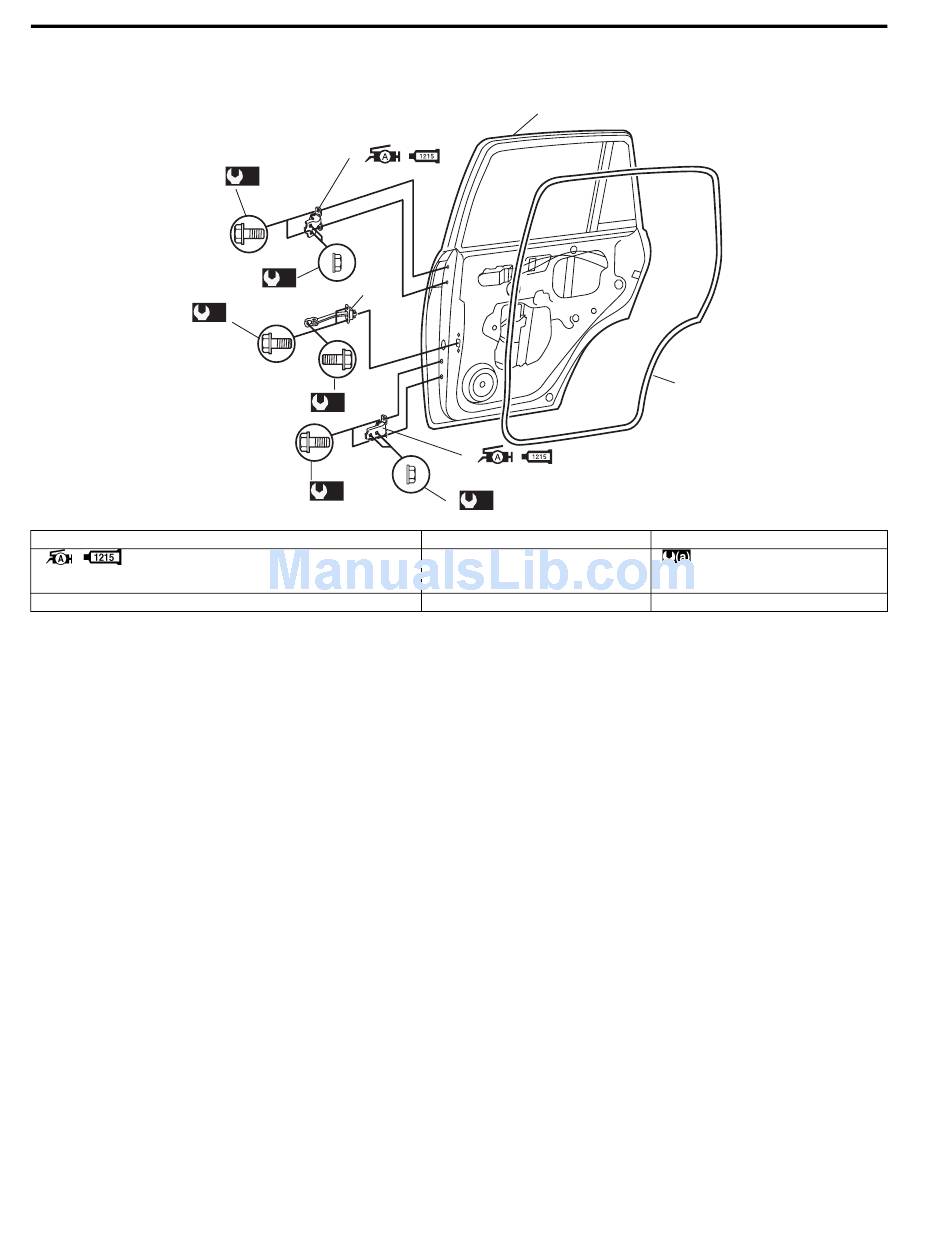

Rear Door Assembly Components

1. Door panel
2. Door hinge
: Apply lithium grease 99000-25010 to rotating part.
: Apply sealant 99000-31110 to contact face.
3. Door open stopper

Rear Door Assembly Removal and Installation

Refer to "Front Door Assembly Removal and Installation: " as removal and installation procedures are basically the
same. However, note the following.
• Tighten rear door hinge bolts and nuts to specified torque referring to "Rear Door Assembly Components".
2
4
(a)
7
(a)
3
(a)
5
(a)
4
(a)
1
2
7
(a)
4. Rear door hinge bolt
5. Door open stopper bolt
6. Rear door opening weather-strip
S5JB0A9A06007
6
I5JB0A9A0008-01
7. Rear door hinge nut
: 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
S5JB0A9A06008
