5.5.26 Low Voltage Power Supply (LVPS)

UV HAZARD! Wear authorized protective clothing whenever the internal lamp door is
opened.
(Estimated Replacement Time: 30 minutes)
1. Remove the top lid. Refer to
2. Remove the side skin service door. Refer to
3. Loosen the four captive screws securing the LVPS cover (Figure 5-37).
4. Disconnect the four DC harnesses (Figure 5-37).
5. Lift and slide the LVPS out of the projector in such a way that the PEM nut is cleared (Figure 5-38).
6. Disconnect the two AC harnesses using the inline connectors (Figure 5-39).
CP2210 Service Manual
020-100556-04 Rev. 1 (01-2012)
5.5.5 Top Lid, on page 5-7.
5.5.9 Side Skin Service Door, on page

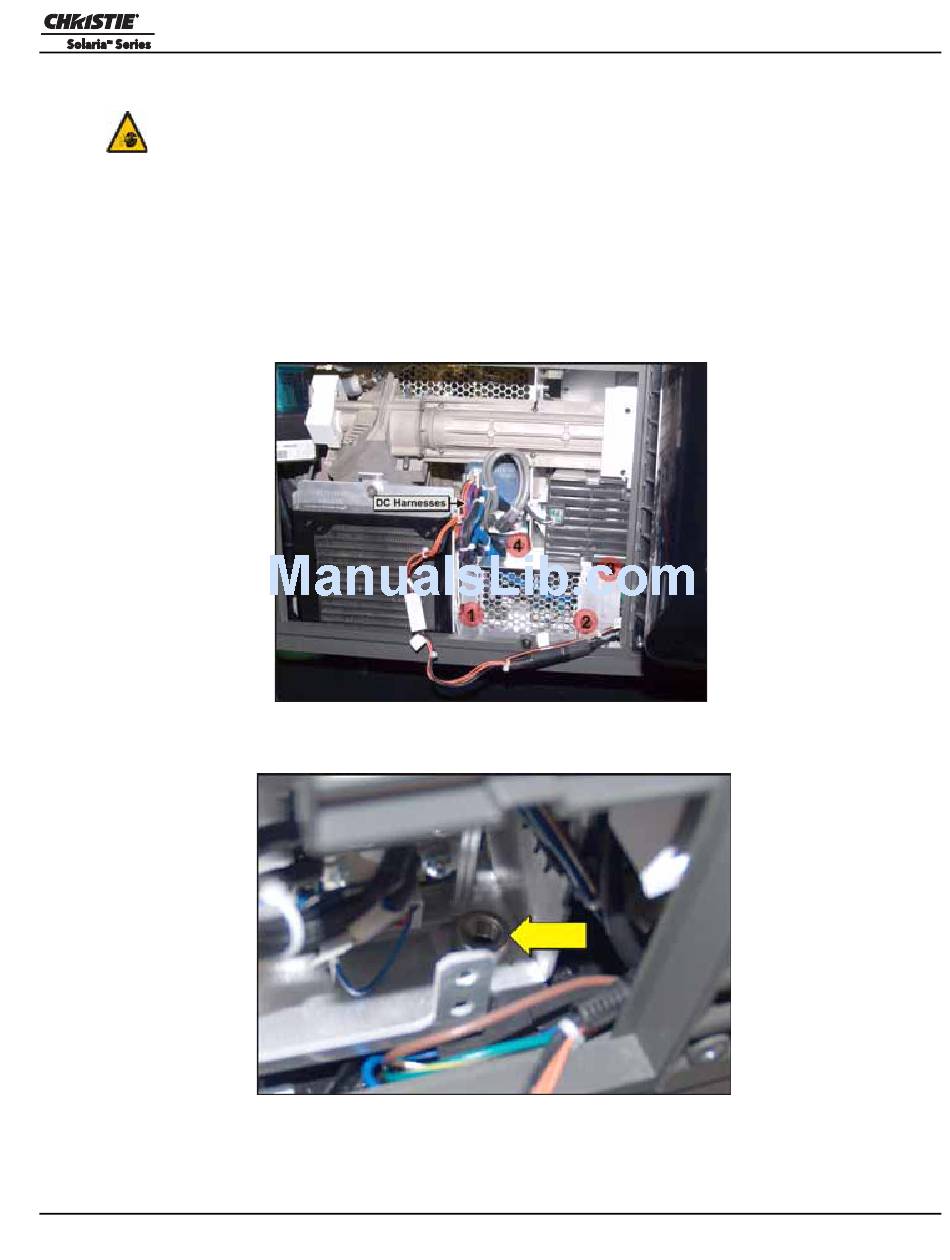

Figure 5-37 Remove LVPS
Figure 5-38 Clear PEM Nut
Section 5: Parts and Module Replacement
5-9.
5-27
