CP2210
U s e r M a n u a l
020-100410-07

Advertisement

Table of Contents
loading

Related Manuals for Christie CP 2210

Summary of Contents for Christie CP 2210

  • Page 1 CP2210 U s e r M a n u a l 020-100410-07...
  • Page 3 CP2210 U S E R M A N U A L 020-100410-07...
  • Page 4 Performance specifications are based on information available at the time of printing. Christie makes no warranty of any kind with regard to this material, including, but not limited to, implied warranties of fitness for a particular purpose.

  • Page 5: Table Of Contents

    Table of Contents 1: Introduction 1.1 Labels and Marking ........................1-1 1.2 General Precautions ........................1-1 1.2.1 AC/Power Precautions......................1-2 1.2.2 Power Cords and Attachments.....................1-2 1.2.3 Lamp Precautions ........................1-2 1.3 Contact Your Dealer ........................1-3 2: Installation and Setup 2.1 What’s In the Box? ........................2-1 2.2 Projector Components .........................2-1 2.2.1 Air Filter Cover and Air Filter.....................2-1 2.2.2 Douser..........................2-1...
  • Page 6 Table of Contents 4.6 Adjust Horizontal Boresight ......................4-3 4.7 Adjust DMD Convergence ......................4-5 4.8 Fold Mirror Adjustment.......................4-5 4.9 Color Calibration .........................4-5 4.10 Electronic Screen Masking ......................4-6 4.11 Work with 3D ..........................4-6 4.11.1 Display Requirements ......................4-6 4.11.2 Hardware Setup........................4-6 4.11.3 Install a 3D Server with an YCxCz Interface ..............4-7 4.11.4 Edit the Default 3D Lamp File...................4-7 4.11.5 Define a Measured Color Gamut Data File ...............4-7 4.11.6 Edit the 3D Flat 1998 x 1080 Channel................4-7...
  • Page 7 Table of Contents 6: Projector Menus 6.1 The Touch Panel Controller (TPC) .....................6-1 6.2 Main Screen ..........................6-2 6.3 Open the On Screen Keyboard ....................6-4 6.4 User Access and Rights .......................6-5 6.5 Status Window..........................6-7 6.6 Alarm Window ..........................6-11 6.7 Interrogator Window ........................6-12 6.8 SMPTE Errors Window.......................6-13 6.9 System Logs Window........................6-14 6.10 Server Test Window ........................6-15...
  • Page 8 Table of Contents 6.16.5 IMB Marriage Window......................6-53 6.17 About Window..........................6-54 6.18 Help Window ..........................6-55 7: Maintenance 7.1 Inspect Ventilation ........................7-1 7.2 Fill the Coolant Reservoir......................7-1 7.3 Inspect the Optional Exhaust Duct (P/N: 119-103105-xx)............7-1 7.4 Inspect the Lamp..........................7-2 7.5 Inspect and Clean Optics ......................7-2 7.5.1 Clean the Lens........................7-2 7.5.2 Clean the Lamp Reflector ....................7-3 7.6 Clean the Radiator Filter......................7-3...
  • Page 9 Table of Contents A: Serial API Commands A.1 Function Codes ..........................A-1 B: Specifications B.1 Display ............................B-1 B.1.1 Panel Resolution and Refresh Rate ..................B-1 B.1.2 Achievable Brightness (Measured at Screen Center)............B-1 B.1.3 Achievable Contrast Ratio ....................B-1 B.1.4 Color and Gray Scale ......................B-1 B.1.5 White Point..........................B-1 B.1.6 Gamma ..........................B-1 B.2 Source Signal Compatibility .......................B-2...

  • Page 11: Labels And Marking

    1 Introduction This manual is intended for professionally trained operators of Christie high-brightness projection systems. These operators are qualified to replace the lamp and air filter, but should not attempt to install or service the projector. Only accredited Christie technicians who are knowledgeable about the hazards associated with high-voltage, ultraviolet exposure, and the high temperatures generated by the projector lamp are authorized to assemble, install, and service the projector.

  • Page 12: Ac/Power Precautions

    Use only an AC power cord recommended by Christie. DO NOT attempt operation if the AC supply and cord are not within the specified voltage and power range. NOTICE: Use only the attachments and/or accessories recommended by Christie. Use of others may result in the risk of fire, shock and personal injury.

  • Page 13: Contact Your Dealer

    AC and opening the lamp door. Contact Your Dealer If you encounter a problem with your Christie projector, contact your dealer. To assist with the servicing of your projector, enter the information in the tables and keep this information with your records.

  • Page 15: 2: Installation And Setup

    2 Installation and Setup This section provides information and procedures for positioning and installing the projector. You need these tools to install the CP2210 projector: • 19 mm wrench • Protective safety clothing (if you are replacing the lamp) • Lamp What’s In the Box? These items are included with your CP2210 projector: •...

  • Page 16: Led Status Indicators

    • Ethernet: Use the 10Base-T/100Base-TX Ethernet port for network connection to the projector. • GPIO: Connect external I/O devices, such as the Christie ACT, for remote control of a limited number of projector functions. See 3.4 Connecting Devices to the GPIO Port...
  • Page 17 Section 2: Installation and Setup • Marriage: Marriage must be established to allow the projector to play encrypted content. This means the security boundaries SPB1 and SPB2 are physically and electrically connected and that marriage is monitored 24/7. Marriage is initiated from a Wizard application on the TPC. A user with the appropriate credentials is prompted to press the Marriage button to establish marriage.

  • Page 18: Touch Panel Controller (Tpc)

    When using the rack stand the foot lock brackets are a mandatory safety measure to prevent the projector from tipping. 2) The rack stand feet are used for leveling only and not for tilting the projector. To prevent tipping ensure the required accessories supplied by Christie are used. CP2210 User Manual...

  • Page 19: Adjust Tilt And Level The Projector

    Section 2: Installation and Setup 2. Position the projector at an appropriate throw distance (projector-to-screen distance) and vertical position. Ideally, center the projector with the theatre screen. If competing for space with an already present film projector, aim the projector slightly off-center, as shown in Figure 2-1. This will slightly increase side keystoning, but will minimize the horizontal lens offset required.

  • Page 20: Mount Touch Panel Controller (Tpc)

    Section 2: Installation and Setup Mount Touch Panel Controller (TPC) The TPC comes pre-assembled with the base and mounting arm. If you have a TPC-660E check the main switch on the back of the TPC. Ensure it is connected properly. 1.

  • Page 21: Connect Optional Exhaust Ducting

    Section 2: Installation and Setup Connect Optional Exhaust Ducting If the room the projector is installed in is not equipped to ventilate up to 11,000 BTU (per hour) the optional duct (P/N: 119-103105- xx) must be installed to emit the constant stream of warm exhaust air from the projector to the outside of the building.

  • Page 22: Install Primary Zoom Lens

    Section 2: Installation and Setup Install Primary Zoom Lens The lens prevents containments from entering the projector. 1. Turn the lens clamp to the OPEN position (Figure 2-6). 2. Remove the two hex screws from the lens mount (Figure 2-7). 3.

  • Page 23: Install Wide Converter Lens

    2.11 Install Lamp DANGER • Only personnel trained specifically by Christie on lamp replacement and lamp safety may handle the lamp. High-pressure lamp may explode if improperly handled. • Always wear Christie approved protective safety clothing (P/N: 598900-095) whenever the internal lamp door is open or while handling the lamp.

  • Page 24: Connect Power

    Section 2: Installation and Setup 1. If the projector is operating, turn it off and allow it to cool a minimum of 10 minutes. 2. Turn the breaker switch for the projector off. 3. Disconnect the projector from AC power. 4.
  • Page 25 Section 2: Installation and Setup This is a manual power-up procedure. Some installations may include an automation system that controls lamp ignition in conjunction with other theater variables, such as house lights, audio and the start of the feature from a digital media storage device or server.

  • Page 27: 3: Connecting Devices To The Projector

    3 Connecting Devices to the Projector This section provides information and procedures for connecting input devices to the projector. You connect input devices to the input panel located on side of the projector Connect a Cinema Server Cinema servers, such as digital media storage devices or non-cinema sources, such as computers reside outside the projector and are connected to one of the ports on the Projector Intelligence Board (PIB) located on the left (operator’s) side of the projector.

  • Page 28: Connect A Computer Or Server

    Section 3: Connecting Devices to the Projector Connect a Computer or Server To communicate with the projector from a computer, server or an existing network, connect the equipment to the Ethernet hub or switch. Figure 3-3 Connecting Communications Connecting Devices to the SCCI Port The Simple Contact Closure Port (SCCI) port is a DB-9 (male) connector is located on the PIB input panel and is used to control a limited set of projector functionality through contact closures.

  • Page 29: Connecting Devices To The Gpio Port

    Section 3: Connecting Devices to the Projector Health Output Open Collector Low when one of the following interlocks is tripped or condi- tions present: • Lamp Door • Lamp Blower • Extractor • Tamper • Marriage • Ballast Communication The show will not be able to play. Open Collector High when all inter- locks relevant to CineLink and Lamp are not tripped.
  • Page 30 Section 3: Connecting Devices to the Projector As shown in the tables, each available pairing of pins (±) is defined as either an input or output. Four inputs and three outputs have already been predefined. Configure a pin as an input if you want the projector to respond to an incoming signal, or as an output if you want an external device to respond to the projector.

  • Page 31: Connecting Devices To The 3D Connector

    Section 3: Connecting Devices to the Projector Connecting Devices to the 3D Connector The 3D connector is a 15-pin D-sub connector (female) located on the PIB input panel. This table lists the control functions available through the 3D connector. SIGNAL NAME DIRECTION DESCRIPTION +12V...

  • Page 33: 4: Adjusting The Image

    4 Adjusting the Image This section provides information and procedures for adjusting the projector image. Maximize Light Output To ensure optimal operation and peak screen brightness, use LampLOC to adjust the lamp position whenever ™ you install a new lamp in the projector. When you complete the LampLOC adjustment, the lamp is centered and is the correct distance from the illumination system.

  • Page 34: Basic Image Alignment

    Section 4: Adjusting the Image Basic Image Alignment This procedure ensures that the image reflected from the digital micromirror device (DMD) is parallel and centered with the lens and screen. This procedure must be completed before you complete a boresight adjustment.

  • Page 35: Adjust Horizontal Boresight

    Section 4: Adjusting the Image It is recommended that top/bottom boresight be completed before horizontal boresight. NOTE: Typically, horizontal boresight does not require adjustment. It should only be adjusted if a large horizontal angular offset to the screen is required. Cap Screw: Adjusts Top/Bottom Boresight Set Screw: Locks/Unlocks Cap Screw Figure 4-2 Top/Bottom Image Adjustment...
  • Page 36 Section 4: Adjusting the Image 1. When top/bottom boresight is complete, adjust the image at the left and right sides of the screen. Right Boresight Cap Screw Right Boresight Set Screw Left Boresight Cap Screw Left Boresight Set Screw Figure 4-3 Left/Right Image Adjustment 2.

  • Page 37: Adjust Dmd Convergence

    Normally, the three colors should overlap precisely to form pure white lines throughout the image and one or more poorly converged individual colors may appear adjacent to some or all of the lines. Contact your Christie accredited service technician to correct DMD convergence issues.

  • Page 38: Electronic Screen Masking

    Section 4: Adjusting the Image 4.10 Electronic Screen Masking You can use the masking tool to correct image edge blanking. The masking tool produces results that are similar to filing the aperture plate in a film projector. After you create the Flat and Scope screen files you can use them in multiple channels.

  • Page 39: Install A 3D Server With An Ycxcz Interface

    Section 4: Adjusting the Image 4.11.3 Install a 3D Server with an YCxCz Interface 1. Install and connect your 3D hardware to the projector. 2. Edit and apply the default 3D lamp file: a. Tap Menu > Advanced Setup > Lamp Power/LiteLOC Setup. b.

  • Page 40: Edit The 3D Scope 2048 X 858 Channel

    Section 4: Adjusting the Image c. Select 1998x1080 1.85 Flat in the Source File list. d. Select Flat in the Screen File list. 4. Tap Config 2 in the left pane and edit these settings: a. Select 3D Onsite in the Measured Color list. If this option is not available, see 4.11.5 Define a Mea- sured Color Gamut Data File.

  • Page 41: Display 3D Diagnostic Test Patterns

    Section 4: Adjusting the Image d. Select True in the 3D Sync Polarity list. e. Enter 430 in the Dark Time field or enter a value appropriate for your 3D hardware. f. Enter -120 in the Output Delay field or enter a value appropriate for your 3D hardware. g.
  • Page 42 Section 4: Adjusting the Image FRAME 1 - 100% white field box in FRAME 2 - 100% white field box in 100% black field FRAME 4 - 100% white field box in FRAME 3 - 100% white field box in 100% black field 100% black field Figure 4-7 RGB-12bit-3D Four Quadrant Test Pattern...
  • Page 43 Section 4: Adjusting the Image FRAME 1 - 100% white field with FRAME 2 - 50% white field with last lines 25% white and 75% black last line 75% white and 25% black FRAME 3 - 25% white field with FRAME 4 - 12.5% white field with last line 25% white and 75% black last line 75% white and 25% black...

  • Page 44: Verify 3D Cinema Content

    Section 4: Adjusting the Image 4.11.9 Verify 3D Cinema Content 1. Put on a pair of 3D glasses. 2. Play the 3D content. 3. Verify the left and right eye display correctly. 4. Put the 3D glasses on upside down. 5.

  • Page 45: Present Movies

    Section 4: Adjusting the Image Ghosting / Cross-talk 1. Tap Menu > Channel Setup. 2. Select a 3D channel in the Channel Name list. 3. Tap 3D Control in the left pane. 4. Raise or lower the Dark Time field value. 5.

  • Page 46: Use An Anamorphic Lens

    Section 4: Adjusting the Image 4.12.2 Use an Anamorphic Lens The standard zoom lens on the projector can display flat images because the native resolution and format of the projector closely match the flat aspect ratio. The installation of an optional anamorphic lens requires that the source material is resized to fill the digital micromirror device (DMD) and the pixels are horizontally stretched so that the full 2.39 image width appears on-screen.

  • Page 47: Masking

    Section 4: Adjusting the Image 4.12.4 Masking You use masking to conceal the unused edges of a screen. These are the two types of masking: • Top Masking – Movable flat black panels or curtains are installed along the top edge of the screen. You raise the curtain for flat images, and you lower the curtain for scope images.

  • Page 49: Turn The Projector On

    5 Operation This section describes how to operate the CP2210 projector. Turn the Projector On DO NOT attempt to turn the projector on if the AC supply is not within the WARNING specified voltage range. 1. Ensure the circuit breaker for the projector is ON. 2.

  • Page 50: Projector Power States

    Section 3: Operation Projector Power States The following table identifies what occurs when the TPC’s Power and Lamp buttons are tapped during any of the projector’s 4 main power states. See Table 5.1. Table 5.1 Projector Status when any TPC Lamp or Power Buttons Selected Projector’s Current State: Cooling Down Standby Power Mode...

  • Page 51: Work With The Lamp

    Section 3: Operation Work with the Lamp This section provides information and procedures for optimizing lamp performance. Optimizing lamp performance can ensure you receive the brightest, most uniform image possible for the life of the lamp. 5.5.1 Adjust Lamp Power 1.

  • Page 52: View Lamp Information

    Section 3: Operation 8. Run LiteLOC™ or LampLOC™ if required. 5.5.5 View Lamp Information To view information on the lamps previously installed in the projector, or to add a new lamp: Tap Menu > Advanced Setup > Lamp History. 5.5.6 Receive an Alarm when a Lamp Reaches Its Expiry Date To receive an alarm when the lamp reaches its operational limit: 1.

  • Page 53: Work With Lenses

    Section 3: Operation Work with Lenses The lens mount secures the primary zoom lens to the projector and provides setup adjustments for correct boresight, and manually controlled focus, zoom and offsets. See Section 4.3 Basic Image Alignment for all lens installation and boresight instruction.

  • Page 54: Reset The Ils

    Section 3: Operation 3. Tap OK. 4. Adjust the focus, Horizontal (X) and Vertical (Y) offset, and zoom by tapping the applicable button. NOTE: This does not over-write the system settings for the ILS. If is selected again, Enabled Automatic ILS the ILS will position the lens to the saved channel settings.

  • Page 55: 6: Projector Menus

    6 Projector Menus This section provides information and procedures for using projector menus. You can use projector menus to adjust projector settings and view status information. The Touch Panel Controller (TPC) The TPC is a touch-sensitive screen that you use to control the projector. You can use the TPC to turn the projector and lamp on or off, select channels, and view status information.

  • Page 56: Main Screen

    Section 6: Projector Menus Main Screen Use the Main screen of the Touch Panel Controller (TPC) to access power, lamp, douser, auxiliary lens, lens adjust, and test pattern settings. You can also select channels. Status LED Title Bar Status Bar Navigation Button Figure 6-1 Main Panel Table 6.1 Main Panel...
  • Page 57 Section 6: Projector Menus Control Description 4: Power Turns the projector on or off. Press off to place the projector in stand-by mode. To prevent accidental activation, you must press and hold the on or off buttons. Power OFF Power ON A message displays in the title bar when the projector turns on or off.

  • Page 58: Open The On Screen Keyboard

    Section 6: Projector Menus Control Description 11: Status Bar * The Menu button is the starting point to the user windows. Tapping this button opens a 2 layer menu system populated with available windows based on your Menu Button permission level. The bottom right corner of every window shows the logged in user, the active channel, as well as the status of the Power, Lamp, Douser and Aux Lens.

  • Page 59: User Access And Rights

    Section 6: Projector Menus User Access and Rights This table lists the Touch Panel Controller (TPC) permissions: Table 6.2 User Levels Permission Description Can view basic projector status, diagnostic information, and software version information. This is the Status default permission for serial communications. Can activate channels and test patterns and view detailed diagnostic logs and server errors.
  • Page 60 Section 6: Projector Menus Menu Status Operator Advanced Administrator Service Marriage Administrator Setup - Preferred Channel Setup - Preferred Test Pattern Setup - Preferences - Content Devices Configuration - Time Setup - Communications Configuration - Network Devices Setup - GPIO Setup - Foot Lamberts Calibration - User Accounts...

  • Page 61: Status Window

    Section 6: Projector Menus Status Window You use the Status window to view projector status information. To view the Status window, tap Menu > Status. The right pane displays a list of projector items and their status. The left pane provides detailed information about individual projector items.
  • Page 62 Section 6: Projector Menus Table 6.3 Summary of Status: System Components Displays all the status items that are in alarm state. Cooling Cooling Pump Intake Fanpack (bottom right) Intake Fanpack (bottom left) Intake Fanpack (top right) Intake Fanpack (top left) Light Engine Fan Radiator DC Blower Anode...
  • Page 63 Section 6: Projector Menus Lamp Info Lamp ID CDXL-20SD Lamp Serial Number Lamp Power Lamp power in watts Lamp Current Lamp current in amps Lamp Voltage Lamp voltage in volts Luminance Luminance in Foot Lamberts or Candela Lamp Intensity Current light intensity reading Lamp Expired Status Yes/No Lamp Needs Rotation...
  • Page 64 Section 6: Projector Menus IMCB ILS Boot IMCB ILS Main IMCB ILS Hardware PIB LVDS FPGA PIB FPGA Factory PIB Main Production PIB Main Factory PIB Bootloader PIB CPLD PIB FPGA Active Router Bootloader Router Kernel Router Sysfs LD Security List LD Software LD Login List ICP Software...

  • Page 65: Alarm Window

    Section 6: Projector Menus Alarm Window When an alarm occurs, an Alarms window with a red border appears with a description of the alarm condition, state, and time and date of the alarm. The window only displays alarms you have not previously acknowledged.

  • Page 66: Interrogator Window

    Section 6: Projector Menus Interrogator Window To open the Interrogator window you need Operator, Administrator, or Service permissions. Tap Menu > Diagnostics > Interrogator. When you run the interrogator, you cannot modify projector settings. Image disruption can occur if you run the interrogator during a show.

  • Page 67: Smpte Errors Window

    Section 6: Projector Menus SMPTE Errors Window To open the SMPTE Errors window you need Operator, Administrator, or Service permissions. Tap Menu > Diagnostics > SMPTE Errors. The SMPTE Errors window displays a numerical representation of the signal integrity of the HD-SDI signals sent to the projector on the BNC signal cables.

  • Page 68: System Logs Window

    Section 6: Projector Menus System Logs Window o open the System Logs window you need Operator, Administrator, or Service permissions. Tap Menu > Diagnostics > System Logs. Use the System Logs window to retrieve or download log files. Figure 6-7 System Logs Window Table 6.5 Diagnostics: System Logs Window Field Description...

  • Page 69: Server Test Window

    Section 6: Projector Menus 6.10 Server Test Window To open the Server Test window you need Operator, Administrator, or Service permissions. Tap Menu > Diagnostics > Server Test. Use the Server Test window to search for content or transmission errors in the subtitle and metadata .xml files on a cinema server.

  • Page 70: Dlp Management Window

    Section 6: Projector Menus 6.11 DLP Management Window Use the DLP Management window to manage the TI Integrated Cinema Processor (ICP) electronics. Tap Menu > Diagnostics > DLP Management. Figure 6-9 Diagnostics: DLP Management Window Table 6.6 DLP Management Window Control Description Stop DLP...

  • Page 71: Network Devices

    Network Devices Setup window. See 6.15.8 Network Devices Setup Window, on page 6-42 Figure 6-10 Accessing Christie ACT via the Network Devices Window To interact with the device tap in the top right corner of the window. To alter the zoom of the device tap , in the top right corner of the window.

  • Page 72: Channel Setup Windows

    Section 6: Projector Menus 6.13 Channel Setup Windows To open the Channel Setup windows you need Advanced, Administrator, or Service permissions. Tap Menu > Channel Setup. Use the Channel Setup window to create and store customized projector settings for different inputs. You can create a maximum of 64 channels.

  • Page 73: Config 1 Window

    Section 6: Projector Menus 6.13.1 Config 1 Window Use the Channel Setup: Config 1 window to change the channel configuration settings. Figure 6-13 Channel Setup: Config 1 Window Table 6.8 Config 1 Window Control Description 1: Icon The icon associated with the channel. 2: Input The location or connection for the current input.

  • Page 74: Config 2 Window

    Section 6: Projector Menus 6.13.2 Config 2 Window Use the Channel Setup: Config 2 window to change the color settings of a channel. Figure 6-14 Channel Setup: Config 2 Window Table 6.9 Config 2 Window Control Description 1: Measured Color The Measured Color Gamut Data (MCGD) file to use as a reference for calculating target color processing.

  • Page 75: Control Window

    Section 6: Projector Menus 6.13.3 3D Control Window Use the 3D Control window to adjust and synchronize incoming 3D signals with external 3D equipment such as screens, emitters, and glasses. For more information, see 4.11 Work with Figure 6-15 Channel Setup: 3D Control Window Table 6.10 3D Control Window Control Description...
  • Page 76 Section 6: Projector Menus Control Description 3: 3D Sync Input Specifies whether a specific frame of input data has left eye or right eye data. Mode Use GPI (polarity = true) or (polarity = inverted): Select if you are using a single 3D signal requiring a separate 3D stereo sync input at the GPIO.
  • Page 77 Section 6: Projector Menus FRAME RATE N:M NOTES These N:M ratios define how many frames to display per number of frames that EXAMPLE form one complete image. For all 3D use, the denominator is 2, indicating that 2 4:2 = 4 frames displayed 2 frames per image frames (left and right) are combined into every complete display frame.

  • Page 78: Advanced Setup Windows

    Section 6: Projector Menus 6.14 Advanced Setup Windows To open the Advanced Setup window you need Advanced, Administrator, or Service permissions. Use the Advanced Setup windows to define the operating parameters for the projector including lamp settings and the lens position. Figure 6-17 Functionality in Advanced Setup Windows Table 6.11 Functionality in Advanced Setup Windows Control...

  • Page 79: Lamp Power / Liteloc™ Setup Window

    Section 6: Projector Menus 6.14.1 Lamp Power / LiteLOC™ Setup Window LiteLOC™ is a power control algorithm that increases the power level to maintain lamp brightness as the lamp ages. Tap Menu > Advanced Setup > Lamp Power/LiteLOC™ Setup. LiteLOC™ Target Light Intensity...

  • Page 80: Lamp History Window

    Section 6: Projector Menus 6.14.2 Lamp History Window The Lamp History window displays a list of the previous and current lamps installed in the projector. Tap Menu > Advanced Setup > Lamp History. You cannot remove a lamp from the list after you add it. Figure 6-19 Advanced Setup: Lamp History Window Table 6.13 Lamp History Window Control...

  • Page 81: Add Lamp Window

    Section 6: Projector Menus Add Lamp Window Figure 6-20 Add Lamp Window Table 6.14 Add Lamp Window Control Description Type The lamp type. Serial Number The serial number of the new lamp. A serial number can be up to 32 alpha-numeric characters. Reason for Change The reason you are installing the lamp.

  • Page 82: Lamploc™ Setup Window

    Section 6: Projector Menus 6.14.3 LampLOC™ Setup Window Use the LampLOC Setup window to reposition the projector bulb for optimized light output. Tap Menu > Advanced Setup > LampLOC™ Setup Click Do Auto to run LampLOC automatically. You must turn the lamp on before you run LampLOC. If you turn the lamp off during LampLOC, the bulb returns to its former position.

  • Page 83: Ils File Setup Window

    Section 6: Projector Menus Control Description Auto Shows the current LampLOC ™ procedure completion status. LampLOC™ Progress Bar Cancel Auto Cancels the LampLOC calibration. 6.14.4 ILS File Setup Window To prevent the projection lens and the Motorized Auxiliary Lens Mount WARNING (MALM) colliding, move the MALM to the out position before calibrating the lens or resetting the MALM.

  • Page 84: Lens Setup Window

    Section 6: Projector Menus 6.14.5 Lens Setup Window Use the Lens Setup window to setup the primary and auxiliary lenses and configure the Intelligent Lens System (ILS) if it is installed. Tap Menu > Advanced Setup > Lamp Power/LiteLOC™ Setup. Figure 6-23 Lens Setup Window Table 6.17 Lens Setup Window Control...

  • Page 85: Source File Setup Window

    Section 6: Projector Menus Control Description Moves the MALM to the right or left. If the MALM is in the OUT position (right), the MALM moves to the IN position (left) before the incremental adjustments begin. Moves the MALM to the right or left. If the MALM is in the IN position, the MALM moves to the OUT position (right) before the incremental adjustments begin.

  • Page 86: Screen File Setup Window

    Section 6: Projector Menus 6.14.7 Screen File Setup Window Use the Screen File Setup window to define the display panel size and how you want the image cropped. You can save Tap Menu > Advanced Setup > Screen File Setup. your settings, and apply them to other input devices.

  • Page 87: Mcgd File Setup Window

    Section 6: Projector Menus 6.14.8 MCGD File Setup Window Use the MCGD File Setup window to correct uncorrected, on-screen colors. Tap Menu > Advanced Setup > MCGD File Setup. Figure 6-26 MCGD File Setup Window Table 6.20 MCGD File Setup Window Control Description 1: Gamut Visual Control...

  • Page 88: Tcgd File Setup Window

    Section 6: Projector Menus 6.14.9 TCGD File Setup Window Use the TCGD File Setup window to modify or create custom Target Color Gamut Data (TCGD) files. Tap Menu > Advanced Setup > TCGD File Setup. A TCGD file appears in the Channel Setup: Config 2 window as Target Color where you can select it for use in the display.

  • Page 89: Administrator Setup Windows

    Section 6: Projector Menus 6.15 Administrator Setup Windows To open the Administrator Setup window you need Administrator, or Service permissions. Use the Administrator Setup windows to define projector settings. 6.15.1 Preferred Channel Setup Window To open the Preferred Channel Setup window you need Administrator or Service permissions. Tap Menu > Administrator Setup >...

  • Page 90: Preferred Test Pattern Setup Window

    Section 6: Projector Menus 6.15.2 Preferred Test Pattern Setup Window Use the Preferred Test Pattern Setup window to manage and organize test patterns. To open the Preferred Test Pattern Setup window you need Administrator or Service permissions. Tap Menu > Administrator Setup > Preferred Test Pattern Setup.

  • Page 91: Preferences Window

    Section 6: Projector Menus 6.15.3 Preferences Window Use the Preferences window to modify projector system settings. To open the Preferences window you need Administrator or Service permissions. Tap Menu > Administrator Setup > Preferences. Figure 6-30 Preferences Window Table 6.24 Preferences Window Control Description Temperature Units...

  • Page 92: Content Devices Configuration

    Section 6: Projector Menus 6.15.4 Content Devices Configuration Use the Content Devices Configuration window to indicate when a Link Decrypter (LD) or an Image Media Block (IMB) is installed in the projector. To open the Content Devices Configuration window you need Administrator or Service permissions.

  • Page 93: Time Setup Window

    Section 6: Projector Menus 6.15.5 Time Setup Window Use the Time Setup window to change projector time settings. To open the Time Setup window you need Administrator or Service permissions. Tap Menu > Administrator Setup > Time Setup. Figure 6-32 Time Setup Window Table 6.26 Administrator Setup: Time Setup Window Control Description...

  • Page 94: Scheduler Window

    Section 6: Projector Menus 6.15.6 Scheduler Window Use the Scheduler window to schedule when the projector turns on or off. To open the Scheduler window you need Administrator or Service permissions. Tap Menu > Administrator Setup > Scheduler. Figure 6-33 Administrator Setup: Scheduler Window Table 6.27 Administrator Setup: Scheduler Setup Window Control Description...

  • Page 95: Communications Configuration Window

    Section 6: Projector Menus 6.15.7 Communications Configuration Window Use the Communications Configuration window to configure Ethernet settings, serial communication parameters, SNMP settings, and remote access settings. To open the Communications Configuration window you need Administrator or Service permissions. Tap Menu > Administrator Setup > Communications Configuration.

  • Page 96: Network Devices Setup Window

    Grants access to Ethernet connections. 6.15.8 Network Devices Setup Window Use the Network Devices window to view the web interface of external peripherals such as Christie ACT and the Integrated Media Block (IMB). Tap Menu > Administrator Setup > Network Devices Setup.

  • Page 97: Gpio Setup Window

    Section 6: Projector Menus Add a Network Device 1. In the Device Name area, select the check box to the left of the device you are adding. 2. Enter the device name in the Device Name field. 3. In the URL field, enter the URL of the device you are adding 4.

  • Page 98: Foot Lamberts Calibration Window

    Section 6: Projector Menus 6.15.10 Foot Lamberts Calibration Window Use the Foot Lamberts Calibration wizard to calibrate the internal light meter to Foot Lamberts. When you run Foot Lamberts Calibration during a show, the show stops. To run the Foot Lamberts Calibration wizard you need Administrator or Service permissions.

  • Page 99: User Accounts Window

    Section 6: Projector Menus 6.15.11 User Accounts Window The User Accounts window provides options for the management of users, passwords, and user access rights. Depending on your login level, you will be able to manage users having the same or fewer access rights as you. Tap Menu >...
  • Page 100 Section 6: Projector Menus Figure 6-39 Add a New User Window 6-46 CP2210 User Manual 020-100410-07 Rev. 1 (01-2012)

  • Page 101: Upgrade Window

    Section 6: Projector Menus 6.15.12 Upgrade Window Use the Upgrade window to upgrade the projector software. You must have Administrator or Service permissions to upgrade software File Selection Window Figure 6-40 Upgrade: File Selection Window Table 6.31 Upgrade: File Selection Window Control Description Available Upgrade...

  • Page 102: Service Setup Windows

    Section 6: Projector Menus Upgrade Package Details Window Figure 6-41 Upgrade: Package Details Window Table 6.32 Upgrade: Package Details Window Control Description Upgrade Upgrades system components that are newer or older than the currently installed version. Different Components Only ICP Only Force Forces an ICP install regardless of what current version is installed.

  • Page 103: System Access Window

    Section 6: Projector Menus 6.16.1 System Access Window Use the System Access window to access Microsoft Windows functions. Tap Menu > Service Setup > System Access. System Access Figure 6-42 Window Table 6.33 System Access Window Control Description Task Manager Opens the Microsoft Windows Task Manager.

  • Page 104: File Management Window

    Section 6: Projector Menus 6.16.2 File Management Window Use the File Management window to manage backups and restore system settings. Tap Menu > Service Setup > File Management. Figure 6-43 File Management Window Table 6.34 File Management Window Region Description 1: Backup Backs up configuration, preference, channel, and user data to a USB drive or an FTP site.

  • Page 105: Ld Marriage Window

    Use the Marriage wizard to activate marriage on the projector. Marriage engages the Direct Couple Interlock (DCI) and allows you to display secure content. You need Marriage permission to use the Marriage wizard and only Christie accredited technicians are authorized to activate projector marriage. Figure 6-44 Marriage Start Window...

  • Page 106: System Access Window

    Section 6: Projector Menus 6.16.4 System Access Window Use the System Access window to access Microsoft Windows functions. Tap Menu > Service Setup > System Access. System Access Figure 6-45 Window System Access Table 6.35 Window Control Description Task Manager Opens the Microsoft Windows Task Manager.

  • Page 107: Imb Marriage Window

    Use the Marriage wizard to activate Image Media Block (IMB) marriage on the projector. IMB marriage engages the Direct Couple Interlock (DCI) and allows you to display secure content. You need Marriage permission to use the Marriage wizard and only Christie accredited technicians are authorized to activate IMB marriage.

  • Page 108: About Window

    Section 6: Projector Menus 6.17 About Window Use the About window to view information about the projector including the serial number, the current software version, the Digital Light Processing (DLP) version, the lens and lamp type. If the projector has been upgraded, a U appears at the end of the model number.

  • Page 109: Help Window

    Section 6: Projector Menus 6.18 Help Window Use the Help window to view information about the Touch Panel Controller (TPC) windows. Figure 6-48 Help Window CP2210 User Manual 6-55 020-100410-07 Rev. 1 (01-2012)

  • Page 111: Inspect Ventilation

    Top up the coolant with the Christie approved coolant JEFFCOOL E105. Use the refill bottle (with the nozzle) provided in the Liquid Coolant Fill Service Kit (P/N: 003-001837-xx). When refilling, use caution not to spill or let any of the coolant drip on or near the electronics.

  • Page 112: Inspect The Lamp

    Section 7: Maintenance Inspect the Lamp DANGER Always disconnect from AC and wear authorized protective safety gear. • Check the contact surfaces of the anode (positive) and the cathode (negative) connections for cleanliness. • Clean electrical contact surfaces regularly to prevent contact resistance from scorching connectors. Use an approved contact cleaner.

  • Page 113: Clean The Lamp Reflector

    Section 7: Maintenance 3. Gently wipe the surface using a figure eight motion. Repeat until the blemish is removed. 7.5.2 Clean the Lamp Reflector Inspect the mirror surface (reflector) for cleanliness when you remove the lamp for replacement. Wear protective clothing while inspecting or cleaning. Color variations on the reflector are normal. Remove Dust 1.

  • Page 114: Inspect And Clean Lamp Blower

    Never twist or bend the quartz lamp body. Use the correct wattage lamp supplied by Christie. 3) Ensure those within the vicinity of the projector are also wearing protective safety clothing. 4) Never attempt to remove the lamp when it is hot. The lamp is under pressure when hot and may explode, causing personal injury, death, or property damage.
  • Page 115 Section 7: Maintenance g. With the lamp removed, visually inspect the reflector for dust. If necessary, clean the reflector. Reflector Anode Wire Isolator Screws Anode Nut Cathode Screw Cathode Nut Cathode Clamp Cathode Wire Figure 7-2 Lamp Assembly 7. Remove the new lamp from the protective case. NOTE: Before removing the lamp from the case loosen the cathode screw and remove the cathode nut from the lamp.

  • Page 116: Rotate The Lamp

    Never twist or bend the quartz lamp body. Use the correct wattage lamp supplied by Christie. 3) Ensure those within the vicinity of the projector are also wearing protective safety clothing. 4) Never attempt to remove the lamp when it is hot. The lamp is under pressure when hot and may explode, causing personal injury, death, or property damage.

  • Page 117: Replace The Air Filter

    Section 7: Maintenance 7.10 Replace the Air Filter Use only high efficiency Christie approved filters. Never operate the projector without the filter installed. Always discard used air filters. You should check the condition of the light engine air filter monthly. Replace the light engine air filter when you replace the lamp module or sooner if you are operating the projector in a dusty or dirty environment.

  • Page 118: Replace The Lens

    Section 7: Maintenance 7.11 Replace the Lens 1. Tap and hold the red power button on the TPC Main panel to turn the lamp and projector off. 2. Allow the lamp to cool for a minimum of 10 minutes. 3. Unplug the projector. Figure 7-5 Lens Assembly 4.
  • Page 119 Section 7: Maintenance 10. For added stability, secure the cap screws provided on the lens mount. If you have installed a large zoom lens, one or more of the screws may be inaccessible - simply tighten those that are accessible. NOTE: Recommended for heaviest lenses, such as 0.8:1 and 1.3-1.75:1.

  • Page 121: Projector Does Not Turn On

    • Listen for a clicking noise that indicates the ballast is attempting to strike the lamp. If you do not hear a clicking noise, there might be a problem a problem with the ballast. Contact a Christie accredited service technician to resolve the issue.

  • Page 122: Lamp Suddenly Turns Off

    Increase the lamp power. Lamps which are near end of service may not operate reliably at a lower power setting. • Fold mirror misalignment. Contact your Christie accredited service technician to resolve the issue. • Integrator rod misalignment. Contact your Christie accredited service technician to resolve the issue.

  • Page 123: Cannot Establish Communication With Projector

    Section 8: Troubleshooting Cannot Establish Communication with Projector Verify all input devices have the same subnet mask and unique IP addresses. Blank Screen, No Display of Cinema Image • Ensure the lens cap is not on either end of the lens. •...

  • Page 124: Display Is Not Rectangular

    Section 8: Troubleshooting 8.14 Display is Not Rectangular • Verify the projector is level and the lens surface and screen are parallel to one another. • Adjust the vertical offset of the lens mount with the vertical offset knob or ILS. •...

  • Page 125: The Display Is Faint

    Section 8: Troubleshooting • The horizontal or vertical scan frequency of the input signal may be out of range for the projector. See Appendix B: Specifications for scan frequency ranges. • The sync signal may be inadequate. Correct the source problem. 8.20 The Display is Faint •...

  • Page 127: Function Codes

    Appendix A: Serial API Commands This section provides a list of serial API commands that you can run to modify projector settings. Function Codes Auxiliary Motorized Lens (AML) Control the motorized auxiliary lens (anamorphic or converter lens). Reset all preference and configuration settings in the device to their default values.
  • Page 128 Appendix A: Serial API Commands Baud Rate (BDR) Set the baud rate for a serial communications port. SUBCODE DESCRIPTION OF USE Set the baud rate on port A. Rates can be 1200, 2400, 9600, 19200, 38400, 57600, or 115200. PRTA EXAMPLES: (BDR+PRTA6) Set baud rate on port A to 115200 bits per second (BDR+PRTA?) Get baud rate (BDR+PRTA!006 ”115200)
  • Page 129 Appendix A: Serial API Commands Defaults (DEF) This control will reset all preference and configuration settings in the device to their default values. The value of 111 must be sent with each of the sub codes as well as the default. The number 111 helps prevent accidental use of this control. Select data packing format for selected input.
  • Page 130 Appendix A: Serial API Commands Data Format (DTF) Select data packing format for selected input. Available data formats depends on current input port (as selected by SIN). SUBCODE DESCRIPTION OF USE Replace xxx with the channel number. Valid range is 101 - 164. Cxxx Select data format for current channel NONE...
  • Page 131 Appendix A: Serial API Commands Focus Lens Position Adjustment (FCS) Adjust lens to specific focus position with a specified direction. NOTE: This command can only be used to update the current ILS file. Changing the focus for the current channel will change the focus for any channel using the same ILS file.
  • Page 132 Appendix A: Serial API Commands Lamp History (HIS) Retrieve the history of installed lamp entries, including the current lamp. There is an individual entry for each lamp in the history. The format for each entry is: (HIS!AAA “BBBB/BB/BB” “C” “D” EEE FFF GGG HHH III JJJ KKK).
  • Page 133 Appendix A: Serial API Commands Intelligent Light System Config (ILS) Enable/disable the Intelligent Lens System for each channel. SUBCODE DESCRIPTION OF USE Enable/disable the Auto Lens Mount and Lens reset feature. Once ACLB is turned on, lens mount and lens ACLB system will be reset automatically when system is powered on.
  • Page 134 Appendix A: Serial API Commands Internal Media Block Installed/Device Type (IMB) Access Level: Advanced Min Power Level: Power Down Used to set or query whether an IMB is installed or not. Use the DEVT subcode to set the device type. SUBCODE DESCRIPTION OF USE Set device type from the list of devices.
  • Page 135 Appendix A: Serial API Commands Lamp Intensity Calibration (LCA) This control is used to calibrate (correlate) the intensity feedback mechanism to footlamberts. Note the minimum/ maximum power are used to pick two points on the curve. These points will not stay consistent over the life of the lamp, but the conversion algorithm will extrapolate the conversion beyond the range of the two end points.
  • Page 136 Appendix A: Serial API Commands Link Decrypter Installed (LDI) Access Level: Advanced Min Power Level: Power Down Set LD to installed or not installed. SUBCODE DESCRIPTION OF USE Set to 1 to installed and 0 to not installed. None EXAMPLES: (LDI 1) Set LD installed.
  • Page 137 Appendix A: Serial API Commands EXAMPLES: (LHO 500 1) Move lens to position 500 along horizontal axis with positive approach (LHO 500 -1) Move lens to position 500 along horizontal axis with negative approach (LHO+C101 -500 1) Set lens horizontal position for channel 1 to -500 with positive approach (LHO ?) Return current motor position along horizontal axis and direction (-1 or 1) (LHO+CALB 1) Calibrate the horizontal axis (LHO+RSET 1) Reset the horizontal axis...
  • Page 138 Appendix A: Serial API Commands (LMV <lho><lvo><zom><fcs><lhodir><lvodir><zomdir><fcsdir>) NONE where <lhodir>, <lvodir>, <zomdir>, and <fcsdir> represent the horizontal, vertical, zoom, and focus position information. Valid values for direction are 1 and -1. EXAMPLES: (LMV 1000 1500 500 -500 -1 -1 1 1) Local Settings (LOC) et the time format and display options for temperature units.
  • Page 139 Appendix A: Serial API Commands Return total failed lamp strikes on the installed lamp FLSK Return total failed lamp restrikes on the installed lamp FRSK Return total lamp unexpected off times on the installed lamp LPOF Return lamp usage for current lamp in hours. NONE Return total lamp strikes on the installed lamp TLSK...
  • Page 140 Appendix A: Serial API Commands SUBCODE DESCRIPTION OF USE Replace Cxxx with the channel number. Valid range is 101-164. Cxxx Set lamp mode for the current channel. NONE EXAMPLES: (LPM 0) Set Constant Power mode for current channel (LPM “Constant Power”) Set Constant Power mode for active channel (LPB+C101 1) Set intensity mode for channel 1 (LPM?) Get Lamp mode for active channel Lamp Power (LPP)
  • Page 141 Appendix A: Serial API Commands Moves the motor a given number of steps based on the current location. Write-only for v1.3 or newer. MOVR EXAMPLES: (LVO 500 1) Move lens to position 500 along vertical axis with positive approach (LVO 500 -1) Move lens to position 500 along vertical axis with negative approach (LVO+C101 -500 1) Set lens vertical position for channel 1 to -500 with positive approach (LVO ?) Return current motor position along vertical axis and direction (LVO+CALB 1) Calibrate the vertical axis...
  • Page 142 Appendix A: Serial API Commands EXAMPLES: (NET+ETH0 "192.168.1.35") Set new IP address on the MGMT Ethernet controller (NET+GATE "192.168.0.1") Set the gateway (NET+SUB0 "255.255.255.0") Set the subnet mask on the MGMT Ethernet controller (NET+HOST "MyHostName") Set the host name (NET+ETH0 ?) Retrieve IP address from the MGMT Ethernet controller. (NET+ETH0! 192.168.1.35) (NET+MAC0 ?) Retrieve MAC address from MGMT controller.
  • Page 143 Appendix A: Serial API Commands Change the power state of the projector. Data can be: 3 - Power OFF - all electronics power OFF except Projector Control Module (PCM). It's also called Standby mode. 1 - Power ON - projector is powered ON with lamp ON. 0 - Full power mode - projector is ready for lamp ON.
  • Page 144 Appendix A: Serial API Commands EXAMPLES: (SCF+C108 “FLAT”) Use file “FLAT” on channel 108 (SCF+C108?) Get screen file name on channel 108 (SCF?L) List all available entries of screen control Shutter/Douser (SHU) Open/Close shutter/douser SUBCODE DESCRIPTION OF USE Select douser position 0 - douser removed from optical path 1 - douser blocking optical path NONE The number of steps the douser should be moved when opening/closing (default 60, minimum 30, maxi- STEP...
  • Page 145 Appendix A: Serial API Commands EXAMPLES: (SNM+TSIP “xxx.xxx.xxx.xxx”) Sets the Trap IP address to xxx.xxx.xxx.xxx (SNM+TSIP “0.0.0.0”) Setting the IP address to 0.0.0.0 will stop SNMP Agent from sending the traps. (SNM+LHLT 1) Setting this flag to 1 will disable any future lamp half life traps (SNM+LEXT 1) Setting this flag to 1 will disable any future lamp expire traps (SNM+ENVT ?) Get the flag to see if V2 is enabled (1) or disabled (0) (SNM+ENVT 1) Enable SNMP V2...
  • Page 146 Appendix A: Serial API Commands System Status (SST) etrieve the various system status groups. SUBCODE DESCRIPTION OF USE Returns a summary of any active alarms ALRM Returns configuration data - model, sn, build date, etc CONF Returns cooling data - cooling fans, air flow, etc COOL Returns system health HLTH...
  • Page 147 Appendix A: Serial API Commands Projector Platform and Motherboard Related Information (SYS) Query only command that returns version information. SUBCODE DESCRIPTION OF USE Return backplane version information. BACB Return faceplate version information. FACB Return PIB version information. PIBB EXAMPLES: (SYS+BACB?) Returns backplane version information. Target Color Gamut (TCG) Set the Target Color Gamut file.
  • Page 148 Appendix A: Serial API Commands Output Reference Delay (phase) (TDP) Set output reference delay phase for 3D control. This is an additional control for output timing relative to input timing. The data range is -180 to 180. SUBCODE DESCRIPTION OF USE Replace xxx with the channel number.
  • Page 149 Appendix A: Serial API Commands 3D Frame Rate Multiple (TFR) Setup frame rate multiple for 3D control SUBCODE DESCRIPTION OF USE Replace xxx with the channel number. Valid range is 101 - 164. Cxxx Select 3D frame rate for the current channel. NONE EXAMPLES: (TFR?L) List all entries on the frame rate multiple factor...
  • Page 150 Appendix A: Serial API Commands EXAMPLES: (TMD+DSTA?) 0 or 1 (DST OFF or DST ON) (TMD+DSTA 0) Turn daylight savings OFF (0) or ON (1) (TMD+ZONE 20) Set time zone to EST (TMD+TIME? ) Get local time (TMD+TIME! 17:50:45) (TMD+TOFF 120) Increase the time by two minutes. (“TMD+TOFF: Disabled Control”) Error message returned when power is OFF.
  • Page 151 Appendix A: Serial API Commands Start motor moving in specified direction, where direction can be (-1, 1). Write-only for v1.3 or newer. STRT Stops the motor. Write-only for v1.3 or newer. STOP Moves the motor a given number of steps based on the current location. Write-only for v1.3 or newer. MOVR EXAMPLES: (ZOM 500 1) Move lens to position 500 with positive approach...

  • Page 153: Display

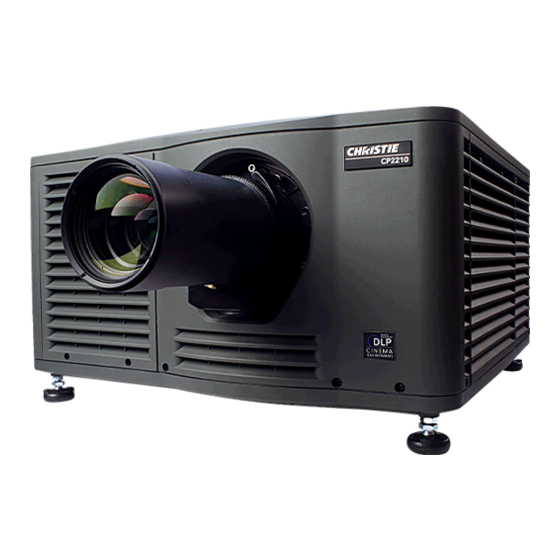

    Appendix B: Specifications This section provides detailed Christie CP 2210 specifications. Due to continuing research, specifications are subject to change without notice. B.1 Display B.1.1 Panel Resolution and Refresh Rate Pixel format (H x V square pixels) 2048 x 1080 Processing path 23.97 - 120Hz...

  • Page 154: Source Signal Compatibility

    Appendix B: Specifications B.2 Source Signal Compatibility B.2.1 Cinema Inputs • Number of inputs • Standard supported SMPTE 292M bit-serial • Connector type Table B.1 Standard Single-link SMPTE 292M/372M Formats Source Original Vertical Scan Type Display Frame Source Reso- Rate (Hz) Standard Frequency lution...
  • Page 155 Appendix B: Specifications 640 x 480 23.98 / 24 Progressive 23.98 / 24 640 x 480 Progressive 640 x 480 29.97 / 30 Progressive 29.97 / 30 640 x 480 Progressive 640 x 480 Progressive 640 x 480 59.94 / 60 Progressive 59.94 / 60 640 x 480...

  • Page 156: Non-Cinema Dvi Inputs (For Alternate Content

    Appendix B: Specifications B.2.2 Non-Cinema DVI Inputs (for Alternate Content) • Number of inputs • Standard supported VESA Digital Visual Interface (DVI-D) • Connector type 24-pin female DVI-D Table B.2 Format for Generic Inputs to DVI-D Ports, Single-Link NOTE: All formats listed are 4:4:4 RGB. Source Pixel Bits / Vertical...

  • Page 157: Control Signal Compatibility

    Bit Rate 115,200 (default) bps Flow Control Hardware (RTS/CTS) Data Format 1 start bit, 8 data bits, 1 stop bit, no parity Communication Protocol Christie Serial Protocol B.3.3 RS232-ICP Interface TIA-232 Connector 9-pin subminiature D, female Bit Rate 38,400 (default), 57,600, 115,200 bps, not auto-detected...

  • Page 158: Simple Contact Closure Interface (Scci) Port

    Appendix B: Specifications B.3.5 Simple Contact Closure Interface (SCCI) Port Interface Opto-LED inputs, TTL voltage output Connector 9-pin subminiature D, female Number and type of I/O Input 1 - Lamp Off Input 2 - Lamp On Input 3 - Douser Open Input 4 - Douser Closed Output 1 - Projector Health (high = health ok) Input Current...

  • Page 159: Tpc-650H

    Appendix B: Specifications B.4.2 TPC-650H Type of Display Color VGA TFT LCD, backlit Display Size 144.8 mm (5.7 inches) diagonal Display Resolution (H x V pixels) 640 x 480 Maximum Dimensions (W x H x D) 195 mm x 148 mm x 58 mm ®...

  • Page 160: Physical Specifications

    Appendix B: Specifications CDXL-18SD 1500 hours CDXL-20SD 1500 hours Wait time between lamp strikes 2 minutes minimum Warm up time to full brightness 20 minutes maximum NOTE: Projectors typically force a 10 minute cool down period. Ensure you do not re-strike the lamp any sooner than 2 minutes into this cool down period since hot re-strikes reduce lamp life.

  • Page 161: Environment

    Appendix B: Specifications • Regulation (EC) No. 1907/2006 concerning the Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) and its amendments. • China Ministry of Information Industry Order No.39 (02/2006) on the control of pollution caused by elec- tronic information products, hazardous substances concentration limits (SJ/T11363-2006), and the applica- ble product marking requirements (SJ/T11364-2006) B.9 Environment B.9.1 Operating Environment...
  • Page 162 Appendix B: Specifications NOTE: Use of the Anamorphic or Wide Converter Lens requires the optional Motorized Auxiliary Lens Mount (MALM). • Motorized Auxiliary Lens Mount (MALM) (119-101101-01) • Rack Stand (108-282101-02) • Bracket Foot Lock (119-100101-01) used with optional Rack Stand •...
