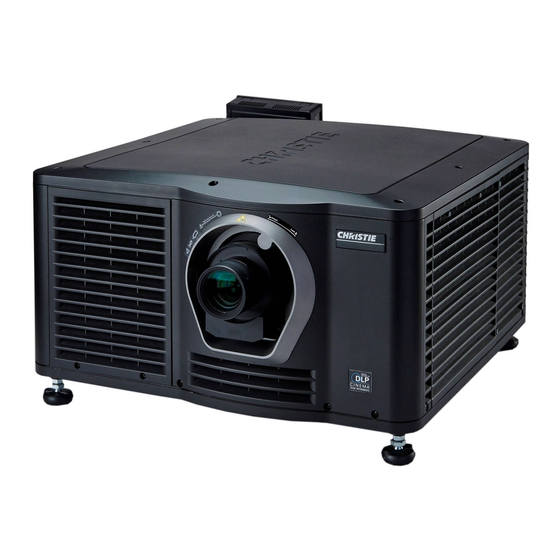

Christie CP2215 Quick Start Manual
  1. Manuals
  2. Brands
  3. Christie Manuals
  4. Projector
  5. CP2215
  6. Quick start manual

Christie CP2215 Quick Start Manual

Projection systems
Hide thumbs Also See for CP2215:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, User Manual
CP2215
Q u i c k S t a r t G u i d e
020-101295-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP2215 and is the answer not in the manual?

Questions and answers

Related Manuals for Christie CP2215

Summary of Contents for Christie CP2215

  • Page 1 CP2215 Q u i c k S t a r t G u i d e 020-101295-01...
  • Page 2 Products where the serial number has been removed or obliterated. o. Products sold by a Reseller to an End User outside of the country where the Reseller is located unless (i) Christie has an office in the country where the End User is located or (ii) the required international warranty fee has been paid.

  • Page 3: Table Of Contents

    Inspect the Lamp ..........22 CP2215 Quick Start Guide...
  • Page 4 Optional Accessories ......... . 33 CP2215 Quick Start Guide...

  • Page 5: Installation And Setup

    Only accredited Christie technicians who are knowledgeable about the hazards associated with high-voltage, ultraviolet exposure, and the high temperatures generated by the projector lamp are authorized to assemble, install, and service the projector. In addition, only Christie accredited personnel are authorized to perform security procedures such as marriage.

  • Page 6: Ac/Power Precautions

    • Disconnect projector from AC before opening any enclosure. Failure to comply could result in death or serious injury. • The dedicated earth wire can only be installed by a Christie accredited service technician or an electrician. The protected earth wire must be green/yellow 12 AWG minimum.

  • Page 7: Lamp Precautions

    Christie Protective Clothing Safety Kit (P/N: 598900-095). Recommended protective clothing includes, but may not be limited to a polycarbonate face shield, protective gloves, and a quilted ballistic nylon jacket or a welder’s jacket. Christie’s protective clothing recommendations are subject to change. Any local or federal specifications take precedence over Christie recommendations.

  • Page 8: Projector Components - Rear

    2. Position the projector so it is centered and parallel with the theatre screen. If space is limited, aim the projector slightly off-center and use lens offset to center the image on the screen. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 9: Adjust Tilt And Level The Projector

    The Touch Panel Controller page 29. 1. Loosen the mounting arm on TPC. 2. Fit the TPC mounting arm over the ball joint (A) located on the rear panel of the projector. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 10: Connect The Exhaust Duct

    1. Align the duct with mounting holes on the side of the projector. 2. Hold the duct in position and secure it to the projector with 4 M5 screws. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 11: Install The Lens

    4. Insert the lens straight into the lens mount opening without turning. Magnets inside the lens mount help position the lens. 5. Insert and tighten the 2 lens mount hex screws shipped separately with the projector. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 12: Install The Lamp

    6. Move the lens clamp to the locked position. Install the Lamp This procedure should only be performed by a Christie accredited technician. High-pressure lamp may explode if improperly handled. Always wear approved protective safety clothing whenever the lamp door is open or when handling the lamp. Failure to comply results in death or serious injury.
  • Page 13 Insert your right index and middle finger through the back of the reflector and guide the lamp onto the cathode clamp. Be careful not to hit the lamp against the reflector. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 14: Connect Devices To The Projector

    Projector Connections and Status LEDs Item Description Indicates the status of the regulator. A solid blue LED indicates the regulator is enabled. If the LED is not illuminated, the regulator is not enabled. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)
  • Page 15 A Simple Contact Closure Interface (SCCI) port that uses a simple dry contact closure to turn the lamp on or off or open or close the douser. Connects the projector to a computer. Connects the projector to Christie or third-party automation equipment. Utilizes the Christie- proprietary protocol. Connects the projector to a 10Base-T/100Base-TX Ethernet connection.

  • Page 16: Connect The Projector To A Computer

    Item Description Connects the projector to external input and output devices, such as the Christie ACT. Connects the projector to non-cinema video and graphics sources. These are single-link ports for single-link cables and connectors. The connectors can be used together as a twin-link DVI port.

  • Page 17: Connect Devices To The Scci Port

    Projector power and lamp is on. +5V standby Current limited 5VDC supply. Lamp off Projector power on and lamp is off. +5V standby Current limited 5VDC supply. Douser closed Close douser. Douser open Open douser. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 18: Connect Power

    Connect Power The dedicated earth wire can only be installed by a Christie accredited service technician or an electrician. The protected earth wire must be green/yellow 12 AWG minimum. See Projector Specifications on page A-1 for power requirements. Failure to comply could result in death or serious injury.

  • Page 19: Turn The Projector On

    1. On the touch panel controller (TPC), tap Menu > Login. 2. Select a user name in the Username list. To view the permissions associated with each account User Access Permissions on page 3. Enter your password. 4. Tap Login. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 20: Activate Marriage

    The baud rate of the serial port. The default is 115200. Enable SNMP Enables SNMP. SNMP V2 / SNMP V3 The SNMP protocol type. Contact Christie technical support for the SNMP V3 user ID and password. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 21: Add The Lamp Information To The Lamp History

    LampLOC to adjust the lamp position when you install a new lamp in the projector. After making the adjustment, the lamp is well-centered and at the correct distance from the illumination system. 1. Turn the lamp on and open the douser. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 22: Adjust The Image To Fit Your Screen

    7. With the framing test pattern displayed, re-check projector leveling so the top edge of the image is parallel to the top edge of the screen. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 23: Play Content

    To play encrypted cinema content, an Integrated Media Block (IMB) is required. Contact your Christie sales representative for more information. If you install the optional IMB, you can connect the projector to a network-attached storage (NAS) or direct attached storage (DAS) device.

  • Page 24: Maintenance

    Keep repeating this cycle until the coolant is removed. Then lightly moisten a new tissue with deionized water and blot the area again. Use a dry tissue to dry the area. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 25: Clean The Radiator Filter

    4. Remove the top lid. 5. Reach into the projector and then loosen the first service panel screw. 6. Open the integrator rod access door and loosen the second service panel screw. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 26: Inspect The Lamp

    Soft camel-hair brush • Dust-free blower - filtered dry nitrogen blown through an anti-static nozzle. • Dust-free lens tissue, such as Melles Griot Kodak tissues (18LAB020), Opto-Wipes (18LAB022), Kim Wipes or equivalent. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 27: Clean The Lens

    • EXPLOSION HAZARD. Wear authorized protective clothing whenever the lamp door is open and when handling the lamp. Never twist or bend the quartz lamp body. Use the correct wattage lamp supplied by Christie. Failure to comply results in death or serious injury.

  • Page 28: Remove The Existing Lamp

    Handle the box with extreme caution - the lamp is hazardous even when packaged. Dispose of lamp box according to local area safety regulations. Failure to comply could result in death or serious injury. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 29: Install The New Lamp

    4. Hold the anode end of the new lamp in your left hand and angle it up through the hole in the back of the reflector assembly. Insert your right index and middle finger through the back of CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)
  • Page 30 This field is auto-populated. Hours Used The number of hours the lamp has operated before installation. 14. Tap Save. 15. Tap Next. 16. Align the lamp. See Align the Lamp with LampLOC on page 17. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 31: Inspect The Card Cage Filter

    Maintenance Inspect the Card Cage Filter Use only high efficiency Christie approved filters. Never operate the projector without the filter installed. You should check the condition of the card cage air filter monthly. Clean or replace the card cage air filter sooner if you are operating the projector in a dusty or dirty environment.

  • Page 32: Replace The Lens

    When the lens contacts the magnetic plates it is seated correctly. 9. Secure the lens clamp by rotating it clockwise. 10. Tighten the lens mount cap screws for added stability. 11. Remove the lens cap from the front of the lens. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 33: Specifications

    Specifications This section provides detailed specifications for the Christie CP2215 projector. Due to continuing research, specifications are subject to change without notice. Power Requirements AC Input (A) Below 200VAC, when the lamp is ignited, a 25 A input surge current might occur for three seconds.

  • Page 34: Lamp

    55 kg (121 lbs) Weight Shipping (includes packaging) 65 kg (143 lbs) Rotation about projection axis ± 15 degrees maximum Operating Position Tilt of projection axis from horizontal ± 15 degrees maximum CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 35: Regulatory

    The product is designed to comply with the rules and regulations required for the product to be sold in various regional markets, including: USA, Canada, European Union, Argentina, Australia, New Zealand, Kuwait, China, Korea, Japan, India, Mexico, Ukraine, Russia, South Africa, and Saudi Arabia. CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 36: Environment

    10°C to 35°C (50°F to 95°F) Humidity (non-condensing) 20% to 80% Altitude 0 - 3000 meters Maximum ambient temperature 35°C Non-Operating Environment Item Description Temperature -25°C to 65°C (-13°F to 149°F) Humidity (non-condensing) 0% to 95% CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)

  • Page 37: Accessories

    Rack Stand 108-416102-XX Replacement Lamps CDXL-14M (003-003066-XX) CDXL-18SD (003-002742-XX) CDXL-20SD (003-001976-XX) CDXL-23S (003-004769-XX) Replacement Paper Air Filter 003-002311-XX Replacement Washable Air Filter 003-004655-XX Liquid Coolant Fill Service Kit 003-001837-XX Extractor Adaptor Kit 119-103105-XX CP2215 Quick Start Guide 020-101295-01 Rev. 1 (11-2013)
  • Page 38 *000-104025-01* ASSY TECH DOCS CP2215 Corporate offi ces Worldwide offi ces USA – Cypress Australia Eastern Europe and India Singapore ph: 714-236-8610 ph: +61 (0) 7 3624 4888 Russian Federation ph: +91 (080) 6708 9999 ph: +65 6877-8737 ph: +36 (0) 1 47 48 100 Canada –...
