Default Feature Key Layouts

Key ID Function
1 Dialpad2
2 Dialpad5
3 Dialpad8
4 Dialpad7
5 Dialpad4
6 Dialpad1
7 SoftKey3
8 Line1
9 ArrowRight
10 Line2
11 n/a

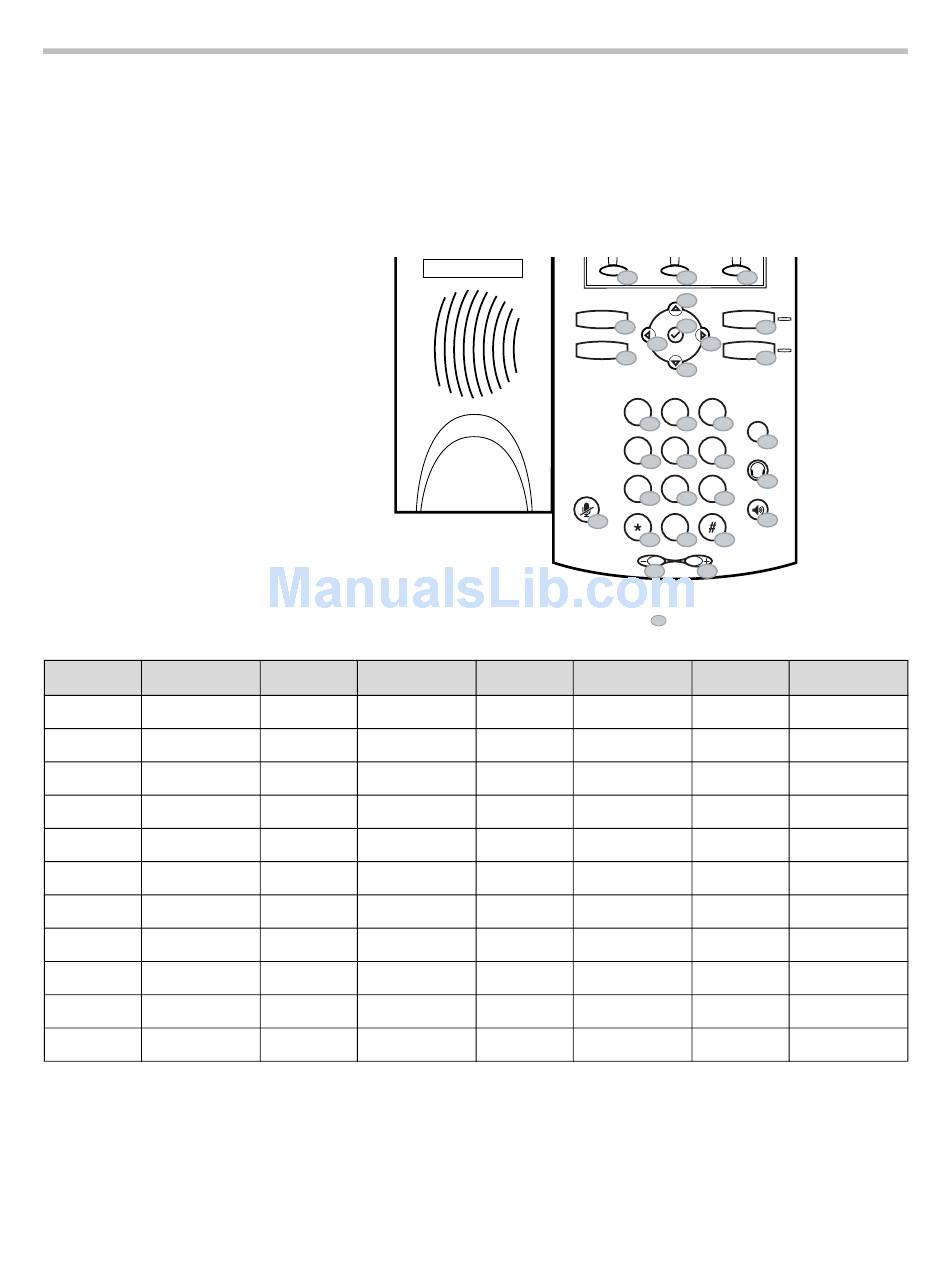

The following figures and tables show the default SIP key layouts for the
SoundPoint IP 32x/33x, 430, 450, 550, 560, 650, and 670, SoundStation IP 6000
and 7000, and Polycom VVX 1500 models.
SoundPoint IP 320/321/330/331/335
Key ID Function
12 n/a
13 SoftKey2
14 ArrowUp
15 Select
16 ArrowDown
17 n/a
18 n/a
19 Hold
20 Headset
21 Handsfree
22 DialpadPound
31
Menu
32
33
Dial
34
1
6
GHI
4
5
PQRS
7
4
30
29
24
Key ID Function
23 VolUp
24 VolDown
25 Dialpad3
26 Dialpad6
27 Dialpad9
28 Dialpad0
29 DialpadStar
30 MicMute
31 SoftKey1
32 Dial
33 ArrowLeft
