Equalizers and Filters

Each channel has a four-band, parametric equalizer and two filters. Press the EQ func-
tion switch to display the EQ controls on the knobset. Press the
Filters page (Figure 8-11).
High band In/Out
High-mid band In/Out
Low-mid band In/Out
Low band In/Out
HiQ
HiF
HiG
HmF
HmQ
HmG
LmF
LmQ
LmG
LoF
LoQ
LoG

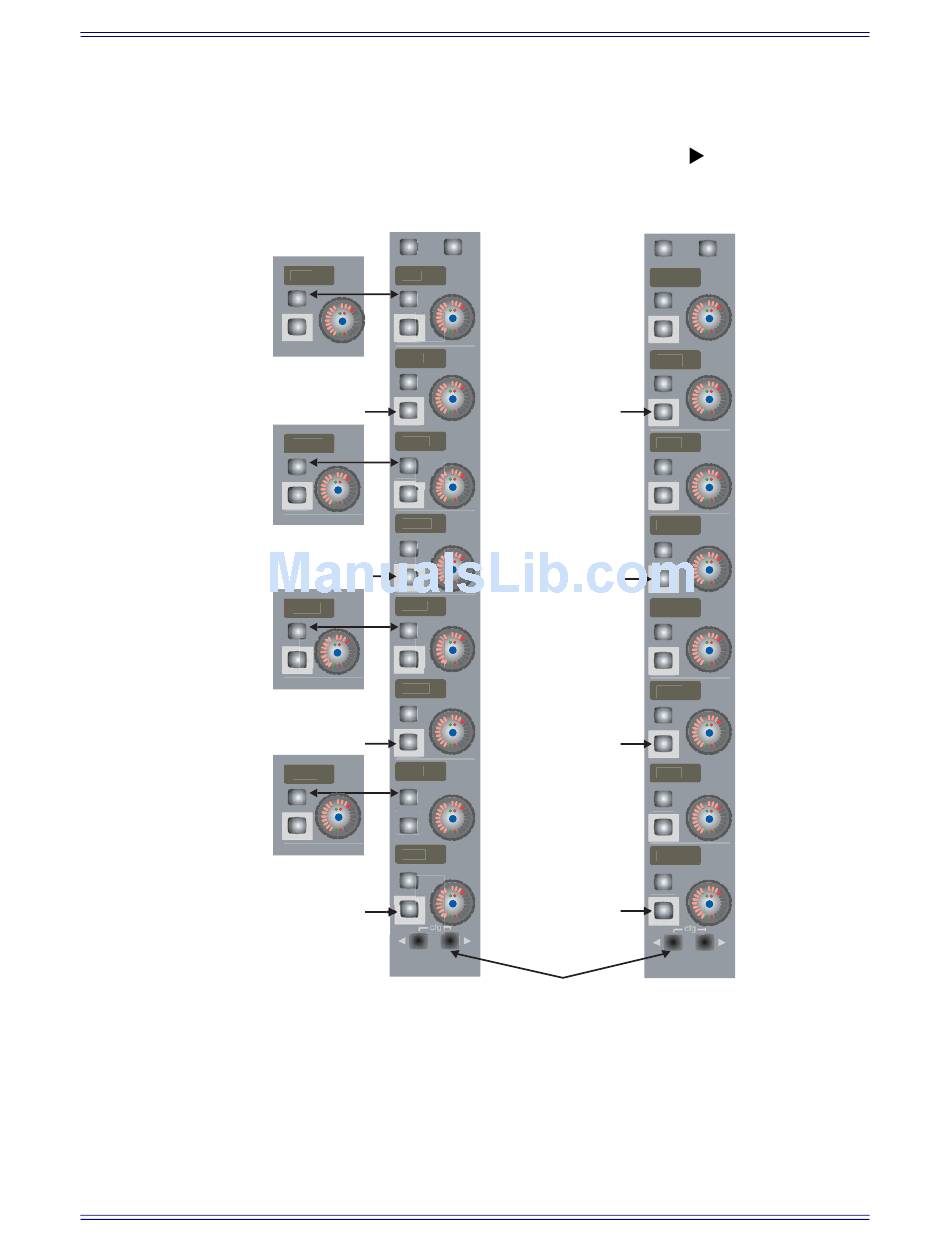

Figure 8-11 EQ and Filters knobsets
107
F2tp
Filter 2In/Out
F2Q
F2fr
Listen
F1tp
Filter 1In/Out
F1Q
F1fr
Listen
Page keys display
Filters or EQ pages
Channels and Strips
key to display the
