Using the FCIP Wizard
S e n d d o c u m e n t a t i o n c o m m e n t s t o m d s f e e d b a c k - d o c @ c i s c o . c o m
Modify the optional TCP parameters, if desired. Refer to Fabric Manager Online Help for explanations
Step 6
of these fields.
Step 7 (Optional) Click the Tunnels tab and modify the remote IP address in the Remote IPAddress field for
the endpoint to which you want to link.
Step 8 Enter the optional parameters, if desired. See the Cisco MDS 9000 Family CLI Configuration Guide for
information on displaying FCIP profile information.
Click Apply Changes icon to save these changes.
Step 9

Creating FCIP Links

When two FCIP link endpoints are created, an FCIP link is established between the two IPS modules or
MPS-14/2 modules. To create an FCIP link, assign a profile to the FCIP interface and configure the peer
information. The peer IP switch information initiates (creates) an FCIP link to that peer switch (see
Figure

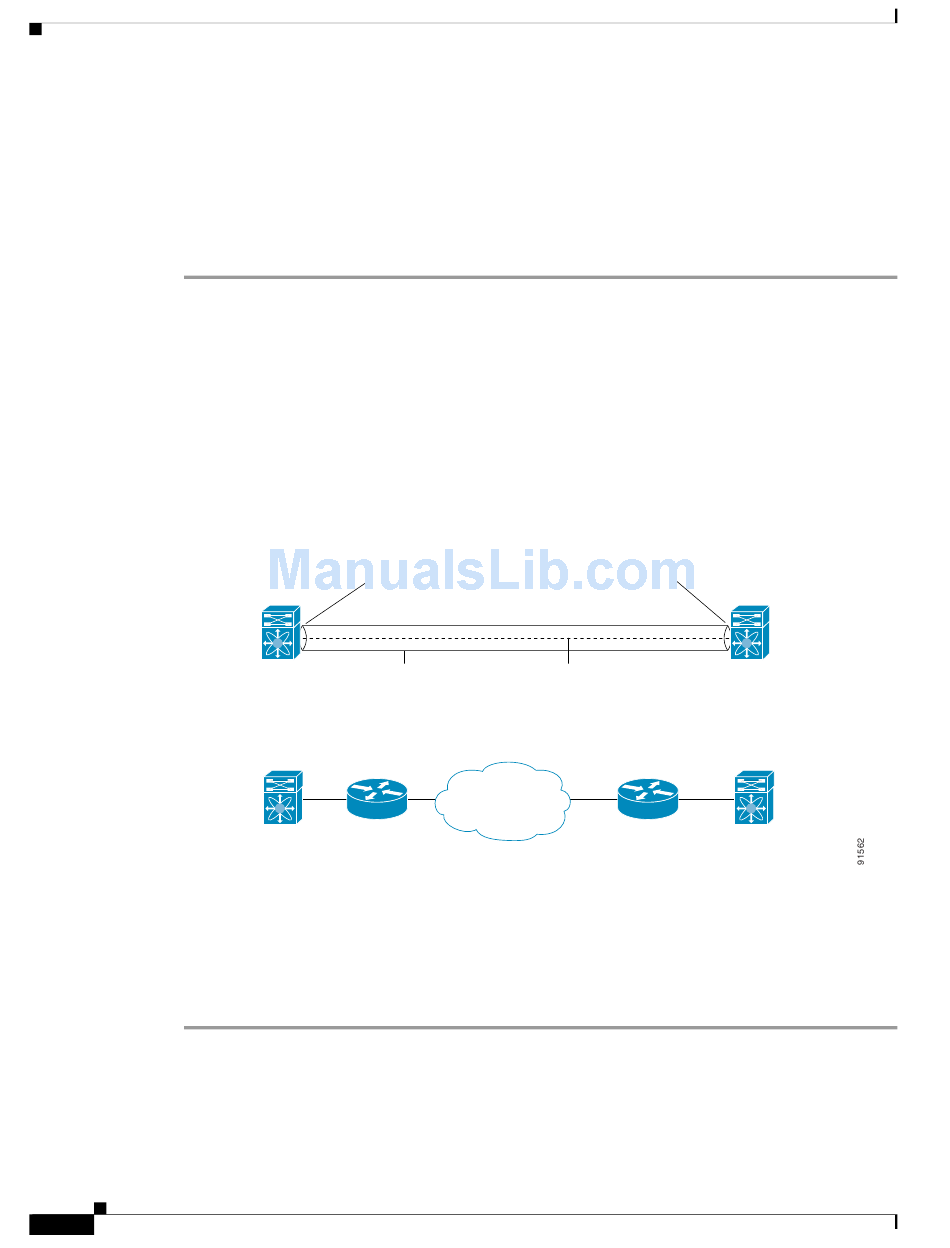

Figure 48-19
Connecting switch (peer) = 10.1.1.1
IP address of Gigabit Ethernet
interface 3/1 = 10.100.1.25

Verifying Interfaces and Extended Link Protocol

To verify the FCIP interfaces and Extended Link Protocol (ELP) on Device Manager, follow these steps:
Make sure you are connected to a switch that contains an IPS module.
Step 1
Select FCIP from the Interface menu.
Step 2
Click the Interfaces tab if it is not already selected. You see the FCIP Interfaces dialog box.
Step 3
Cisco MDS 9000 Family Fabric Manager Configuration Guide
48-16
48-19).
Assigning Profiles to Each Gigabit Ethernet Interface
Endpoint
Interface FCIP = 51
Profile = 10
Switch 1
FCIP link
Switch 1
IP router
Endpoint
Interface FCIP = 52
Profile = 20
Connecting switch (peer) = 10.100.1.25
Virtual (E) ISL
IP router
IP
network
IP address of Gigabit Ethernet
interface 3/1 = 10.1.1.1
OL-17256-03, Cisco MDS NX-OS Release 4.x
Chapter 48 Configuring FCIP
Switch 2
Switch 2
