Chapter 59 Configuring RMON
S e n d d o c u m e n t a t i o n c o m m e n t s t o m d s f e e d b a c k - d o c @ c i s c o . c o m
Click the Select radio button to select individual ports for this threshold alarm.
Step 2
Click the ... button to the right of the Selected field to display all ports.
a.
Select the ports you want to monitor.
b.
Click OK to accept the selection.
c.
Alternatively, click the appropriate radio button to choose ports by type: All ports, xE ports, or Fx ports.
Check the check box for each variable to be monitored.
Step 3
Enter the threshold value in the Value column.
Step 4
Enter the sampling period in seconds. This is the time between each snapshot of the variable.
Step 5
Choose one of the following severity levels to assign to the alarm: Fatal, Warning, Critical, Error,
Step 6
Information.
Click Create.
Step 7
Confirm the operation to define an alarm and a log event when the system prompts you to define a
Step 8
severity event. If you do not confirm the operation, the system only defines a log event.
Click More and then click the Alarms tab from the Threshold Manager dialog box to verify the alarm
Step 9
you created. The 32and 64-bit alarm show second as unit on the Interval column.

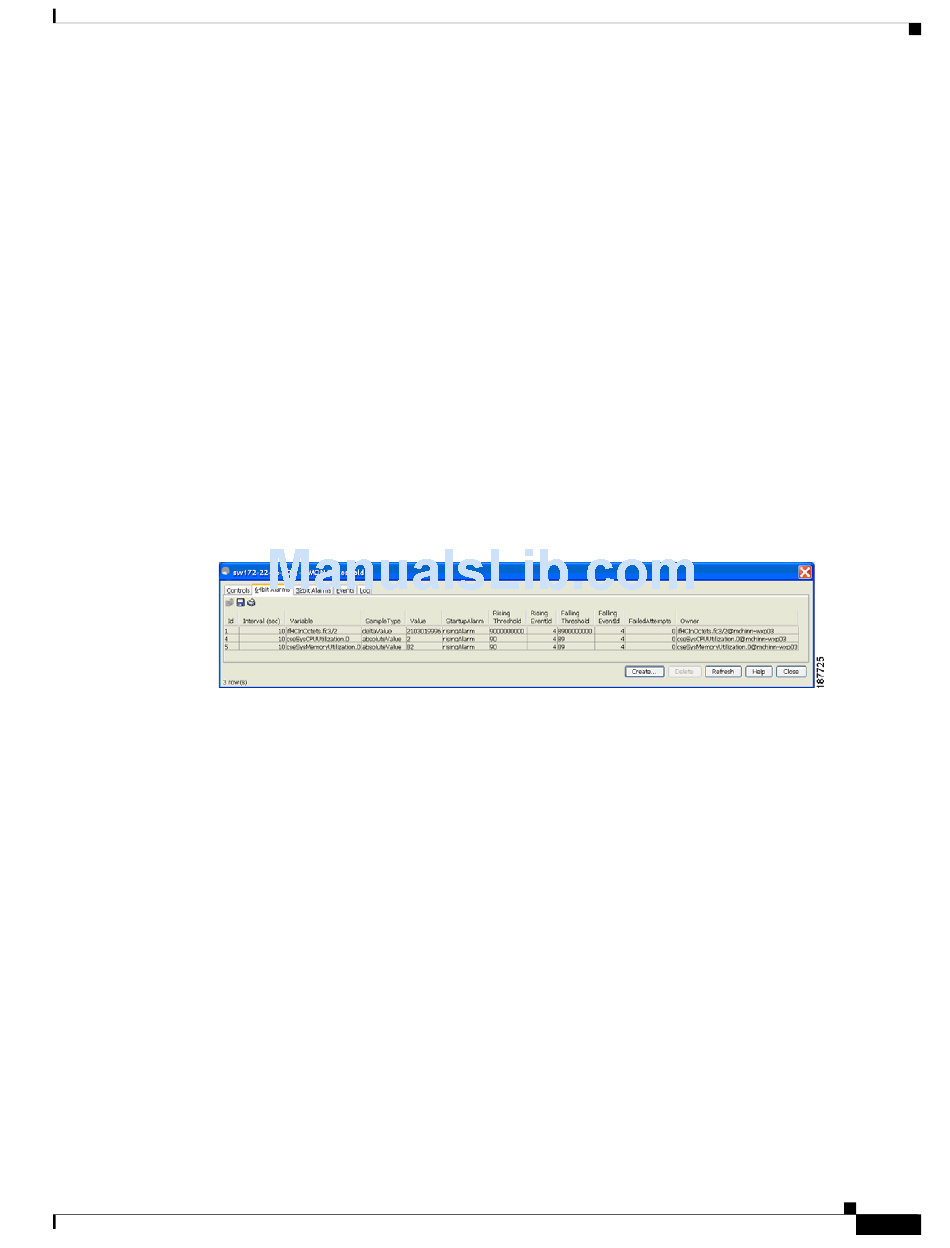

Figure 59-3
Close both dialog box pop-ups.
Step 10
OL-17256-03, Cisco MDS NX-OS Release 4.x
RMON Threshold Dialog Box
Cisco MDS 9000 Family Fabric Manager Configuration Guide
Enabling 32-Bit and 64-Bit Alarms
59-5
