Chapter 48 Configuring FCIP
S e n d d o c u m e n t a t i o n c o m m e n t s t o m d s f e e d b a c k - d o c @ c i s c o . c o m
Click Finish to create this FCIP link.
Step 13

Basic FCIP Configuration

Once you have created FCIP links using the FCIP wizard, you may need to modify parameters for these
links. This includes modifying the FCIP profiles as well as the FCIP link parameters. Each Gigabit
Ethernet interface can have three active FCIP links at one time.
Once you have created FCIP links using the FCIP wizard, you may need to modify parameters for these
links. This includes modifying the FCIP profiles as well as the FCIP link parameters. Each Gigabit
Ethernet interface can have three active FCIP links at one time.
To configure an FCIP link, follow these steps on both switches:
Configure the Gigabit Ethernet interface.
Step 1
Create an FCIP profile, and then assign the Gigabit Ethernet interface's IP address to the profile.
Step 2
Create an FCIP interface, and then assign the profile to the interface.
Step 3
Configure the peer IP address for the FCIP interface.
Step 4
Enable the interface.
Step 5

Creating FCIP Profiles

You must assign a local IP address of a Gigabit Ethernet interface or subinterface to the FCIP profile to
create an FCIP profile. You can assign IPv4 or IPv6 addresses to the interfaces.
example configuration.

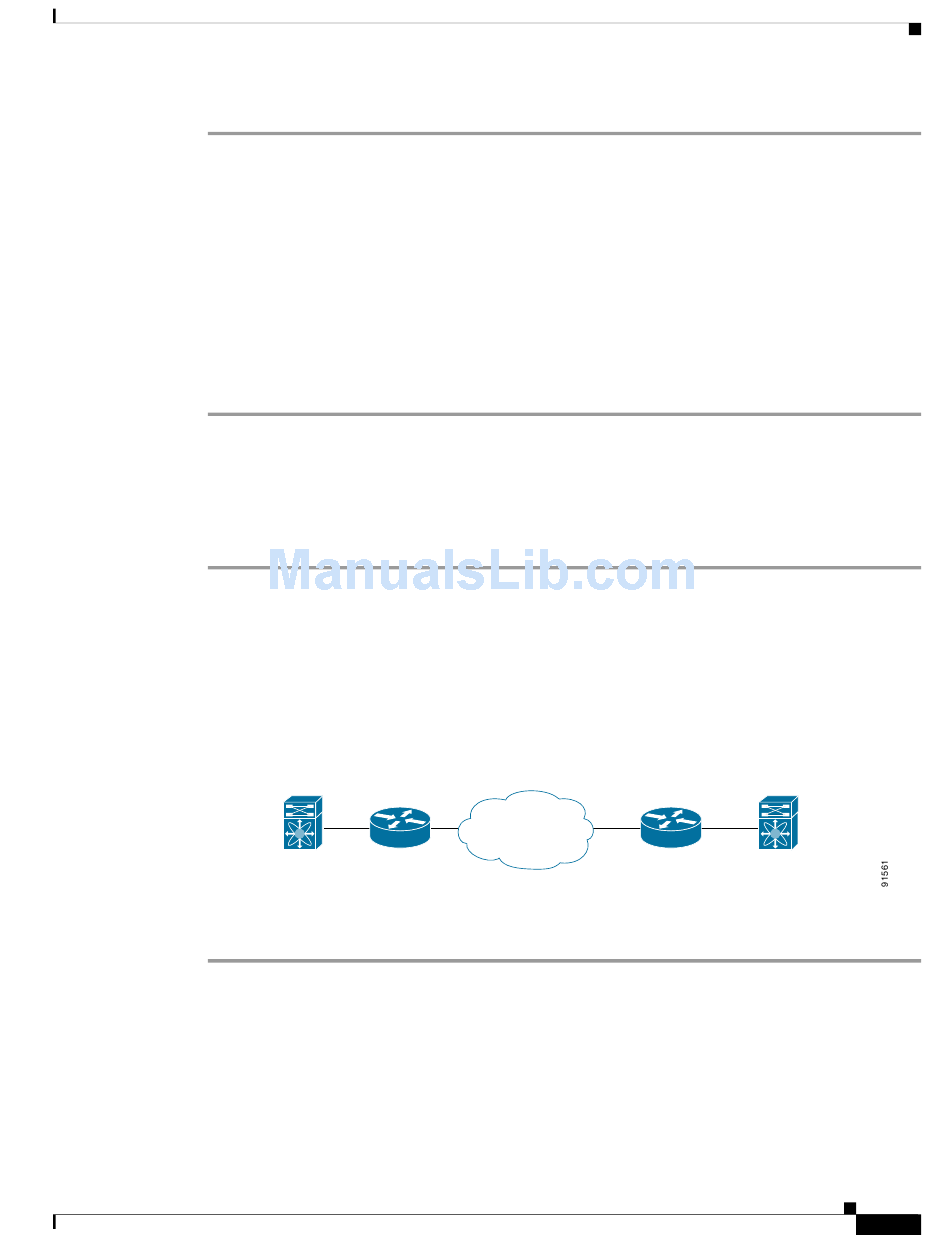

Figure 48-18
IP address of Gigabit Ethernet
interface 3/1 = 10.100.1.25
To create an FCIP profile in switch 1, follow these steps:
Verify that you are connected to a switch that contains an IPS module.
Step 1
From Fabric Manager, choose Switches > ISLs > FCIP in the Physical Attributes pane. From Device
Step 2
Manager, choose FCIP from the IP menu.
Click the Create Row button in Fabric Manager or the Create button on Device Manager to add a new
Step 3
profile.
Enter the profile ID in the ProfileId field.
Step 4
Enter the IP address of the interface to which you want to bind the profile.
Step 5
OL-17256-03, Cisco MDS NX-OS Release 4.x
Assigning Profiles to Each Gigabit Ethernet Interface
Switch 1
IP router IP router
IP
Network
IP address of Gigabit Ethernet
Cisco MDS 9000 Family Fabric Manager Configuration Guide
Using the FCIP Wizard
Figure 48-18 shows an
Switch 2
interface 3/1 = 10.1.1.1
48-15
