Enabling 32-Bit and 64-Bit RMON Alarms for Physical Components

To configure an RMON alarm for a physical component for a 64-bit alarm using Device Manager, follow
these steps:
Choose Admin > Events > Threshold Manager and click the Physical tab.
Step 1

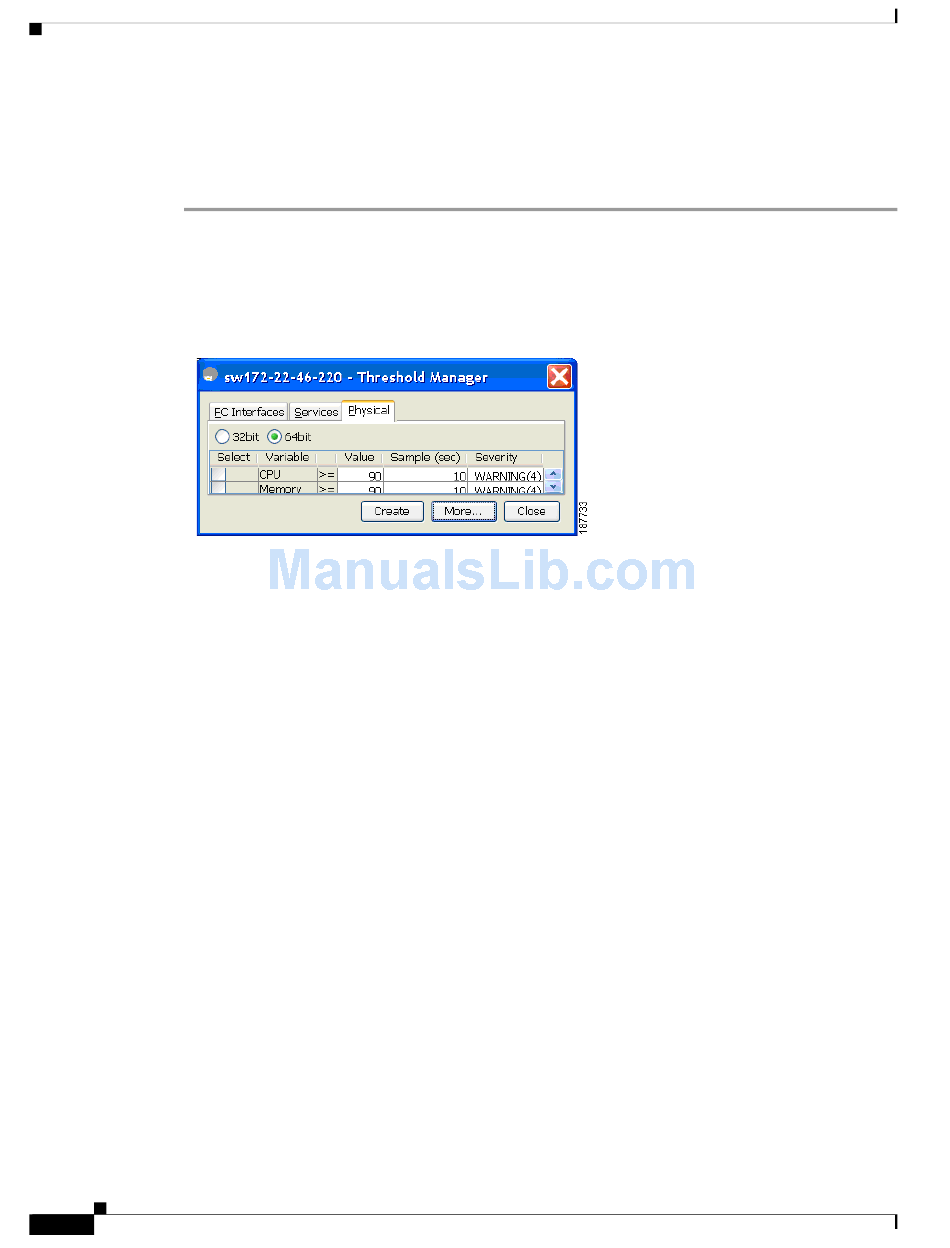

You see the Threshold Manager dialog box with the Physical tab for the 64-bit alarm selected as shown
in Figure
Figure 59-9
Check the check box in the Select column for each variable to monitor.
Step 2
Enter the threshold value in the Value column.
Step 3
Enter the sampling period in seconds.
Step 4
Choose one of the following severity levels to assign to the alarm: Fatal(1), Warning(2), Critical(3),
Step 5
Error(4), Information(5).
Click Create.
Step 6
Confirm the operation to define an alarm and a log event when the system prompts you to define a
Step 7
severity event.
If you do not confirm the operation, the system only defines a log event.
Click More, then click the 64-bit Alarms tab in the Threshold Manager dialog box to verify the alarm
Step 8
you created (see
Cisco MDS 9000 Family Fabric Manager Configuration Guide
59-10
59-9.
Physical Tab for the 64-Bit Alarm
Figure 59-10).
