Configuring SPAN
S e n d d o c u m e n t a t i o n c o m m e n t s t o m d s f e e d b a c k - d o c @ c i s c o . c o m
Close the two dialog boxes.
Step 10

Editing SPAN Sources

To edit a SPAN source using Device Manager, follow these steps:
Choose Interface > SPAN.
Step 1
You see the SPAN dialog box.
Step 2 Click the Sources tab.
You see the dialog box shown in
Figure 60-6
Step 3 Enter the VSAN list name in the VSAN List field.
Step 4 Click Edit Interface List.
You see the Source Interfaces dialog box.
Click Create.
Step 5
You see the Source Interfaces Interface Sources dialog box shown in
Figure 60-7
Click the browse button to display the list of available FC ports.
Step 6
Choose a port and click OK.
Step 7
Click the direction (receive or transmit) you want.
Step 8
Click Create to create the FC interface source.
Step 9
Cisco MDS 9000 Family Fabric Manager Configuration Guide
60-8

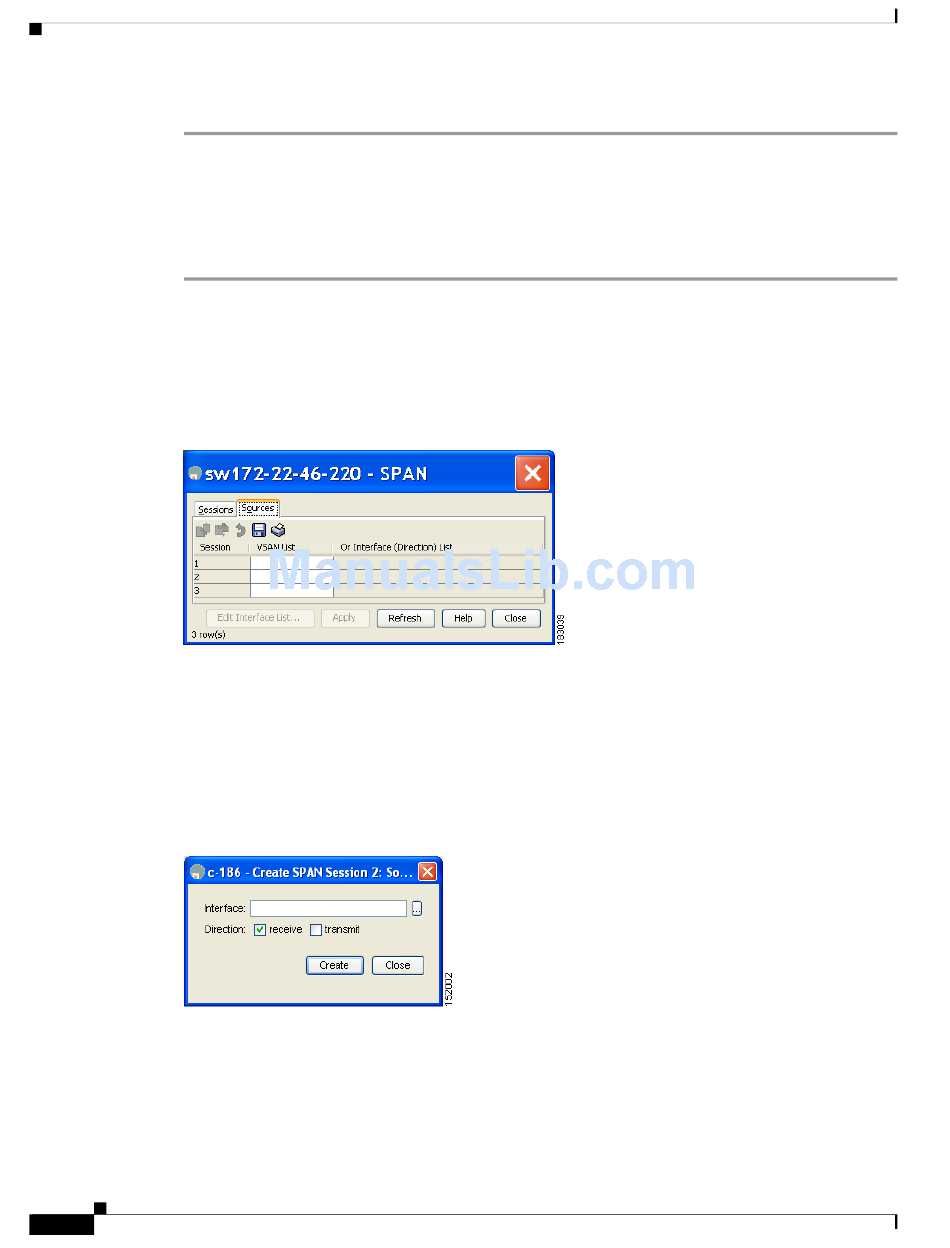

Figure 60-6.
SPAN Sources Tab
Source Interfaces Interface Sources Dialog Box
Chapter 60 Monitoring Network Traffic Using SPAN
Figure 60-7.
OL-17256-03, Cisco MDS NX-OS Release 4.x
