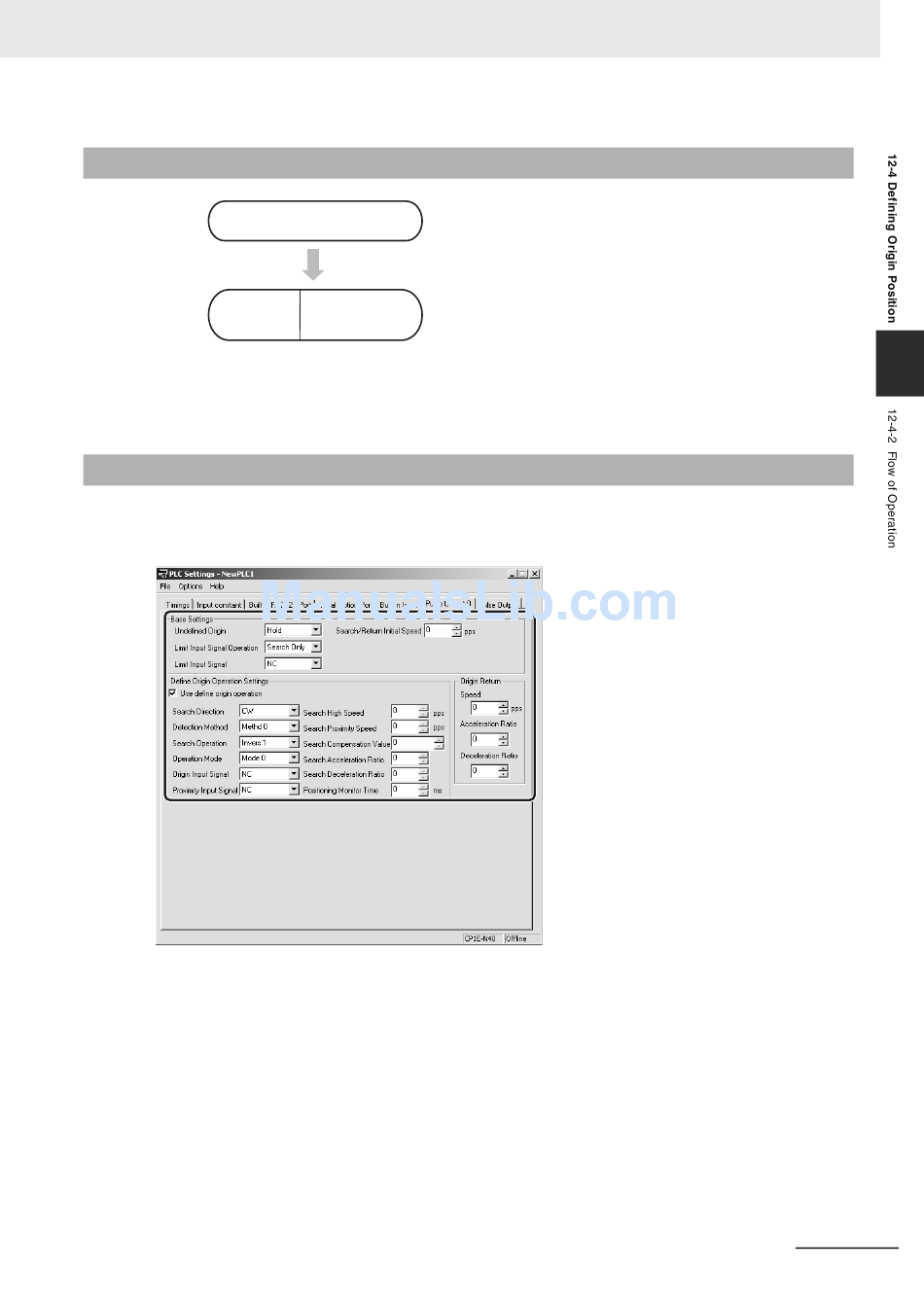

12-4-2 Flow of Operation

1
2
Ladder
program

12-4-3 Settings in PLC Setup

To perform an origin search or to use a Limit Input Signal as an input to a function other than origin
search, set the parameters on the Pulse Output 0 and Pulse Output 1 Tab Pages in the PLC Setup.
CP1E CPU Unit Software User's Manual(W480)
• Set the origin search parameters in the
PLC Setup
• Set output pulse 0 or 1, and whether to use
Cyclic task,
interrupt task
• Output the status of the Limit Signal Inputs
• Execute ORG. Specify an origin search.
Pulse Output 0 and Pulse Output 1 Tab
Pages of the PLC Setup using the CX-Pro-
grammer.
terminals 00 and 01, or 02 and 03 on the
CIO100 terminal block for pulse outputs.
and Positioning Completed Signal to Auxil-
iary Area bits.
