Precautions for Correct Use Precautions for Correct Use
The absolute pulse cannot be specified with the origin undefined. Please specify them when the
origin is defined by performing the origin searches.
Additional Information
The origin position is undefined in the following case. Please define the origin position by per-
forming the origin searches again.
• When the pulse output reset flag is turned ON
• When the RUN or MONITOR mode is changed to the PROGRAM mode

12-2-3 Application Example

Specifications and Operation

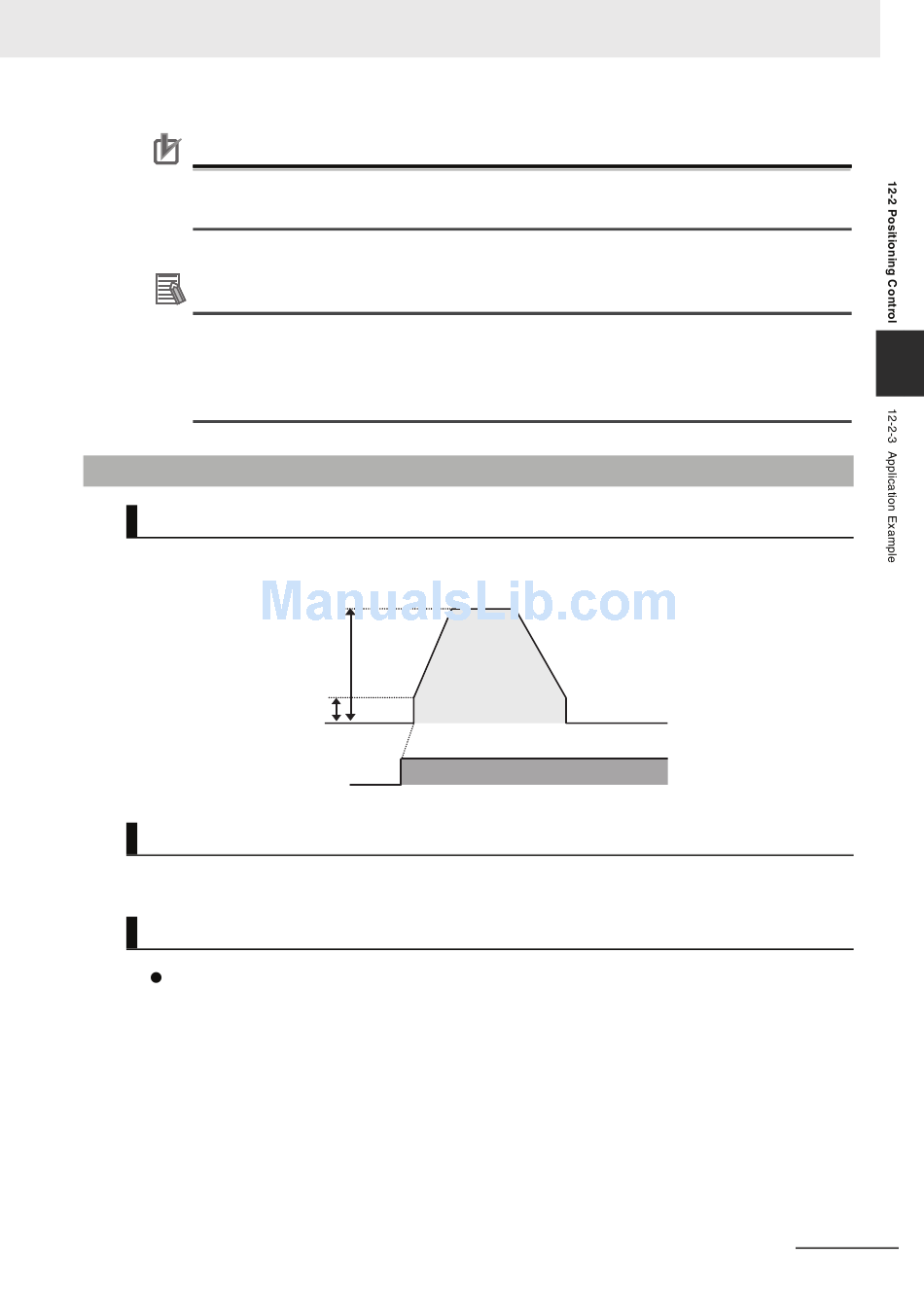

When the start input (CIO 0.00) goes ON, this example program outputs 600,000 pulses from pulse
output 1 to turn the motor.
Target frequency
Starting frequency
Start input
Applicable Instructions
PLS2
Preparations
PLC Setup
There are no settings that need to be made in the PLC Setup.
CP1E CPU Unit Software User's Manual(W480)
50,000 Hz
Acceleration
rate
300Hz/4ms
Number of output
pulses
600,000 pulses
100Hz
0.00
12 Pulse Outputs
Deceleration rate
200Hz/4ms
12
12-13
