18-3 Creating a Ladder Program

This section describes the use of CX-Programmer to create a ladder program.

18-3-1 Inputting a Ladder Program

This section shows how to input a ladder program for an example application using the CX-Programmer
commands.
Creating a New Project
To use the CX-Programmer, the first step is to create a new project. To create a new project, we must
specify the PLC type and CPU Unit model for which the ladder program and data to be created will be
used.
1

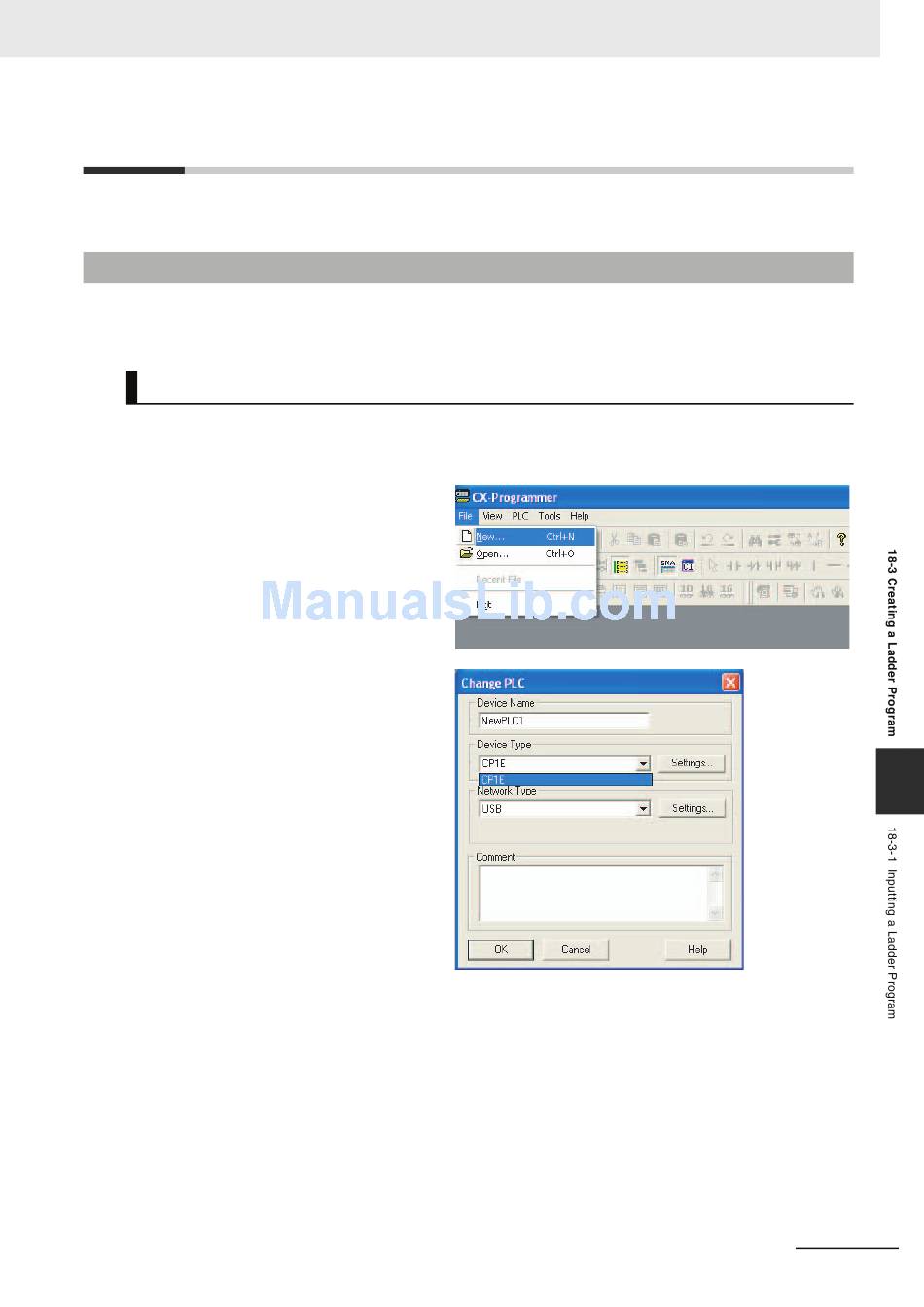

Select New from the File Menu.The
Change PLC Dialog Box will be dis-
played.
2
The CP1E will already be selected
as the Device Type.
CP1E CPU Unit Software User's Manual(W480)
18 Programming Device Operations
18
18-7
