1 Overview
1-1

CP1E Overview

1-1-1

Overview of Features

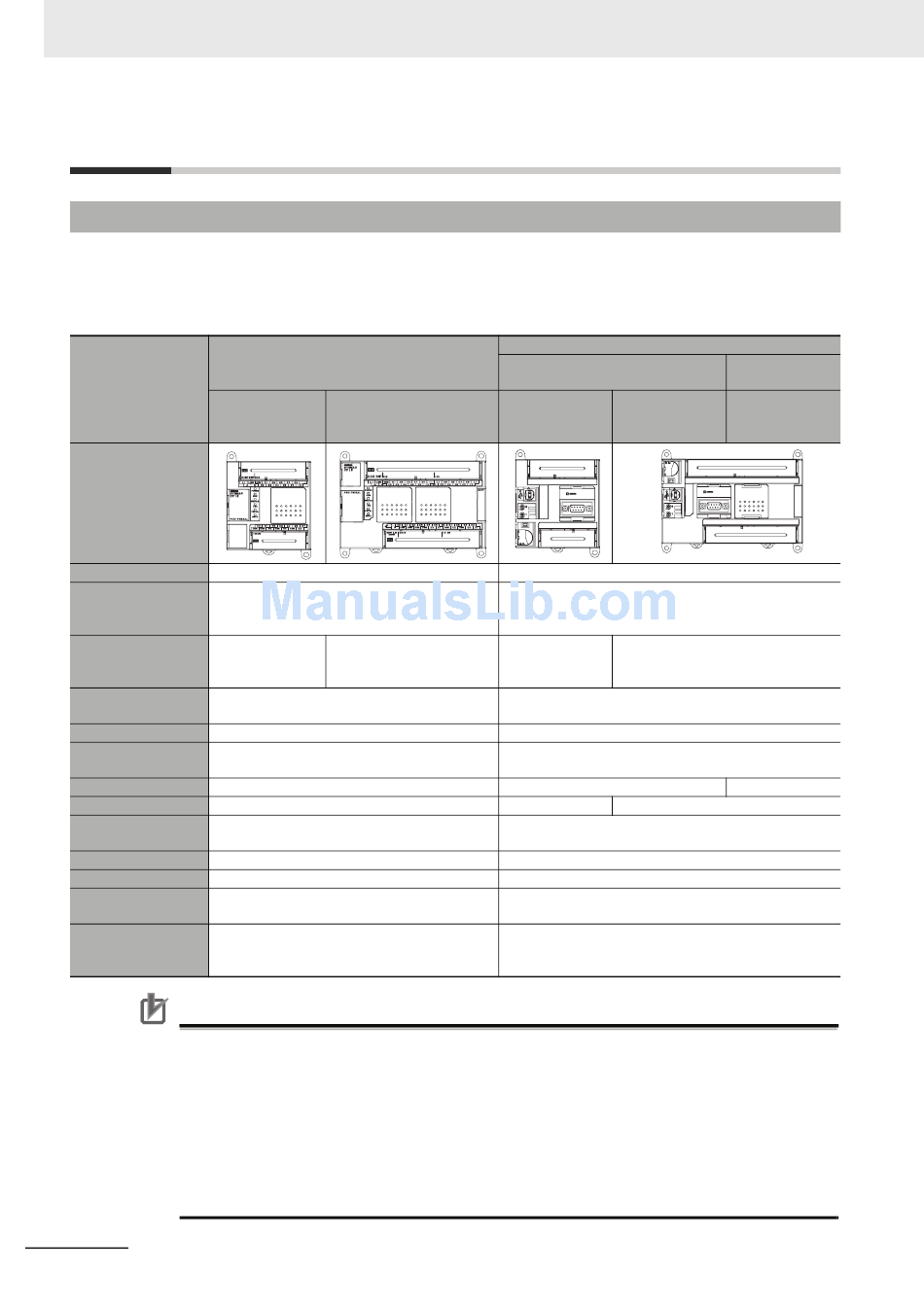

The SYSMAC CP1E Programmable Controller is a package-type PLC made by OMRON that is
designed for easy application. The CP1E includes E-type CPU Units (basic models) for standard control
operations using basic, movement, arithmetic, and comparison instructions, and N/NA-type CPU Units
(application models) that supports connections to Programmable Terminals, Inverters, and Servo Drives.
CPU with 10, 14
or 20 I/O Points
Appearance
Program capacity 2K steps
DM Area capacity 2K words
Of these 1,500 words can be written to the
built-in EEPROM.
Mounting Expan- Not possible.
sion I/O Units and
Expansion Units
Model with transis- Available (CPU Unit with 10 I/O points only)
tor outputs
Pulse outputs Not supported.
Built-in serial com- Not provided.
munications port
Built-in analog Not available.
Option Board Not supported.
Connection port for USB port
Programming Device
Clock Not provided.
Using a Battery Cannot be used.
Backup time of 50 hours at 25°C
built-in capacitor
Battery-free opera- Always battery-free operation.
tion Only data in the built-in EEPROM will be retained
if power is interrupted for longer than 50 hours.
Precautions for Correct Use Precautions for Correct Use
For CP1E CPU Units, the following I/O memory area will be unstable after a power interruption.
• DM Area (D) (excluding words backed up to the EEPROM using the DM function)
• Holding Area (H)
• Counter Present Values and Completion Flags (C)
• Auxiliary Area related to clock functions(A)
Mount the CP1W-BAT01 Battery (sold separately) to an N/NA-type CPU Unit if data in the above
areas need to be retained after a power interruption. A Battery cannot be mounted to an E-type
CPU Unit.
1-2
Basic Models
(E-type CPU Units)
CPU Unit with 30 or 40
I/O Points
3 Units maximum
CP1E Application Models
N-type CPU Units
CPU Unit with
CPU with 14 or
30, 40 or 60 I/O
20 I/O Points
Points
8K steps
8K words
Of these 7,000 words can be written to the built-in
EEPROM.
Not possible. 3 Units maximum
Available
Supported (Model with transistor outputs only)
RS-232C port provided
Not available.
Not supported. Supported (for one port)
USB port
Provided
Can be used (sold separately).
40 hours at 25°C
Battery-free operation if no battery is attached. Only
data in the built-in EEPROM will be retained if power is
interrupted for longer than 40 hours.
CP1E CPU Unit Software User's Manual(W480)
NA-type CPU
Units
CPU Unit with
20 I/O Points
Available
