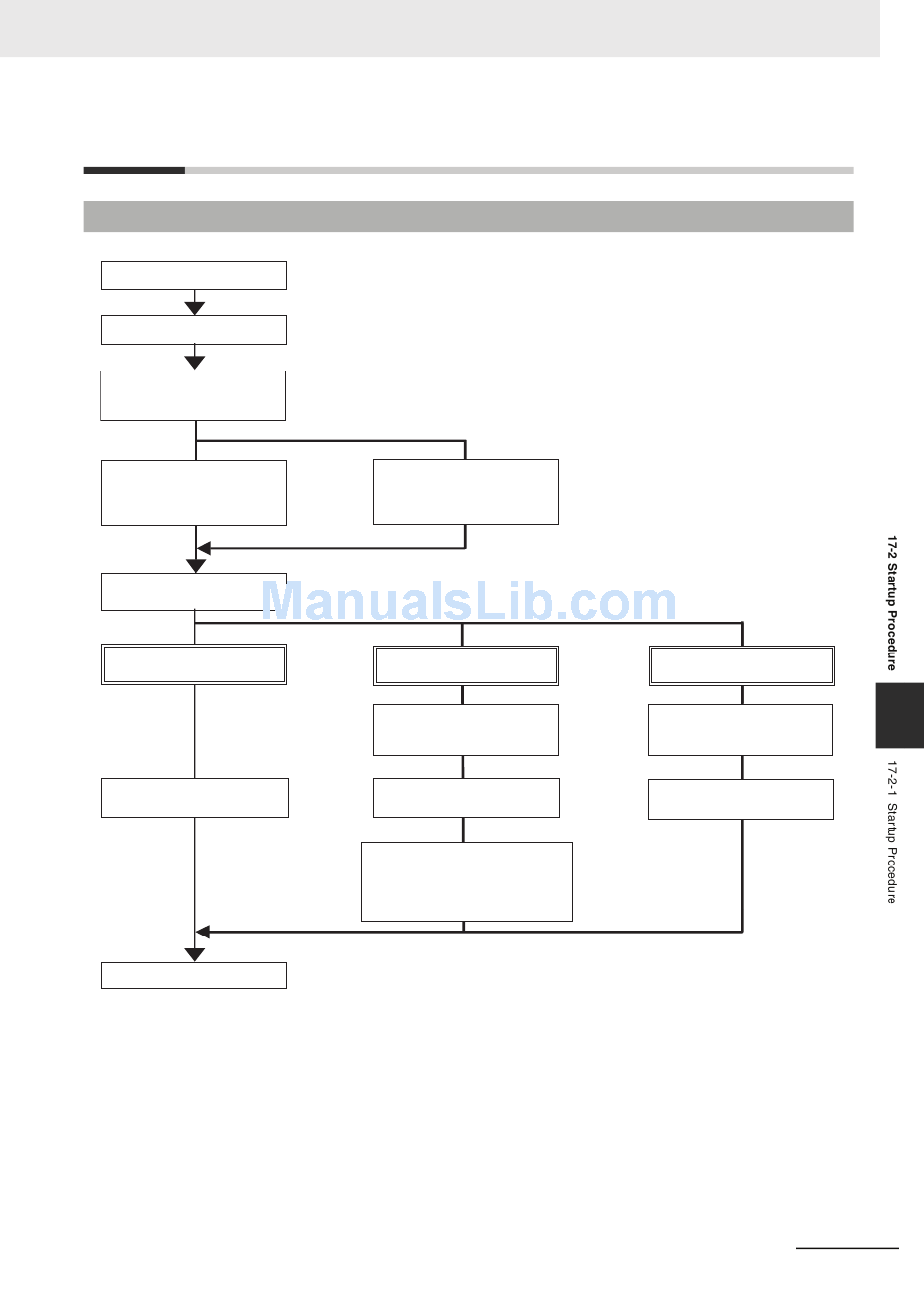

17-2 Startup Procedure

17-2-1 Startup Procedure

Install the Ethernet Option Board
Turn ON the power of the CPU Unit
Set the serial communications
settings of the option port with the
CX-Programmer
Set by USB port
Set the baud rate to 115200bps,
mode to Host Link and unit number
to 0.
Turn the power of the CPU Unit
OFF and then ON again
Use the Ethernet Option Board
without making any settings
Use the default IP address
192.168.250.1
Start communication
CP1E CPU Unit Software User's Manual(W480)
Set by Ethernet port
Set the baud rate to 115200bps,
mode to Host Link and unit number
to 0.
Set only the IP address
Access from the Web browser
using the default IP address
http://192.168.250.1/E00.htm
Set the local IP address to 0.0.0.0
from the Web browser
Set in the allocated words in the DM area
(set by the ladder programmer
or
transfer the PLC memory with the
CX-Programmer to make settings)
17 Ethernet Option Board
Set system settings freely
Access from the Web browser
using the default IP address
http://192.168.250.1/E00.htm
Set any value from the Web
browser
