12 Pulse Outputs

12-4-6 Origin Return

It is the function to move the origin to the defined position by origin searches or changing PVs.
An origin return operation moves the motor to the origin position from any other position. The origin
return operation is controlled by ORG.

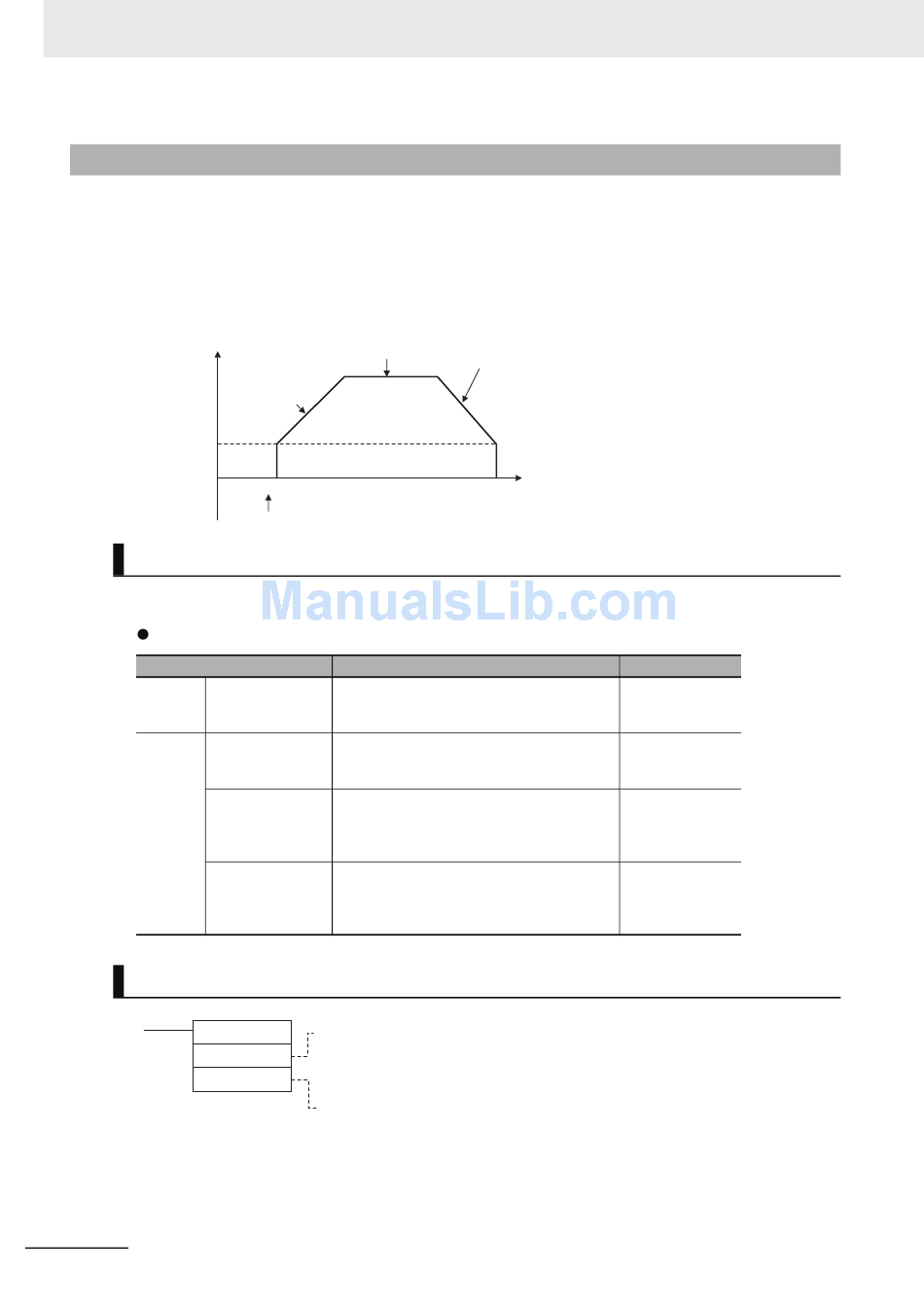

The origin return operation returns the motor to the origin by starting at the specified speed, accelerat-
ing to the target speed, moving at the target speed, and then decelerating to a stop at the origin posi-
tion.
Pulse frequency

Origin return

acceleration rate
Origin return
initial speed
Started by executing ORG
PLC Setup
The various origin return parameters are set on the Pulse Output 0 Tab Page in the PLC Setup.
Origin Return Parameters
Name
Base Search/Return
Settings Initial Speed
Origin Speed
Return
Acceleration Ratio
(Rate)
Deceleration Ratio
(Rate)
Origin Return Instruction
ORG
C1
C2
Note An instruction execution error will occur if the origin is not defined (relative coordinate system)
when the ORG instruction is executed to perform an origin return operation.
12-30
Origin return target speed
Start
Sets the motor's starting speed when the
origin return is executed. Specify the speed
in the number of pulses per second (pps).
Sets the motor's target speed when the
origin return is executed. Specify the speed
in the number of pulses per second (pps).
Sets the motor's acceleration rate when the
origin return function is accelerating. Specify
the amount to increase the speed (Hz) per
4-ms interval.
Sets the motor's deceleration rate when the
origin return function is decelerating. Specify
the amount to decrease the speed (Hz) per
4-ms interval.
C1:Port specifier
Pulse output 0: #0000
Pulse output 1: #0001
C2:Control data
Origin search and pulse + direction output method: #0100
Origin return
deceleration rate
Time
Stop
Setting
0 to 100k pps
1 to 100k pps
1 to 65,535
(Hz/4ms)
1 to 65,535
(Hz/4ms)
