Automatic Symbol Name Creation; Automatic I/O Comment Creation - Omron CP1E CPU UNIT SOFTWARE User Manual

· Bits:
Example: Incrementing by +16 Bits (One Word)
Example: CIO 0.00 is incremented to CIO 1.00.
· Words:
Example: Incrementing by +10 Words
Example: D100 is incremented to D110.
Automatic Creation of Symbol Names and I/O Comments
If there are symbol names or I/O comments in the rung that was copied, executing the Address
Increment Copy Command will automatically create symbol names and I/O comments.

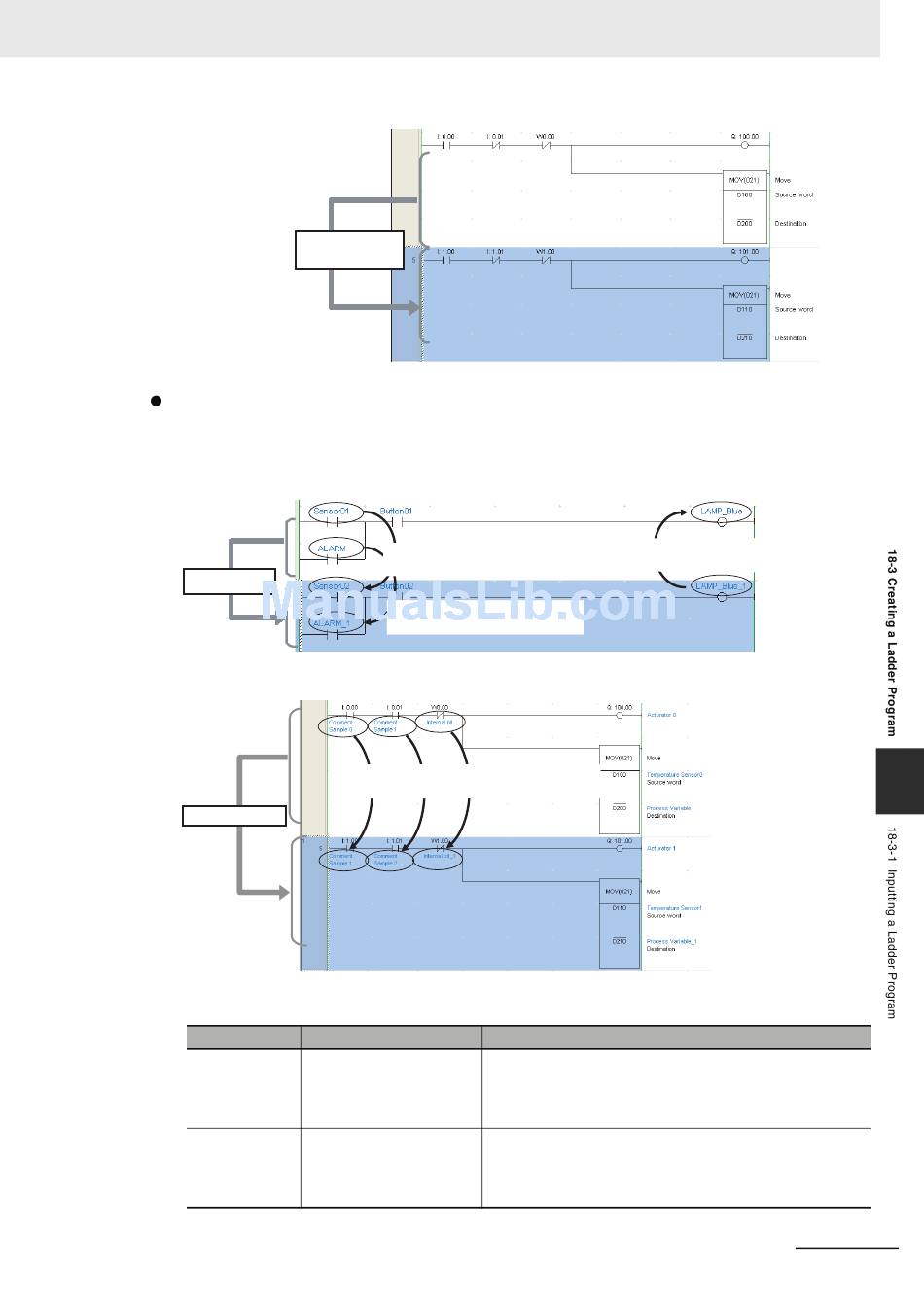

• Automatic Symbol Name Creation

Automatically
incremented.

• Automatic I/O Comment Creation

Automatically incremented.
• Automatic Creation Rules
By default, automatic creation is governed by the following rules.
Target
Symbol names
I/O comments
CP1E CPU Unit Software User's Manual(W480)
Addresses are
automatically incremented
when the rung is pasted.
Example:
The symbol name Sensor02 is automatically
created from the symbol name Sensor01.
Example:
The symbol name ALARM_1 is automatically
created from the symbol name ALARM.
Any number at the end of
When there are no numbers in the I/O
an I/O comment is comment, sequential numbers starting
incremented by 1. from 1 will be added after an underbar.
Automatic creation rule
Increment the numbers
found from tail.
Increment the numbers
found from tail.
18 Programming Device Operations
Example:
The symbol name LAMP_Blue_1 is automatically
created from the symbol name LAMP_Blue.
Description
The symbol name is searched for a number starting from the
end, and any number that is found is incremented by 1.
If no number is found, an underbar and a sequential number
starting from 1 are appended.
The I/O comment is searched for a number starting from the
end, and any number that is found is incremented by 1.
If no number is found, an underbar and a sequential number
starting from 1 are appended.
