11 High-speed Counters

System Configuration

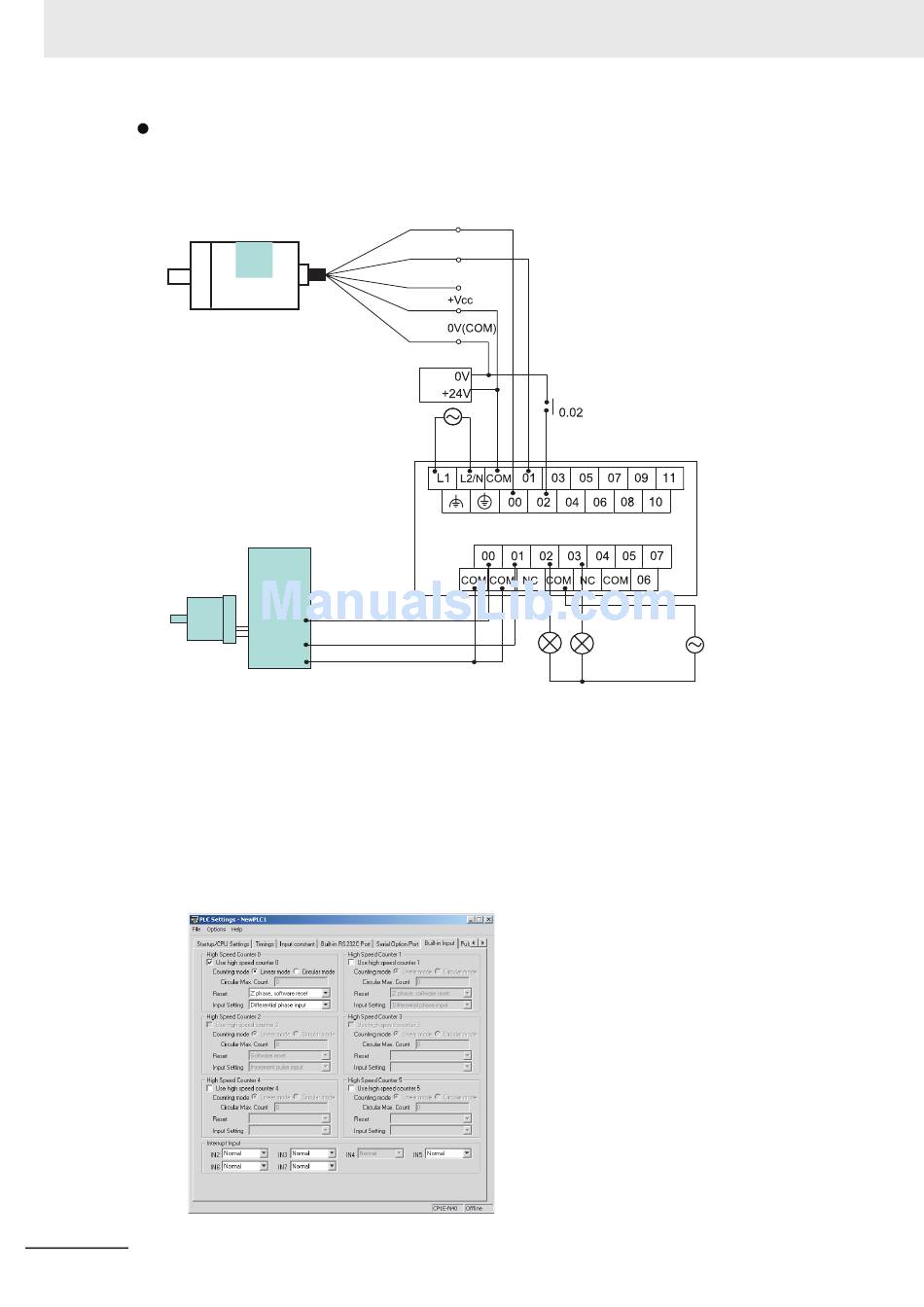

Wiring Example
Encoder (power
supply: 24 VDC)
Example: E6B2-CWZ6C
NPN open-collector output
Example: Inverter
PLC Setup
Use the following procedure to enable high-speed counter 0.
1
Open the PLC Settings Dialog Box.
2
Click the Built-in Input Tab.
11-28
Phase A
Black
White Phase B
Orange Phase Z
Brown
Blue
24 VDC
power supply
100 to 240 VAC
Motor running: CIO 100.00
Motor low speed output: CIO 100.01
Start motor
CP1E-N20DR-A
Error stop
position output:
CIO 100.03
(indicator)
Normal stop
position output:
CIO 100.02
(indicator)
