Programming Examples - Omron CP1E CPU UNIT SOFTWARE User Manual

14 Serial Communications

14-4-4 Programming Examples

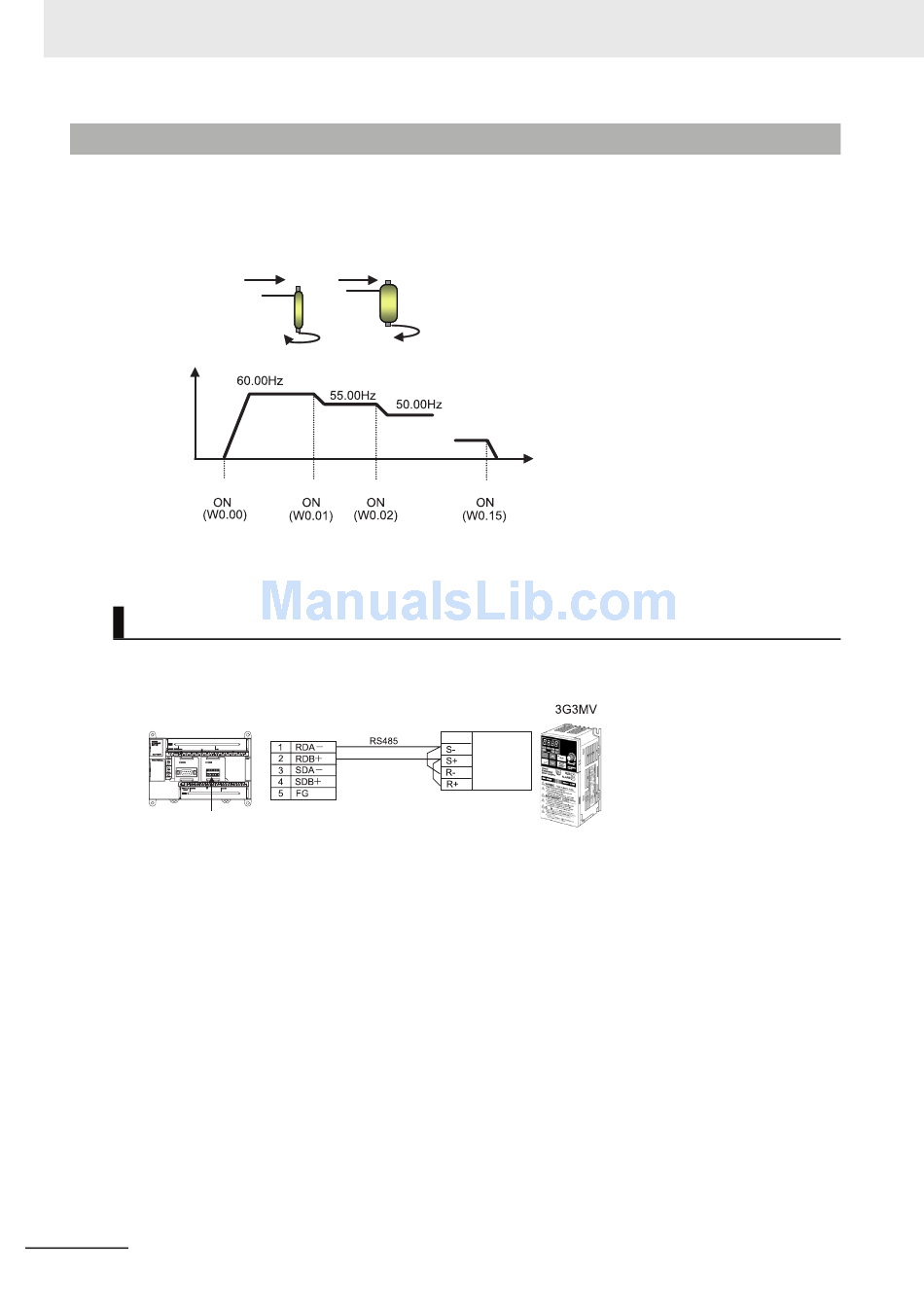

A bobbin winder on a spinning machine will be used in the following example.
The speed of the bobbin winder must be controlled as the thread is wound because the speed of the
thread is constant.
Speed
Contact A
The target speed is changed according to inputs from multiple contacts. Acceleration and deceleration
are controlled using the acceleration and deceleration of an inverter.
Wiring Examples
The CP1E and OMRON 3G3MV Inverter are connected using RS-485 for frequency and start/stop con-
trol.
CP1E N-type CPU Unit
with 30 I/O Points
CP1W-CIF11/12
RS-422A/485 Option Board
14-14
Constant thread speed
Fast rotation Slow rotation
Contact B Contact C
CP1W-CIF11/12
RS-422A/485 Option Board
50 m max.
Stopped
Contact Z
Symbol
Control circuit
terminal block
(communications
terminals)
