Pulse + Direction Input

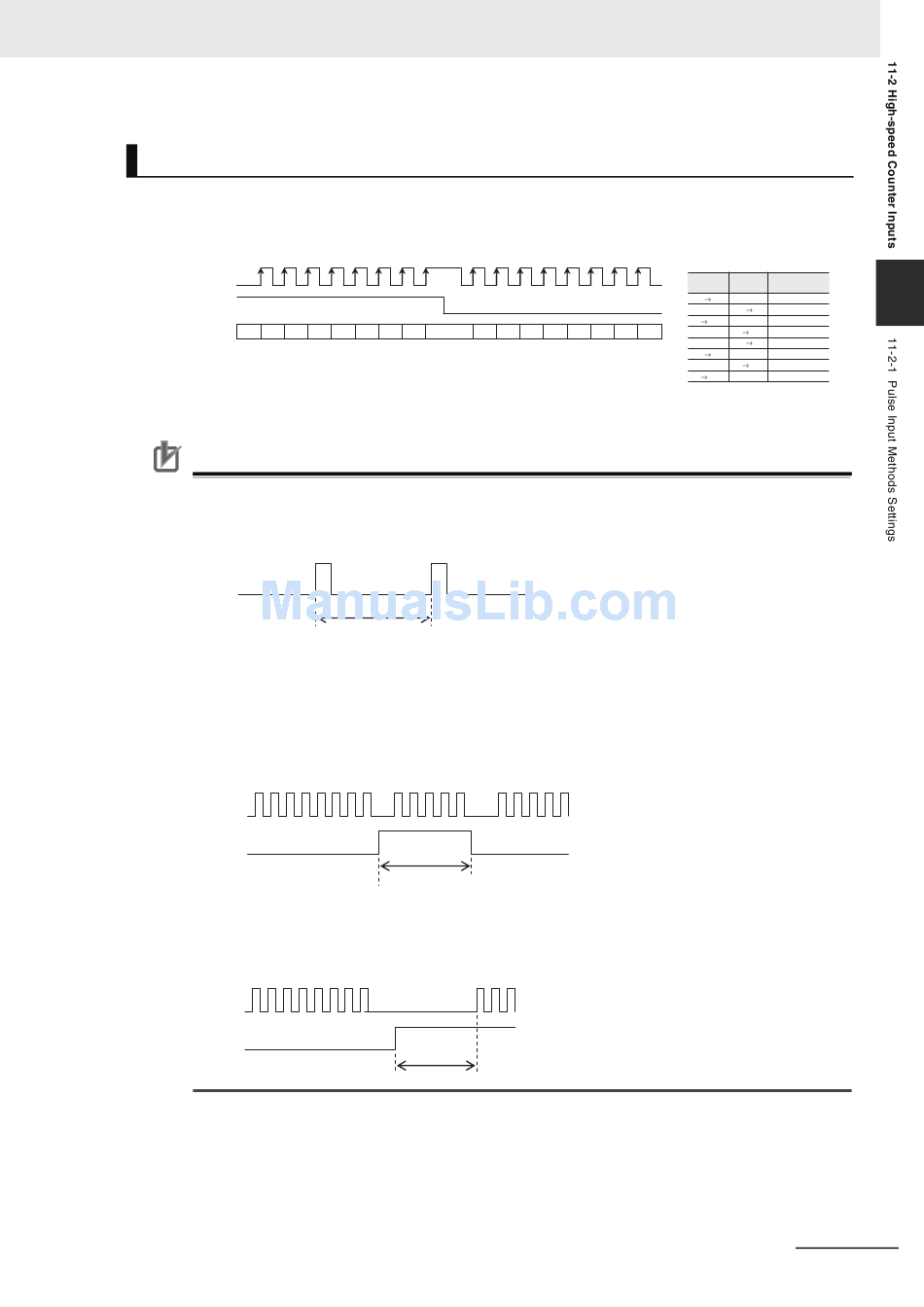

The Pulse + Direction Input uses a direction signal and a pulse signal. The count is incremented or dec-
remented depending on the status (ON or OFF) of the direction signal.
Pulse
Direction
0
Precautions for Correct Use Precautions for Correct Use
• Interval of Phase-Z input signal
Do not input the phase-Z signal at a high frequency. The interval of phase-Z input signal must
be longer than 500µs.
If the phase-Z signal is input at a high frequency, cycle time exceeded error may occur.
Phase-Z signal
• Interval of direction changing
If the input setting is set for pulse+direction inputs, do not change the direction at a high fre-
quency. The interval of direction signal ON or OFF must be longer than 3ms plus the sum of
execution time for interrupt tasks that may possibly happen at the same time. (For CPU Unit
version 1.0 or earlier, the interval must be longer than 6 ms plus the sum of execution time for
interrupt tasks that may possibly happen at the same time.)
The sum of execution time for interrupt tasks in one cycle is stored in A442.
If the direction signal is ON or OFF at a high frequency, count values may not agree.
Pulse
Direction
• Interval of pulse input after direction changing
If the input setting is set for pulse+direction inputs, the Interval of pulse input after the direction
changing must be longer than 500µs.
If the pulse is output immediately after the direction changing, count values may not agree.
Pulse
Direction
CP1E CPU Unit Software User's Manual(W480)
1 2 3 4 5 6 7
500µs min.
3ms plus the sum of execution time
for interrupt tasks
500µs min.
8 7 6 5 4 3 2
11 High-speed Counters
Conditions for Incrementing/
Decrementing the Count
Direction Pulse Count value
OFF ON OFF No change
ON OFF ON Increment
No change
ON OFF ON
1 0 No change
OFF ON OFF
OFF OFF ON Decrement
No change
OFF ON ON
No change
ON ON OFF
No change
ON OFF OFF
· The count is incremented when the
direction signal is ON and
decremented when it is OFF.
· Only rising edges are counted.
