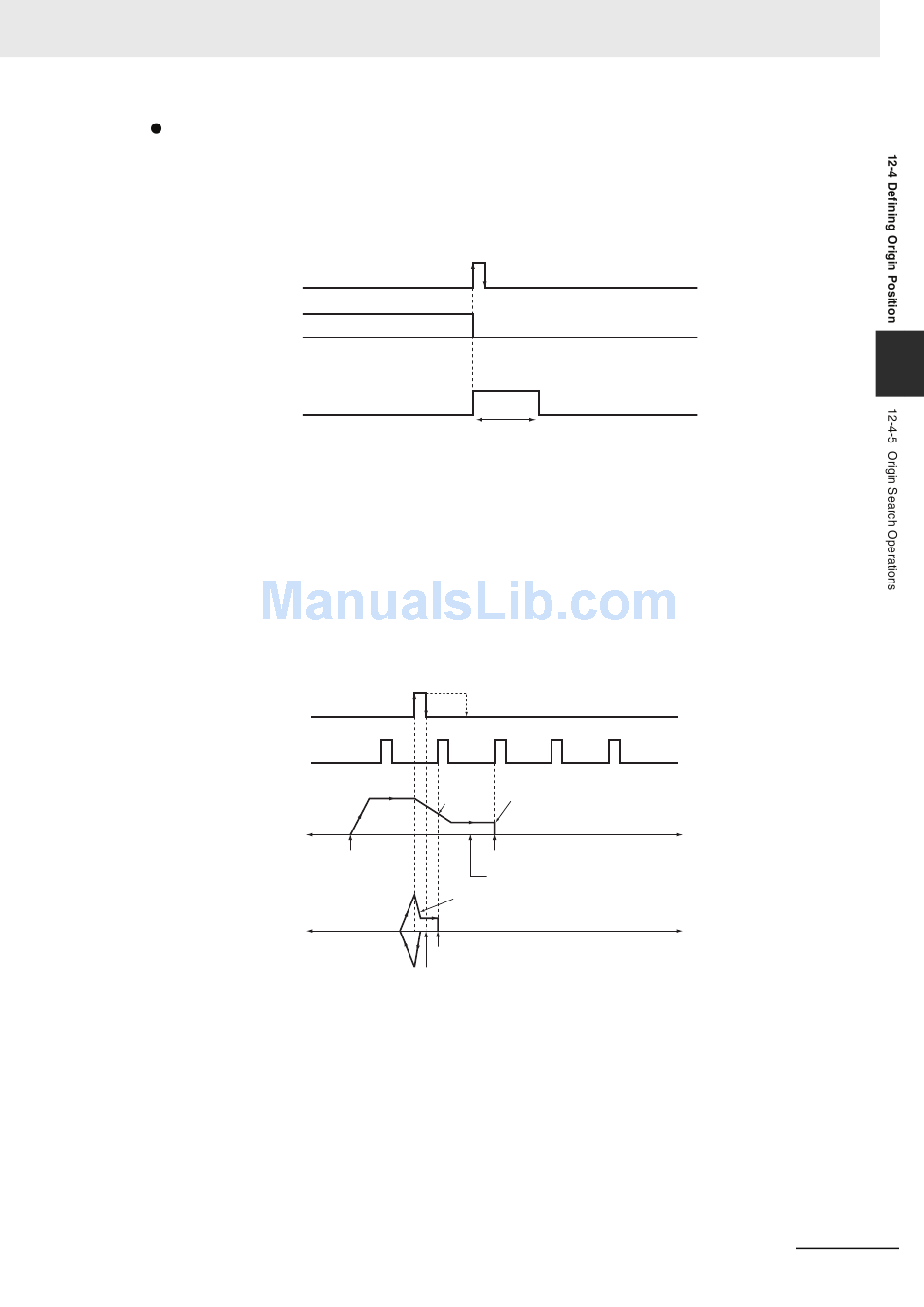

Operating Mode 1 (with Error Counter Reset Output, without Positioning
Completed Input)
Connect the phase-Z signal from the Servo Drive to the Origin Input Signal.
When the Origin Input Signal is received, the pulse output will be stopped and the Error Counter
Reset Signal will be output for about 20 to 30 ms.
Origin Input Signal
(phase-Z signal)
Pulse output
Error Counter
Reset Signal
Though the Origin Proximity Input Signal is received, the signal will be ignored and the motor will
begin decelerating from the origin search high speed to the origin search proximity speed. In this
operating mode, the motor will stop at the Origin Input Signal after deceleration is completed.
Operating Mode 1 with Origin Proximity Input Signal Reverse (Origin
Detection Method Setting = 0)
The Origin Input Signal can be detected immediately after the Origin Proximity Input Signal turns
OFF if the deceleration time is short, e.g., when starting from within the Origin Proximity Input Sig-
nal. Set an Origin Proximity Input Signal dog setting that is long enough (longer than the decelera-
tion time.)
Origin Proximity
Input Signal
Origin Input Signal
(phase-Z signal)
Pulse output
(The deceleration time is
relatively long in this case.)
(The deceleration time is
relatively short in this case.)
CP1E CPU Unit Software User's Manual(W480)
1
0
1
0
1
0
1
0
Origin Input
Signal is
ignored during
deceleration
CCW
Starts
when ORG is executed
CCW
Stop*
Starts
when ORG is executed
Approx. 20 to 30 ms
Verify that the Origin Proximity Input Signal's dog setting
is long enough (longer than the deceleration time.)
Motor stopped by an Origin Input
Signal received after deceleration
Stop
Ideal time for the Origin Proximity
Input Signal to go OFF
(Settings when the deceleration time is short)
*
The Origin Input Signal can be detected
immediately after the Origin Proximity
Input Signal turns OFF if the deceleration
time is short, e.g., when starting from
within the Origin Proximity Input Signal.
12 Pulse Outputs
CW
CW
12-25
12
