Procedure
1
Connect the Ethernet Option Board to the computer
Use cross cables when connecting directly, use straight cables when connecting with hubs.
2
Set computer's IP address by manual
(1) Select Local Area Connection in Windows' Network Connection Tab. Right-click and
select Properties in the pop-up menu.
(2) Select Internet Protocol (TCP/IP) - Properties.
(3) Select Use the following IP address, and then set computer's IP address by manual.
Set computer's IP address to 192.168.250.A.
The setting range of the post number A is 2 to 254.
For example, set to 192.168.250.2.
3
Register the target PLC using the CX-Programmer
(1) CX-Programmer's Change PLC Dialog Box
(a) Set Device Name to the target PLC, PLC0 for example.
(b) Select Ethernet in Network Type.
(c) Click the Settings Button on the right side of Network Type.
(2) Network Settings [Ethernet] Dialog Box
(a) The settings in the Netwok Tab are as follows.

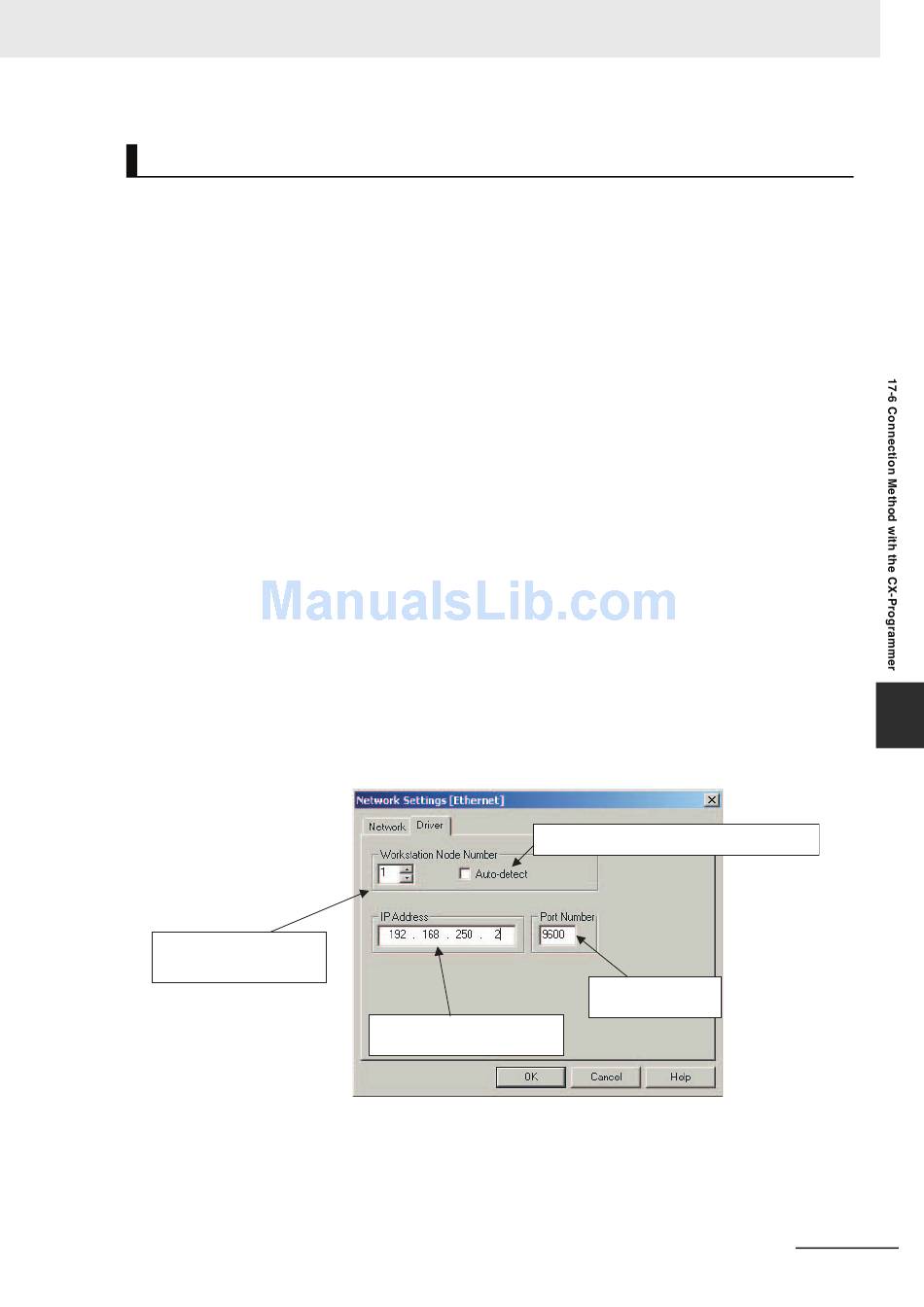

(b) The settings in the Driver Tab are as follows.
FINS node address is the computer's
IP address host number.
In this example, it is 2.
CP1E CPU Unit Software User's Manual(W480)
• Set the network address to 0 (default) and the node address to 1 in FINS
Destination Address settings.
• Set Frame Length to 540 bytes max.
• Set Response Timeout(s) to 5.
Set the Ethernet Option Board's IPaddress
to 192.168.250.1.
17 Ethernet Option Board
FINS node address generates automatically from the IP address
in the computer.
Set the UDP port number to
9600 (default).
