11 High-speed Counters
When the PV of the high-speed counter matches target value 1 (3000), interrupt task 4 is executed.

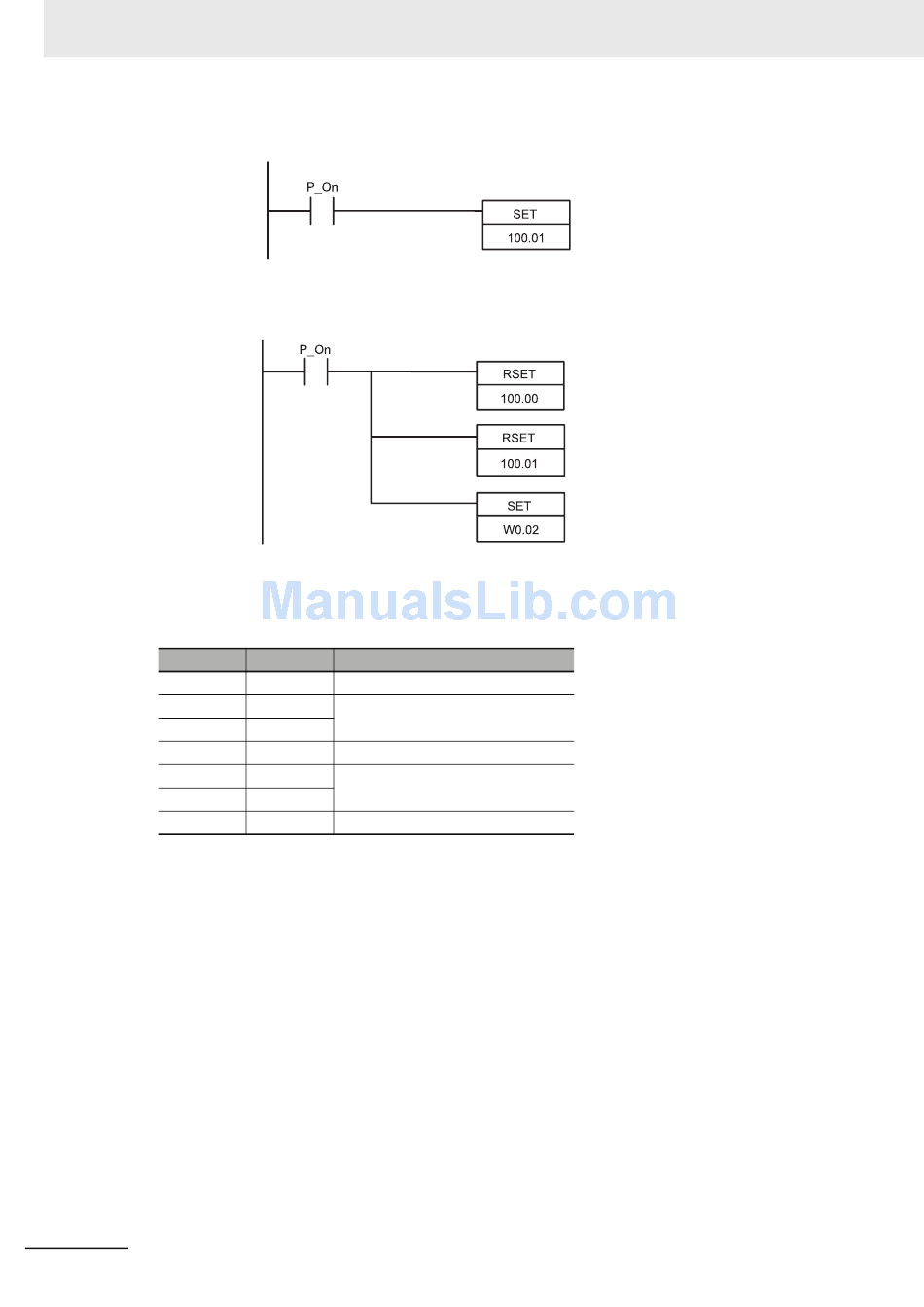

Interrupt task 4
When the present vale of the high-speed counter matches target value 2 (3500), interrupt task 5 is
executed.
Interrupt task 5
DM Area Setup
The comparison table for the CTBL (COMPARISON TABLE LOAD) instruction is set in D600 through
D606.
Word
D600
D601
D602
D603
D604
D605
D606
11-30
Value Contents
0002 Number of target values: 2
0BB8 Target value 1: 3000 (BB8 hex)
0000
0004 Target value 1: Interrupt task No.4
0DAC Target value 2: 3500 (DAC hex)
0000
0005 Target value 2: Interrupt task No.5
Turns ON the motor
low speed output
Turns OFF the
motor run output
Turns OFF the motor
low speed output
Turns OFF the motor
stopped output
