Printer specifications and requirements
4635/180 printer
with inverter
feeder/stacker and
three feeder/
stackers
6-10

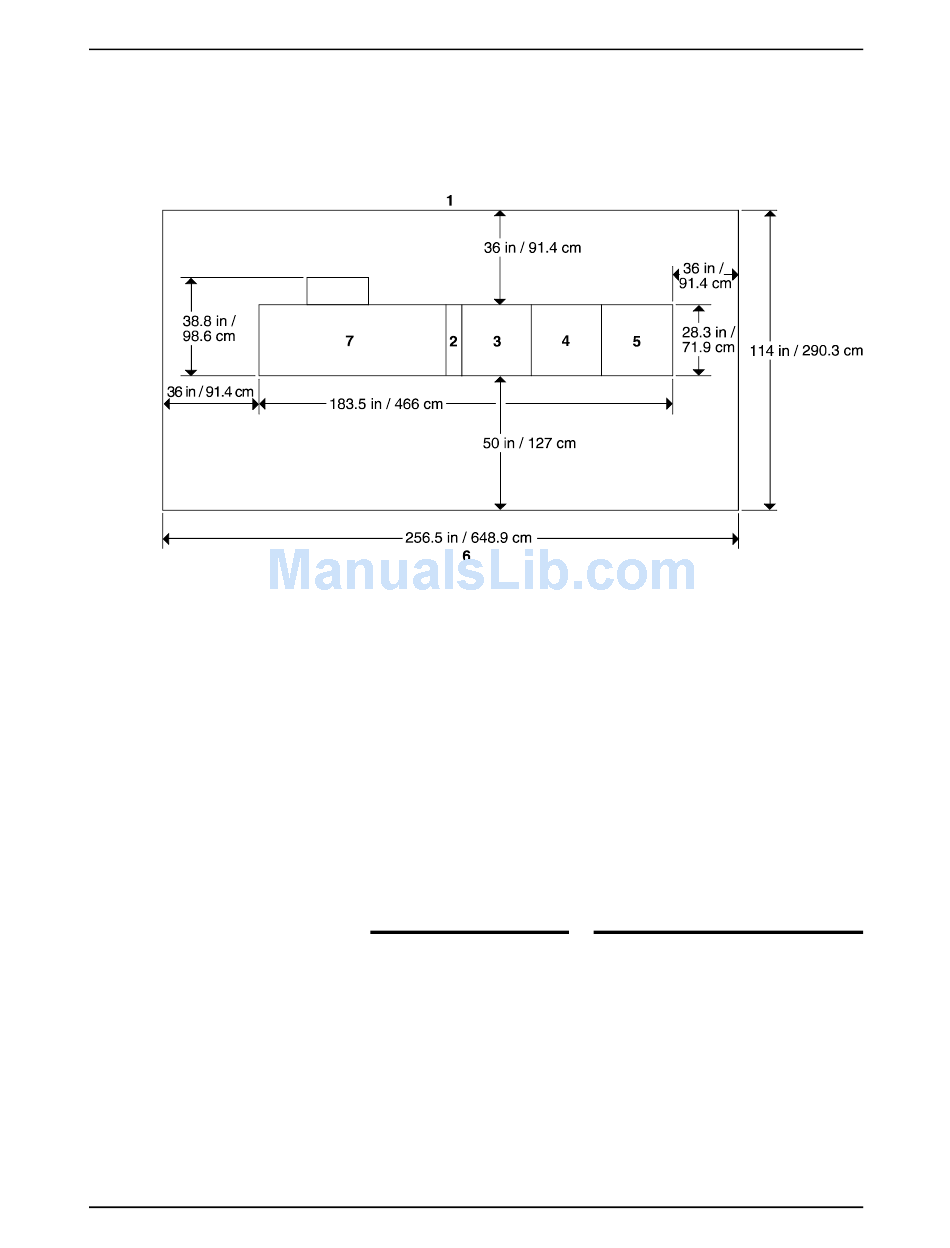

The following illustrates a top view of the space requirements for
the printer with an inverter feeder/stacker and two feeder/
stackers.
Figure 6-5. 4635/180 printer with inverter feeder/stacker +
feeder/stacker + feeder/stacker
1. Back of system
2. Inverter
3. Feeder/stacker
4. Feeder/stacker
5. Feeder/stacker
6. Front of system
7. Printer
The dimensions of the printer with the inverter feeder/stacker
and three feeder/stackers are as follows:
Dimension
Width:
Depth:
Height:
Total weight:
Total space requirement:
Specifications
215.75 inches / 548 cm
38.8 inches / 98.6 cm
59.6 inches / 151.3 cm
3,630 pounds / 1,648.9 kg
287.75 by 114 inches /
730.8 by 290.3 mm
Installation Planning Guide
