Controller specifications and requirements
Sun Ultra 60
workstation
placement
5-6
Following are guidelines for placement of the Sun Ultra 60
workstation components of the printer controller.

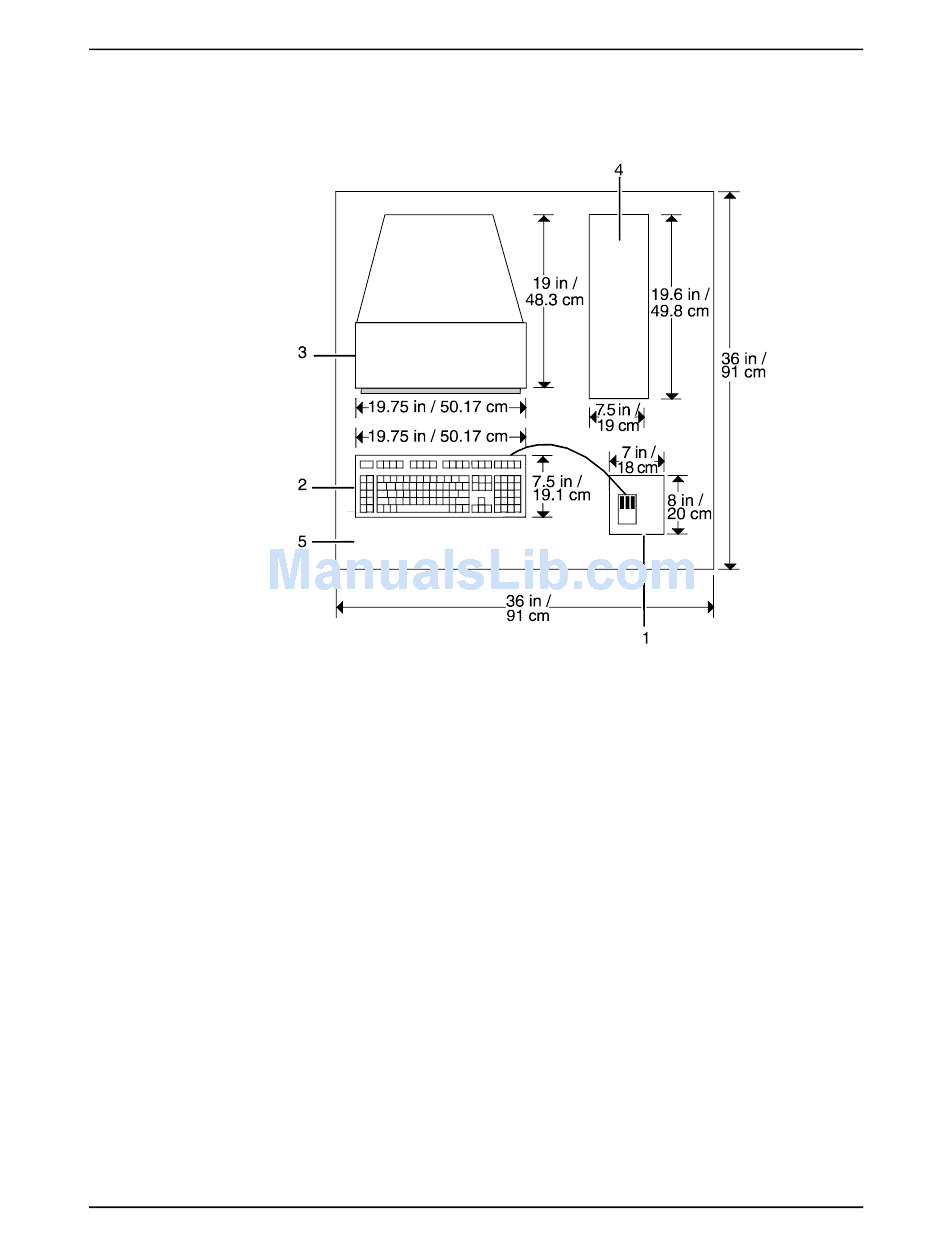

Figure 5-3. Sun Ultra 60 printer controller hardware
1. Mouse and mouse pad
2. Keyboard
3. Monitor
4. Processor
5. Table
To ensure consistent performance and avoid any damage to
equipment, follow these rules for placing the components of the
Sun Ultra 60 controller.
Do:
Place the monitor and processor on a desk or table top,
separate from the printer. The monitor should be placed
beside the processor, on the same surface. (The cartridge
tape drive may be placed on top of the processor.)
Keep the processor in an upright, vertical position as
illustrated below.
Installation Planning Guide
