Configuration diagrams with bypass transport
Installation Planning Guide
The following diagrams show the dimensions and space
requirements of the 96, 4635, and 180 with a bypass transport.
These diagrams represent top views of the components,
surrounded by the minimum access space requirements on all
sides.

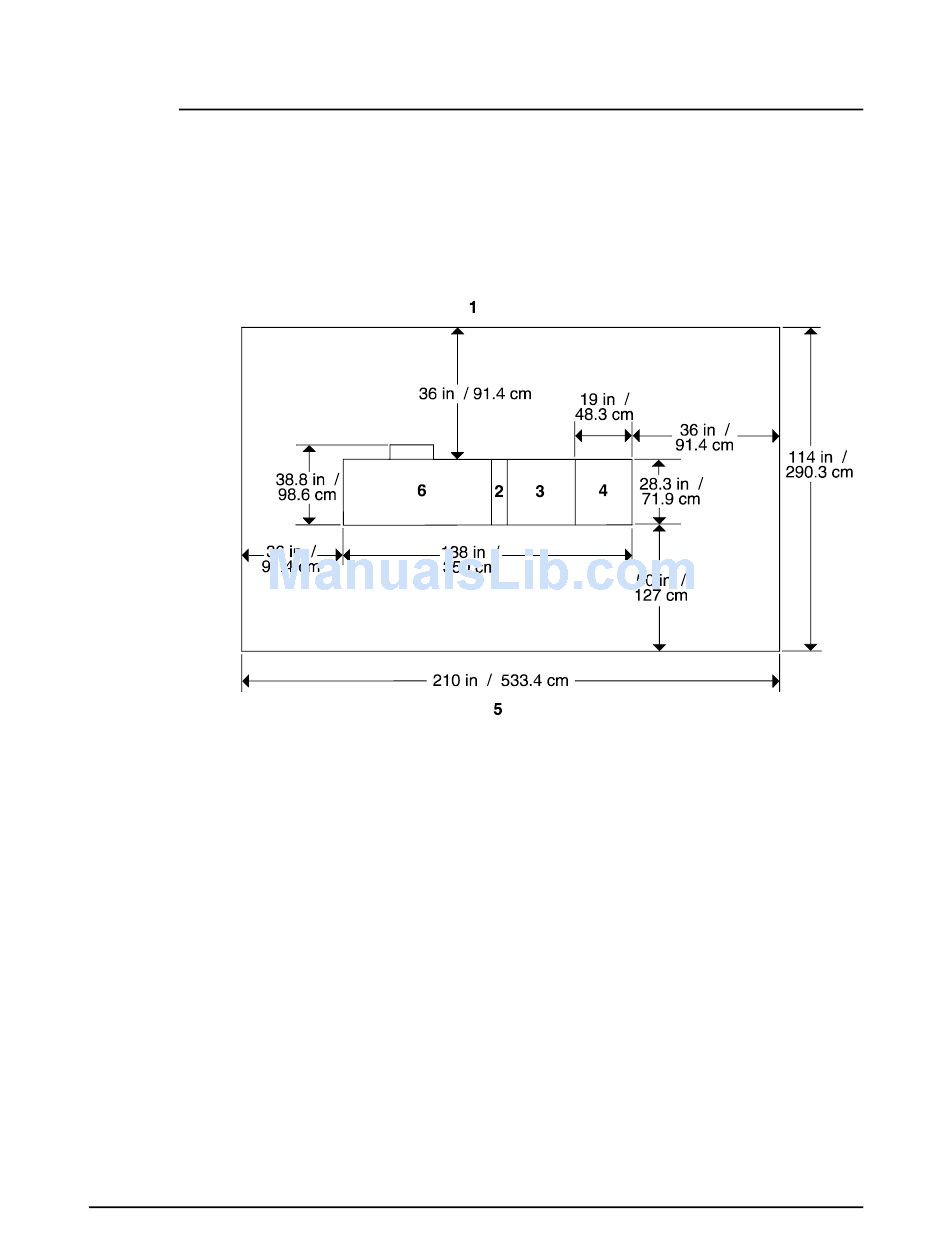

Figure 6-11. 96 printer—inverter feeder/stacker-only
configuration with bypass transport
1. Back of system
2. Inverter
3. Feeder/stacker
4. Bypass transport
5. Front of system
6. Printer
6-17
